1 - NEW BAILEIGH SEMI-AUTOMATIC MITERING HORIZONTAL BANDSAW, MODEL #: BS-24SA-DM

Brand
BAILEIGH

Model
BS-24SA-DM

Type
Saws, Band, Horizontal

Stock #
85657

Condition
New

Year
N/A

Request a Quote
Return Hydraulic
Miter Adjustment Dual Miter Swivel Head
Miter Angle 0 - 60° Left and Right
Motor 5 hp
Capacity Round 90° 18.1 inches
Capacity Square 90° 18.1 inches
Capacity Rectangle 90° 17" x 24"
Capacity Round 45° 17.5 inches
Capacity Round 90°/ 45° / 60° 18" x 17.5" x 11"
Table Height 31.5 inches
Blade Guide Carbide x Roller
Blade Size 1.5" x .051" x 209.84"
Blade Speed 106 - 317 FPM
Descent Control Pressure Assist Hydraulic
Drive Belt x Pulley
Power 220 Volt Three Phase
Shipping Weight 3550 pounds
Shipping Dimensions 111" x 45" x 74"

Equipped With

Features:
This dual-mitering band saw doesn’t sacrifice on capacity. With a hydraulic system, cast iron bow, and steel frame, the BS-24SA-DM is built for decades of efficient production.

  • Cuts 18” round or 15” x 24” rectangle at 90°.
  • Swivel head miters 60° left and right.
  • Accepts a standard 1.5” blade (included). This width makes the cutting fast and accurate.
  • 106 to 317 fpm variable blade speed, allowing for infinite blade speed adjustments.
  • Adjustable speed lets you fine-tune for different materials, like mild steel, bronze, or aluminum.
  • Runs on 220-volt 3-phase power for reliability.
  • Sturdy cast iron vise and bow prevent wobbling and keep cuts accurate.

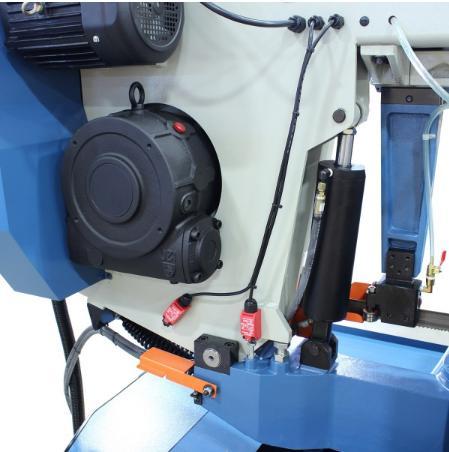

  • Semi-automatic system with hydraulic downfeed speeds up production. You just put the material in place and start the controls. The saw will take care of the rest.
  • Industrial-grade hydraulics open and close the quick-lock vise.
  • Adjustable hydraulic descent pressure helps you achieve faster cut times and longer blade life.
  • You can change the return position of the saw head for faster cycle times between cuts on smaller dimensioned pieces.

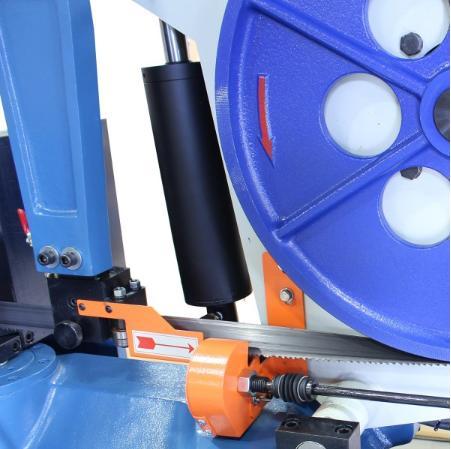

  • Patented blade tension device allows you to set the right tension quickly and easily. Line up the black arrow with the green liquid-filled gauge.
  • Electro-welded steel frame stabilizes the machine, reducing vibrations for many years of accurate cuts.
  • Flood coolant system washes away metal chips and helps prolong blade life.
  • We typically keep all replacement parts in stock for fast deliveries.
  • Covered by a 1-year parts warranty.
  • With lifetime technical support by phone, you can call up our team of experienced reps any time you have a problem or need project advice.
