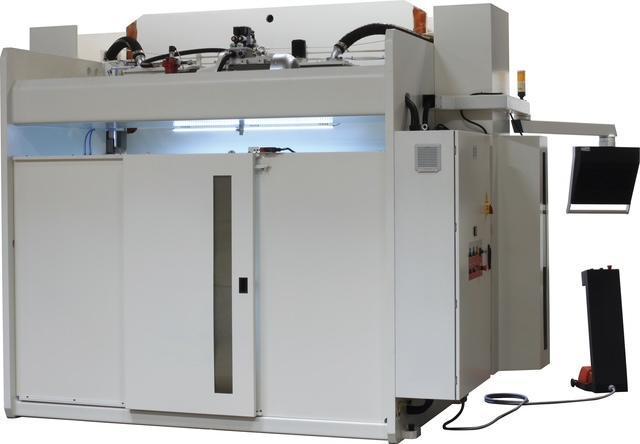

STANDARD FEATURES:

✓ Welded, monoblock steel frame for minimum deflection under load

✓ Y1 / Y2 Dual cylinder down stroking machine with +/- .0004” repeatability

✓ One-piece forged cylinders precision machined and honed for high accuracy

✓ Cylinders are keyed interlocked and bolted to side frame for zero backlash

✓ Bed referenced, precision linear GVI Misure scales assure accurate ram position measurement with repeatability of +/- .0004”

✓ Cartridge valves are mounted in a single, steel manifold block to reduce heat and wear. The simplicity and reduction of pipe connections minimize leaks

✓ Full flow, full pressure in-line filter attached to pump ensures optimum oil cleanliness and trouble-free operation of all hydraulic components

✓ Electrically interlocked, swing away throat guards with space for mounting most brands of safety light guards (see options for light curtain selections)

✓ Electrically interlocked, rear sliding door prevents access to back area

✓ The standard punch holder is a universal American / European top tool holder with side-to-side adjustable wedges. American style clamping bars are available at no charge in lieu of the universal clamp

✓ Wired electrical box with ventilation

✓ Standard controller is the ESA S640

✓ 39-inch AC Servo driven back gauge with two heavy duty finger assemblies

✓ Baykal CNC crowning system

✓ Y1, Y2, X, R, and CNC crowning for a 5 Axis system

✓ Set of front support arms, mounted on a linear guide, running the entire bed length. A hand wheel driven acme screw running thru a brass nut, provides lateral adjustment. Flip stops (2) are provided for front gauging

✓ Dual palm buttons mounted on stand with dual foot pedals & “E” stop

ESA 640 2D CNC CONTROL SYSTEM

The ESA S 640 Touchscreen CNC servo control is a pendant mounted control that is user friendly and easily visible with its large 15” display.  The fill in the blank format makes even the most inexperienced operator proficient in a matter of hours. This control is a multi-axis (up to 6 axis), 2D color display with graphical features.

Some ESA S640 key features are as follows:

*  15.6” TFT LCD display with 1366x768 WSVGA resolution, glare protection

*  Automatic calculation of the bending force limitation based on the max. load capacity of the tools.

*  Automatic calculation of the crowning

*  Automatic calculation of the bending radius curvature for large bend radii

*  Programmable workpiece counter

*  Switch between inch / mm

*  Windows like user interface

*  Network connection / remote maintenance

*  2X RS-232

*  1X Ethernet 10/100 Mbit network connection

*  1X CANopen

*  2X USB 2.0

*  Free seat of offline programming software for Windows

*  Complete bending simulation

BACK GAUGE SYSTEM XR TWO AXIS

Manufactured out of heavy section, tubular steel, the APHS series of machines come equipped with an exceptional quality, XR two axis back gauge.  The dual, back gauge drives are mounted directly to the side frames for rigid stability and are driven by high torque, AC servo motors. A geared belt provides a smooth, quiet transmission of power to each of the (2) two precision ball screws. A set of heavy-duty flip finger assembly’s ride smoothly along the gauge bar via a precision, linear bearing. Vertical, up/down finger movement is accomplished by the CNC controller.  Micro adjustment (in/out.) of each finger is also provided.

            Specification as follows:     X Axis (CNC)                        R Axis (CNC)

            Range                                    39.3 inches                           6.3 inches

            Speed of travel                     826”/min                                567”/min

            Positioning accuracy           +/- .001”                                 +/-.002”

RAM OF THE MACHINE

The ram of the APHS is equipped with American / European style punch holders with wedges allowing for the use of a variety of tools that are available in the marketplace.  The flexibility of this type of tool holders provides you the ultimate in tool style availability. If American style clamping bars are preferred, those are available at no additional charge. Hydraulic clamping options are available as well.

BED OF THE MACHINE

The bed of the APHS is equipped with two front support arms, on linear rails. This provides the operator support during the bending operation.  The bed is also equipped with a Baykal mechanical crowning device.

HYDRAULICS

The large capacity hydraulic tank is made from 5/16” thick plate (8mm).   Piloted, high-capacity pre-fill valves are mounted directly to the top of each piston. When actuated, oil is drawn out the oil tank by the weight of the ram pulling down on the piston rods. This increases speed, reduces electrical consumption, and minimizes the generation of heat. Cartridge valves mounted in a single steel manifold block also reduce heat and maintenance issues.  A sensor that monitors flow pressure in the cartridge type oil filter, notifies the operator when it is time to replace. This hydraulic design is for ease of service, reliability, and reducing downtime.  The cylinder construction consists of Shamban style seals for increased reliability and it is important to note that all cylinders and pistons are manufactured in house to assure the most stringent tolerances.
SAFETY

Baykal press brakes conform to all current ANSI national codes. They are accredited with ISO 9001 certification and all products are CE certified. Regardless, it is the ultimate responsibility of the employer to assess the safety needs and requirements of his or her own equipment as it relates to press usage and local safety codes. (Consult your salesman for light guarding options).  All APHS machines come fully equipped with a double footswitch console.  This includes a footswitch, two hand control, and an emergency stop button. The machine comes equipped with electrically interlocked side and rear guards for optimum protection as well as a front and rear work light for the operator’s convenience.

ELECTRICAL

The electrical box is compact and has ventilation for prevention of heat build up.  All servo amplifiers, Pilz PLC, Motor controls, Fuses, Main electrical disconnect, etc., are in this spacious enclosure.  The machine can be wired for 460/3/60 or 230/3/60.
