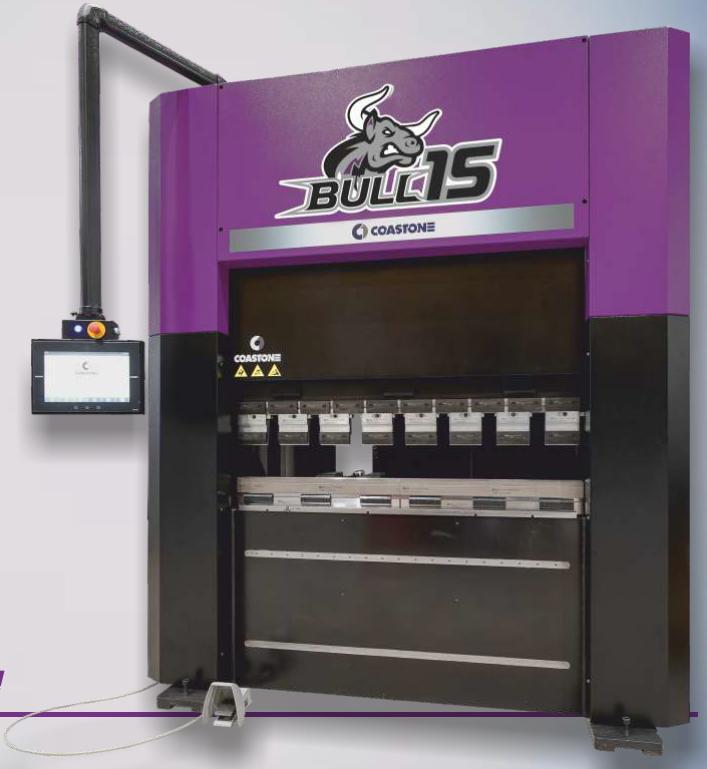

1 – NEW COASTONE 5.25FT., 160 TON. HIGH TONNAGE BRAKE, MODEL #: BULL 15

1 - NEW COASTONE 5.25FT., 160 TON. HIGH TONNAGE BRAKE, MODEL #: BULL 15

Brand
COASTONE

Model
BULL 15

Type
Brakes, Press

Stock #
87042

Condition
New

Year
N/A

Request a Quote

Files

Automec- CoastOne Bull Press Brake Brochure.pdf

SPECIFICATIONS
FILES & ATTACHMENTS

Equipped With

Coastone Bull Series Press Brake Specifications and Technical Data:

Technical Data	DIM	Bull 12	Bull 15
Press Tonnage	kN(US tons)	1000(110)	1500(160)
Motor power	kW	2X5	3X5
Max. bending length (D)	mm	1320	1620
Distance between side frames	mm	1390	1690
Frame width (A)	mm	2200	2500
Frame height (B)	mm	2650	2950
Frame depth (C)	mm	1760	1760
Throat depth	mm	O-frame	O-frame
Table height	mm	900	900
Weight	kg	4500	5500
Daylight	mm	600	600
Y-axis stroke	mm	250	250
Y-axis repeating accuracy	mm	+/- 0.002	+/- 0.002
Y-axis max. working speed	mm/s	10(20*)	10(20*)
Y-axis approach speed	mm/s	40	40
Y-axis return speed	mm/s	40	40
X-axis speed	mm/s	500	500
X-axis accuracy	mm	+/-0.025	+/-0.025
X-axis stroke	mm	600	600
X-axis max. position dimension	mm	750	750
Delta X-axis speed	mm/s	100	100
Delta X-axis accuracy	mm	+/-0.025	+/-0.025
Delta X-Axis stroke	mm	+/-50	+/-50
R-axis speed	nn/s	100	100
R-axis accuracy	mm	+/-0.05	+/-0.05
R-axis stroke	mm	200	200
Z-axis speed	mm/s	1000	1000
Z-axis accuracy	mm	+/-0.5	+/-0.5
Z-axis stroke	mm	120 to 1100	120-1400

Features:

Automec's CoastOne Bull series refers to a line of high-tonnage, all-electric, servo-driven press brakes known for precision, efficiency, and lower power consumption compared to hydraulic models. These machines feature an O-frame construction and Taylor-made ball screws for superior accuracy in metal bending and forming, offering a precise and compact solution for industrial applications, according to the official Automec website.

Key Characteristics of the CoastOne Bull Series:

All-Electric Drive:

Uses servo-driven ball screw technology instead of hydraulic systems, resulting in minimal power consumption (1-3kW average) and no need for hydraulic fluid changes.
High Precision:

The servo-driven ball screw system and high-precision O-frame construction deliver excellent accuracy and repeatability in bending operations.
Efficient Operation:

The electric drive system provides precise control over speed and force, leading to more efficient metal forming.
Reduced Maintenance:

The absence of a hydraulic system means fewer components to maintain, leading to lower costs and a longer lifespan.
Compact Design:

The closed O-frame construction allows for high tonnage in a smaller footprint, making it a suitable choice for demanding environments.

Equipped With:

Standard LazerSafe System (Equipped on all Machines)

Optional Features:

* Independent Finger Programmability (Left to Right): $7,750.00
Delivery:
Subject to Stock
