TECHNICAL SPECIFICATIONS

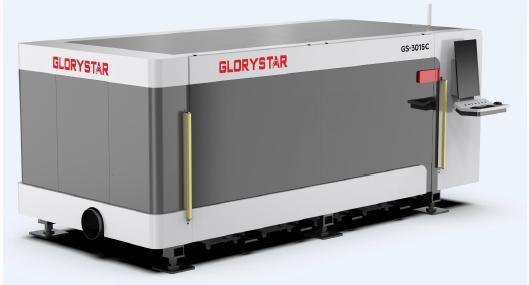

• MODEL: GS-3015C

• MACHINE TYPE: SHEET LASER CUTTER

• LASER POWER: 6KW

• WORKING AREA: 10 X 5 FT (3000 X 1500 MM)

• X/Y AXIS POSITIONING ACCURACY: ≤0.03 MM/M (≤ 0.0012 IN/FT)

• X/Y AXIS REPOSITIONING ACCURACY: ≤±0.02 MM (≤±0.0008 IN)

• Z-AXIS TRAVEL: 85 MM (3.3 IN)

• MAXIMUM COMPOSITE POSITIONING VELOCITY: 140 M/MIN (5511.8 IPM)

• MAXIMUM COMPOSITE ACCELERATION: 1.5G

• MAXIMUM CUTTING ACCELERATION: 1.2G

• MAXIMUM CUTTING THICKNESS: ≤30 MM (≤1.18 IN)

• CUTTING SLIT WIDTH: 0.1MM - 0.5MM (0.0004 - 0.020 IN)

• TRANSMISSION MODE: RACK AND PINION DUAL DRIVE

• SCREEN SIZE: 27" LCD

• POWER REQUIREMENTS: AC380V, 50/60HZ; 3P+N+PE

• TOTAL POWER PROTECTION LEVEL: IP51

KEY COMPONENTS AND BRANDS

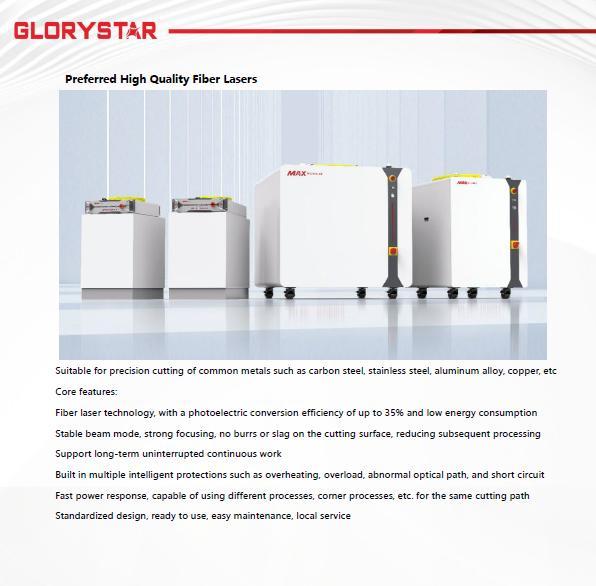

• LASER SOURCE: IPG/MAX

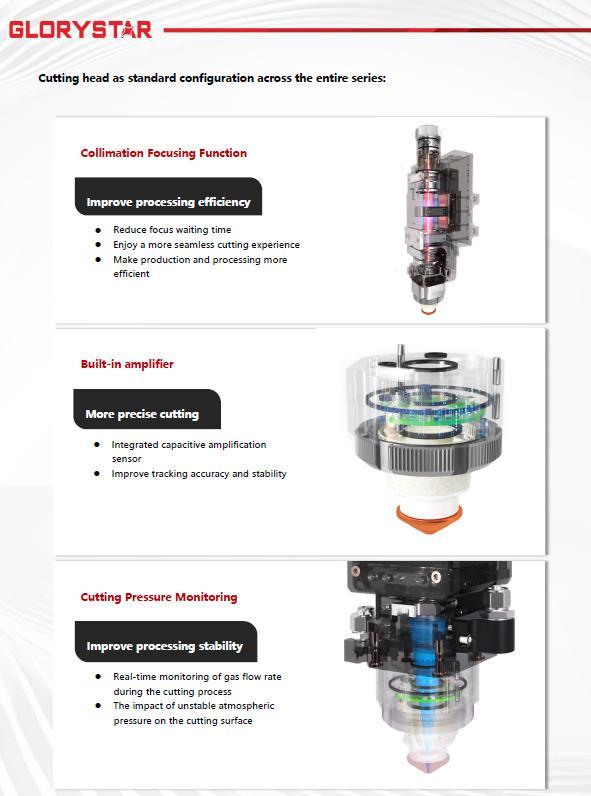

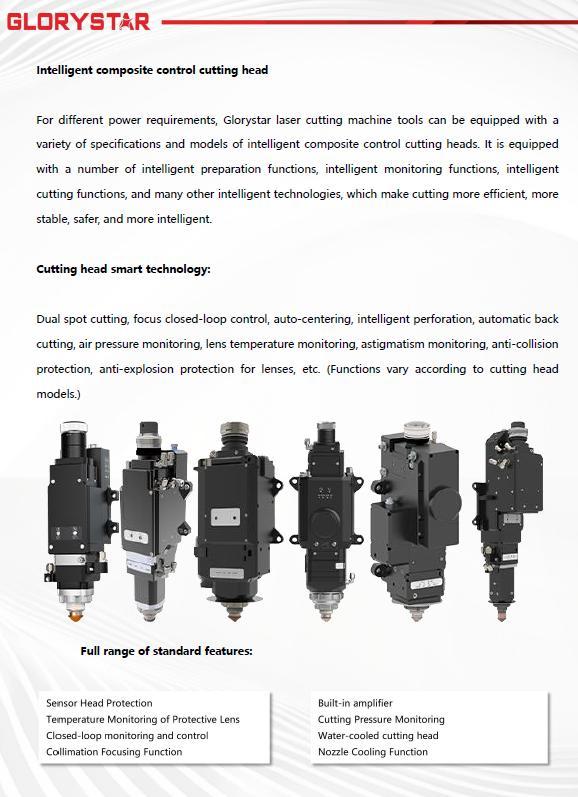

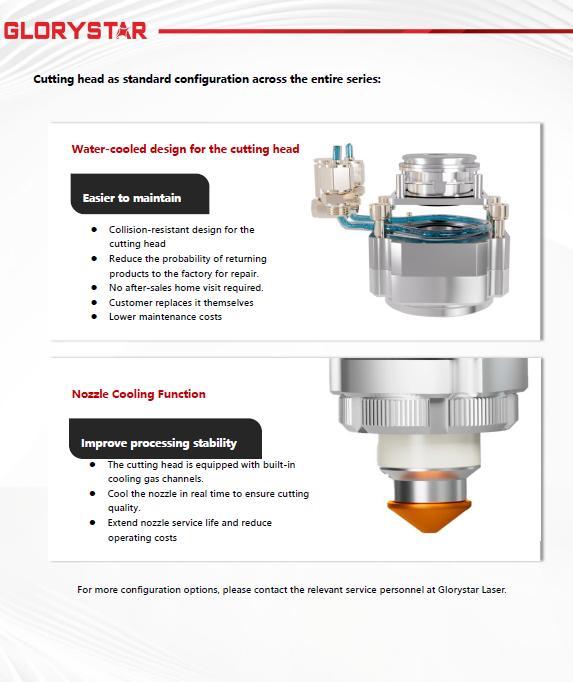

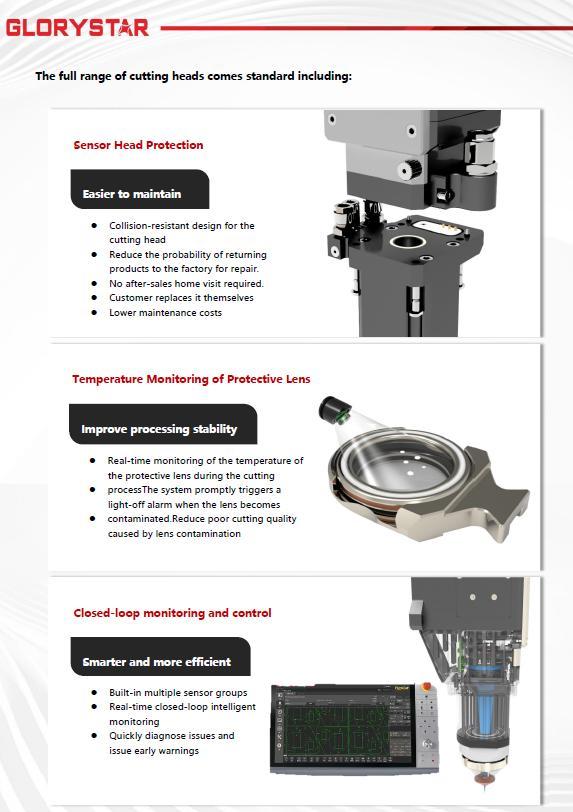

• CUTTING HEAD: BLT (BOCI) / GLORYSTAR

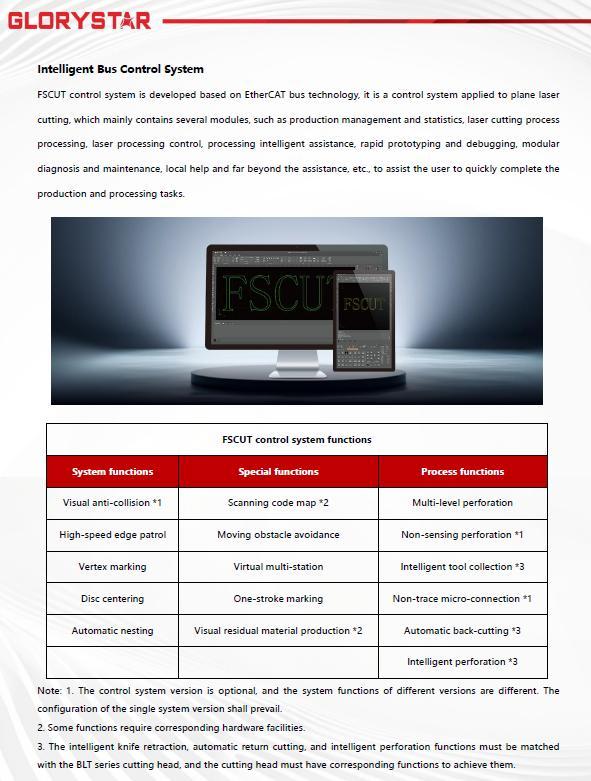

• CONTROL SYSTEM: FSCUT (BOCHU) / GLORYSTAR

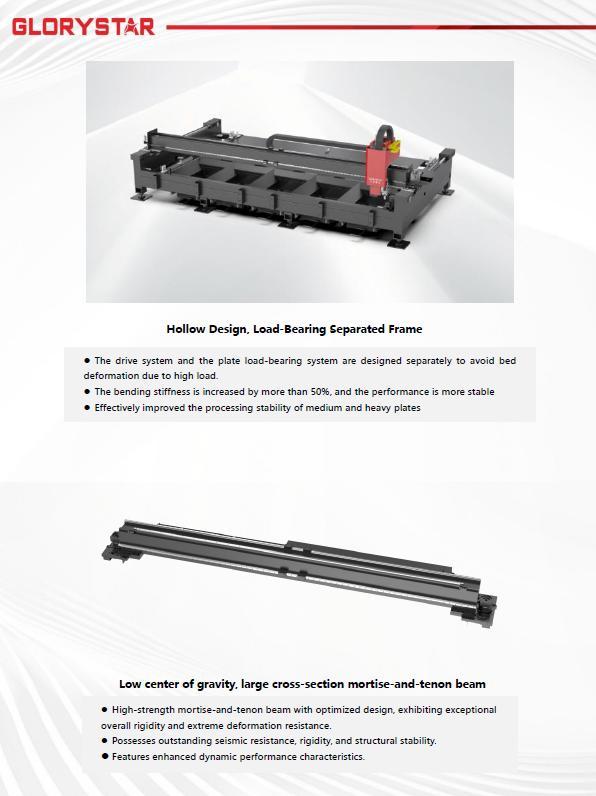

• MACHINE BED: GLORYSTAR

• LINEAR GUIDE RAILS: DTX OR EQUIVALENT BRAND

• PRECISION BALL SCREW: HIWIN



  PRODUCT CONFIGURATION

  • FIBER LASER CUTTING MACHINE WITH STANDARD ACCESSORIES (FDA STANDARD)

  • LASER SOURCE: 1 SET (IPG/MAX)

  • CUTTING HEAD: 1 SET (BLT/BOCI OR GLORYSTAR)

  • CONTROL SYSTEM: 1 SET (FSCUT/BOCHU OR GLORYSTAR)

  • MACHINE BED: 1 SET (GLORYSTAR)

  • HIGH PRECISION RACK FOR X/Y AXIS: 3 SETS (GUDEL, SVAROG, OR EQUIVALENT)

  • LINEAR GUIDE RAILS: 3 SETS (DTX OR EQUIVALENT)

  • X/Y/Z AXIS HIGH-PRECISION PLANETARY REDUCERS: 3 SETS (TECHMECH, DESBOER, OR EQUIVALENT)

  • HIGH-SPEED MOTORS AND DRIVES: 4 SETS (GLORYSTAR CUSTOM)

  • PRECISION BALL SCREW: 1 SET (HIWIN)

  • HIGH-SPEED FLEXIBLE CABLES AND HIGH-SPEED DRAG CHAINS: 3 SETS

  • ELECTRICALLY CONTROLLED PROPORTIONAL VALVE: 1 SET (GLORYSTAR, SMC, OR EQUIVALENT)

  • CHILLER: 1 SET (S&A/TONGFEI)

  • SLAG HOPPER DEVICE: 1 SET (GLORYSTAR)

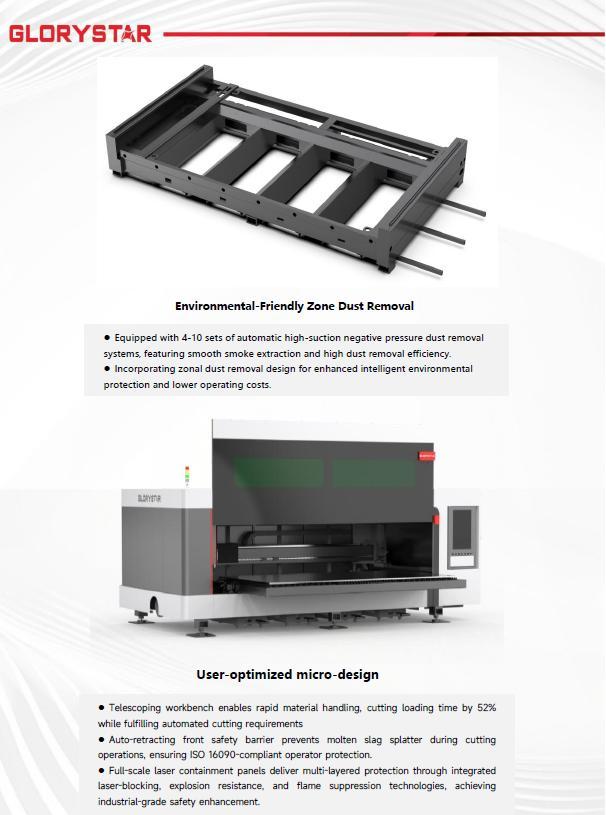

  • DUST CLEANER / DUST REMOVAL EQUIPMENT: 1 SET

  • AIR COMPRESSOR: 1 SET

  • TRANSFORMER: 1 SET

  • VOLTAGE STABILIZER: 1 SET

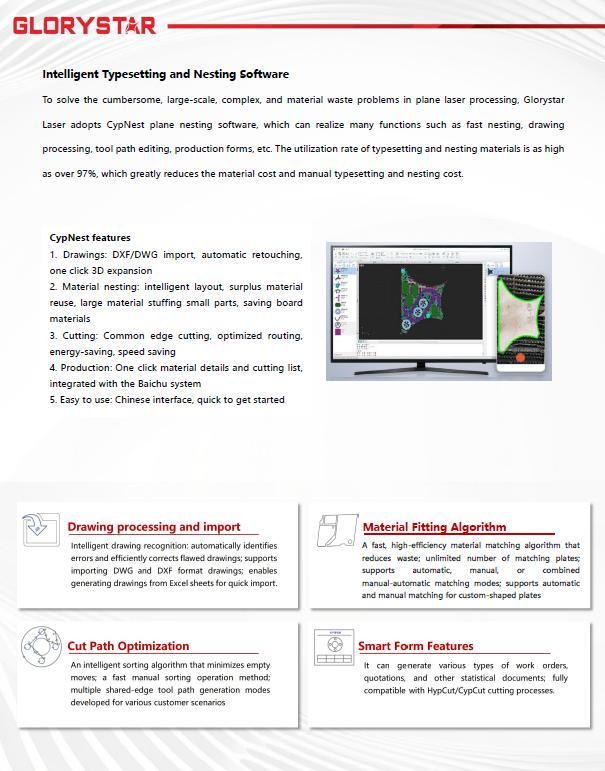

  • SPECIALIZED LASER CUTTING NESTING SOFTWARE: 1 SET

  • OPERATING INSTRUCTIONS, ELECTRICAL WIRING, AND SCHEMATIC DIAGRAMS: 1 COPY EACH


    Installation & Training:On-site installation and training services are available.

    Service Policy:Installation, commissioning and training labor are free of charge within 12 months after shipment.

    After 12 months:Option A – All-inclusive service:USD 650 / person / day (including labor, travel, accommodation, and

    transportation)

    Option B – Basic service:USD 400 / person / day,(Buyer shall provide travel, accommodation, and local transportation)

    11. Warranty:Warranty provided as per standard warranty policy:

    ≤6kW machines:2 years warranty for machine and laser source

    ≥12kW machines:3 years warranty for machine and laser source

    During warranty period:

    Year 1: free labor and travel expenses+ key components (twice a year)

    Year 2-3: free key components, labor and travel expenses charged per standard rate

    Consumables are not covered under warranty.

    Service SupportRemote technical support available within 24 hours，On-site support available upon request.

    Spare parts and service support available from China and U.S.

    Taxes :Prices do not include local sales tax unless otherwise specified.

    Notes:Technical specifications and configuration are subject to final technical confirmation and agreement
