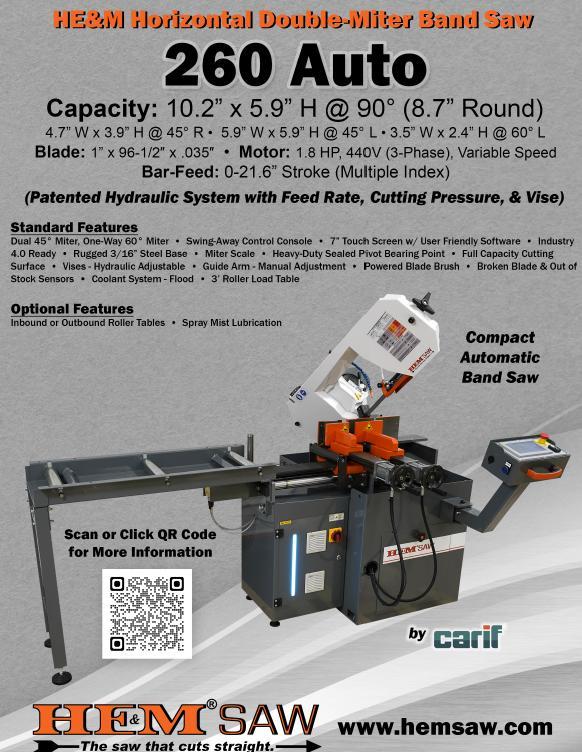

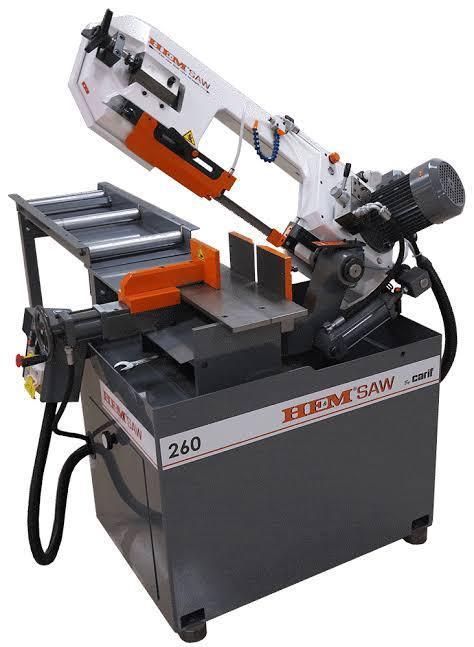

1 – NEW HE&M SAW 260 AUTO HORIZONTAL BAND SAW, AUTOMATIC OPERATION, 10.2″ CAPACITY

1 - NEW HE&M SAW 260 AUTO HORIZONTAL BAND SAW, AUTOMATIC OPERATION, 10.2" CAPACITY

Brand
HE&M

Model
260 AUTO

Type
Saws, Band, Horizontal

Stock #
87472

Condition
New

Year
N/A

Request a Quote

SPECIFICATIONS
FILES & ATTACHMENTS

Capacity (Rectangular)	10.2 x 5.9
Capacity (Round)	8.7 inches
Capacity (45° Angle)	5.9 x 5.9
Capacity (45° Angle)	4.7 x 3.9
Capacity (45° Angle)	3.5 x 2.4
Blade Size	1 x 96.5 x 0.035
Blade Motor	1.8
Standard Voltage	440
Weight	1400 pounds

Equipped With

SPECIFICATIONS

CAPACITY

• 10.2" W X 5.9" H AT 90°

• 8.7" ROUND AT 90°

• 5.9" W X 5.9" H AT 45° LEFT

• 4.7" W X 3.9" H AT 45° RIGHT

• 3.5" W X 2.4" H AT 60° LEFT

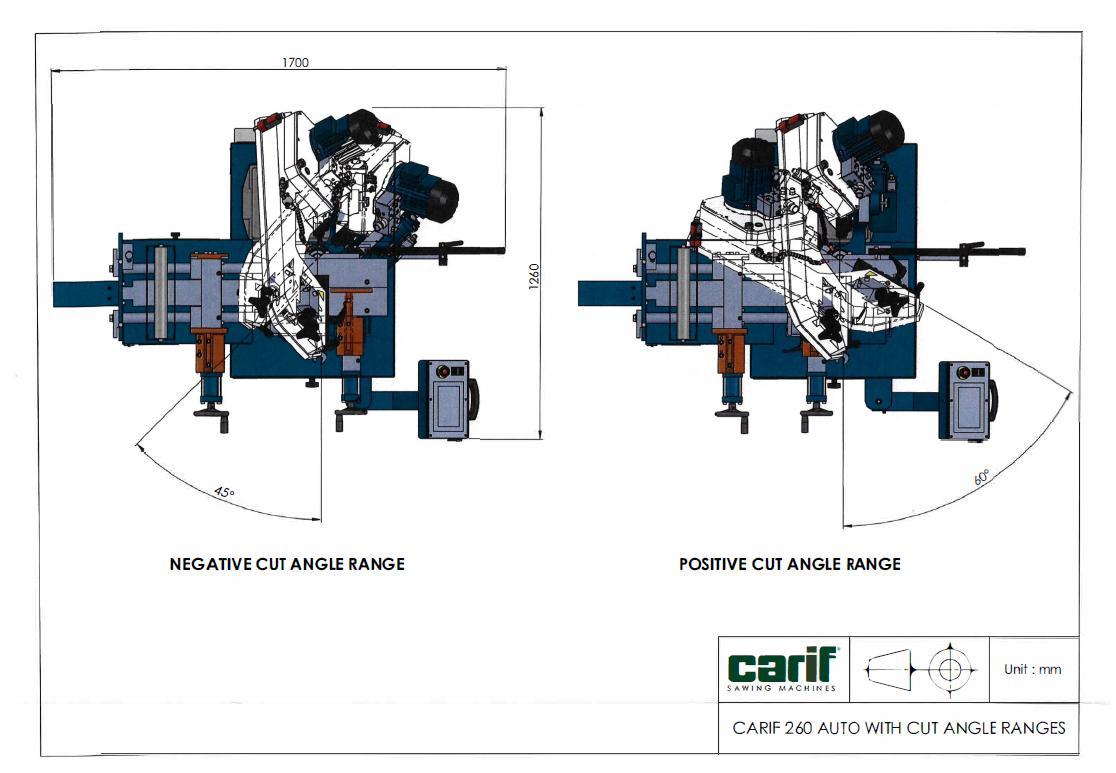

MITER CAPACITY

• DUAL 45° MITER

• ONE-WAY 60° MITER

• MANUAL SAW HEAD POSITIONING WITH LOCKING SYSTEM

BLADE SPECIFICATIONS

• 1" X 96-1/2" X .035" BLADE

• 1.8 HP VARIABLE-SPEED BLADE DRIVE

ELECTRICAL

• 440 VOLT

• 3 PHASE

CONTROL SYSTEM

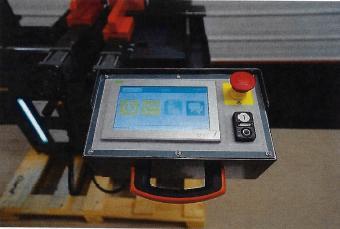

• SWING-AWAY CONTROL CONSOLE

• 7" TOUCHSCREEN DISPLAY

• INDUSTRY 4.0 READY

STANDARD FEATURES

• AUTOMATIC OPERATION

• 0-21.6" STROKE MULTIPLE-INDEX BAR FEED

• PATENTED HYDRAULIC SYSTEM

• MANUAL ADJUST HYDRAULIC STROKE VISES

• ADJUSTABLE FEED RATE

• ADJUSTABLE CUTTING PRESSURE

• RUGGED 3/16" STEEL BASE

• HEAVY-DUTY SEALED PIVOT BEARING POINT

• FULL CAPACITY CUTTING SURFACE

• MANUAL ADJUSTABLE BLADE GUIDE

• EASY BLADE TENSIONING

• HARD-STOP MEASURING DEVICE

• EMERGENCY STOP

• BROKEN BLADE SENSOR

• OUT-OF-STOCK SENSOR

• LARGE CHIP CONTAINER

• FLOOD COOLANT SYSTEM

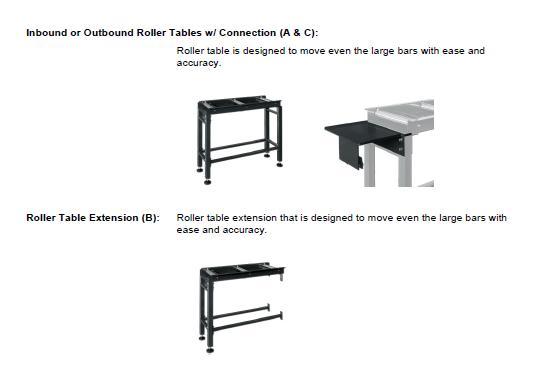

• 3' ROLLER LOAD TABLE INCLUDED

WEIGHT

• APPROXIMATELY 1,400 LBS.
