SPECIFICATIONS:

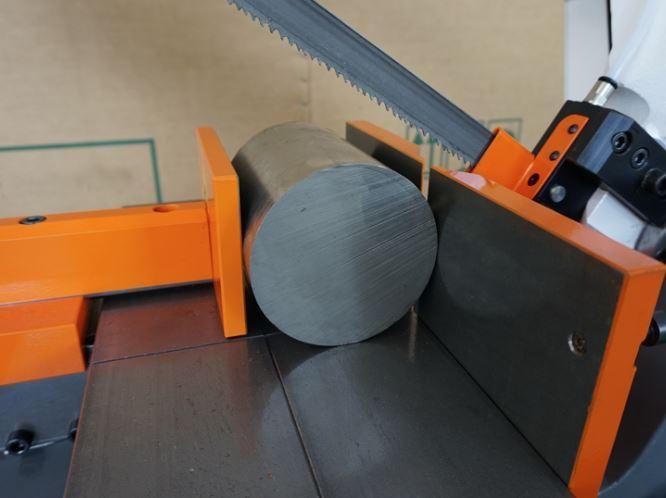

CAPACITY ------------- 12.6 in W X 8.6 in H @ 90° (10.8 in ROUND)
                  ------------- 7.3 in W X 8.7 in H @ 45° (L)
                  ------------- 7.9 in W X 3.9 in H @ 45° (R)
                  ------------- 4.7 in W X 8.7 in H @ 60° (L)
BLADE ---------------- 1 in X 119 in X .035 in
MOTOR ---------------- 3 HP 440V (3-PHASE) VARIABLE SPEED
              ---------------- 1.8 HP 230V (3-PHASE) 2 SPEED
OPERATION ------------ SEMI-AUTOMATIC
WEIGHT --------------- 1,500 LBS.
FEATURES:
DUAL 45° MITER / ONE-WAY 60° MITER
MOVEABLE CONTROL CONSOLE W/ 40 in UMBILICAL
PATENTED HYDRAULIC SYSTEM
ADJUSTABLE FEED RATE & CUTTING PRESSURE
MANUAL ADJUST, HYDRAULIC STROKE VISE
RUGGED 3/16 in STEEL BASE

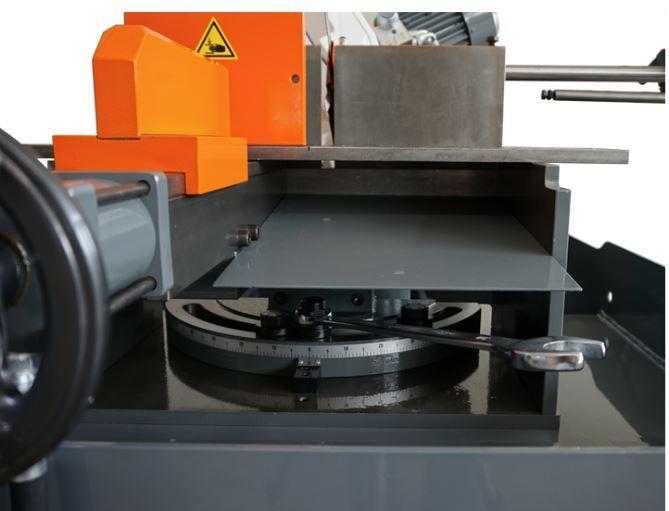

MITER SCALE

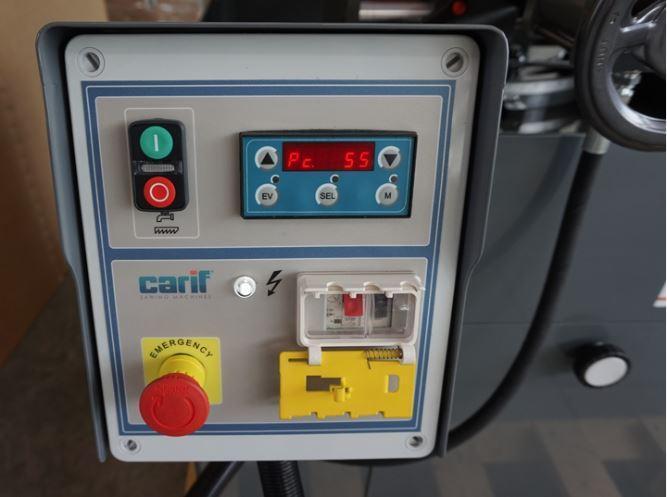

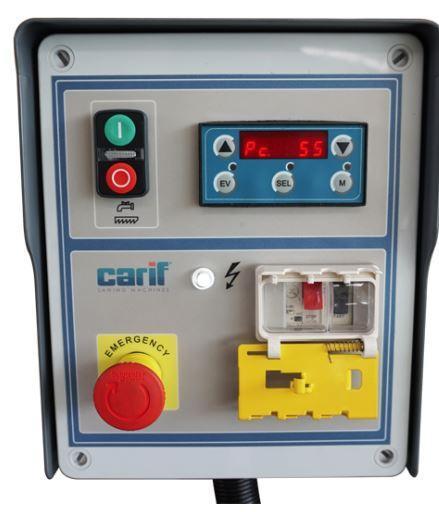

BLADE SPEED & HEIGHT SET FROM CONTROL PANEL
PART COUNTER ON CONTROL PANEL
HEAVY-DUTY SEALED PIVOT BEARING POINT

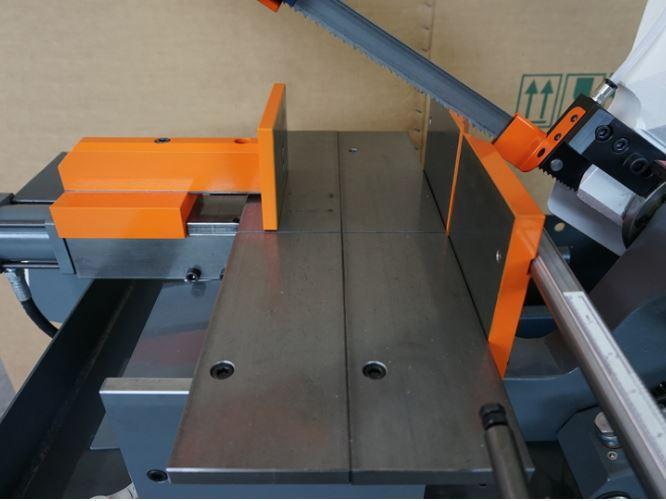

FULL CAPACITY CUTTING SURFACE

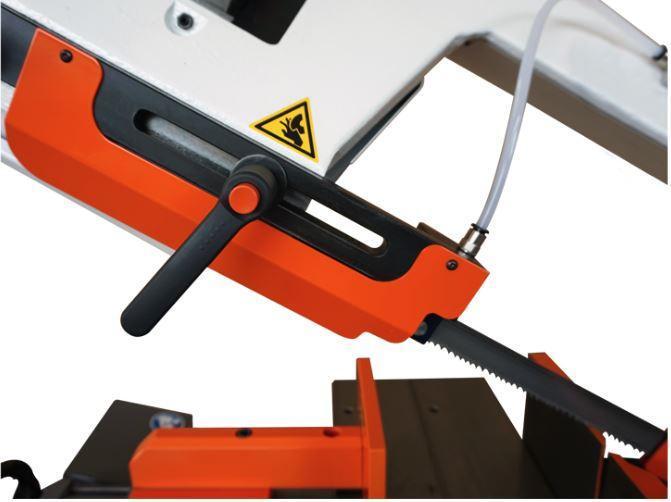

MANUAL ADJUSTABLE BLADE GUIDE

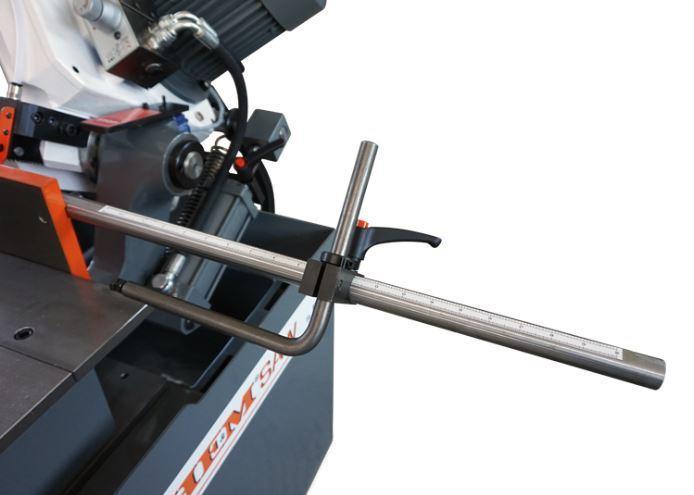

HARD-STOP MEASURING DEVICE
EMERGENCY STOP
LARGE CHIP CONTAINER

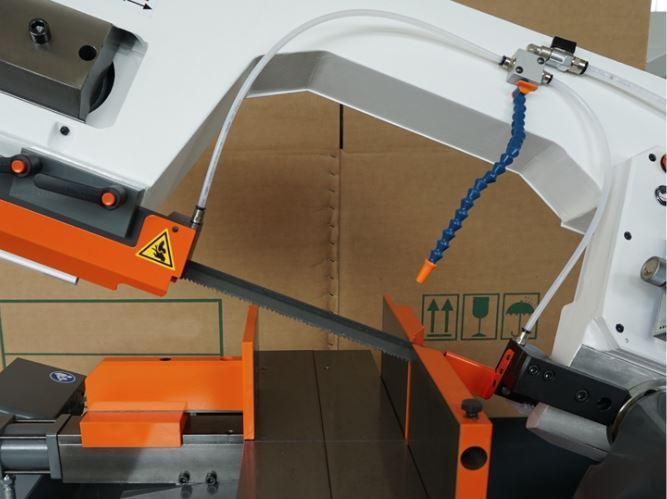

FLOOD COOLANT SYSTEM
**CUSTOMER MUST CHOOSE VOLTAGE**
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:

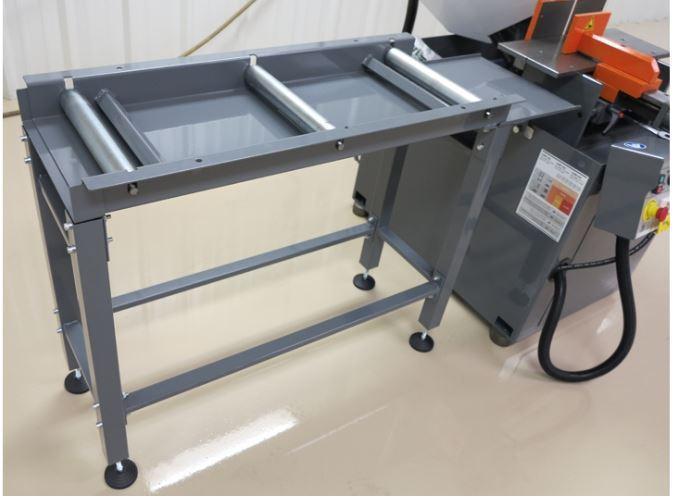

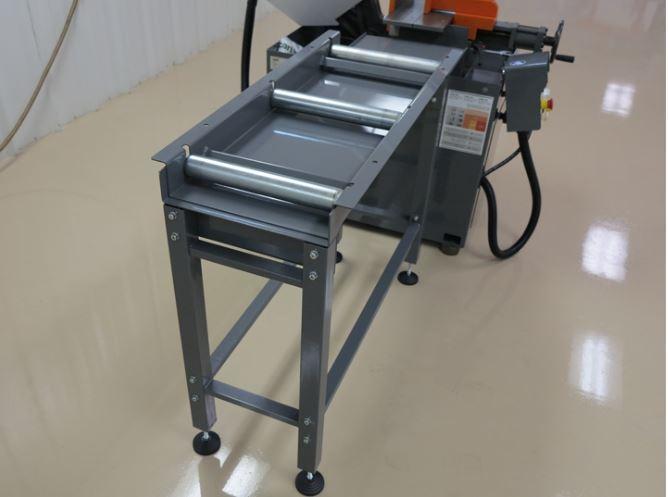

ROLLER TABLE EXTENSION -------------------------- $498.00
INBOUND OR OUTBOUND ROLLER TABLES --------------- $664.00
SAW BLADES ------------------------------------------------ $51.00
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
