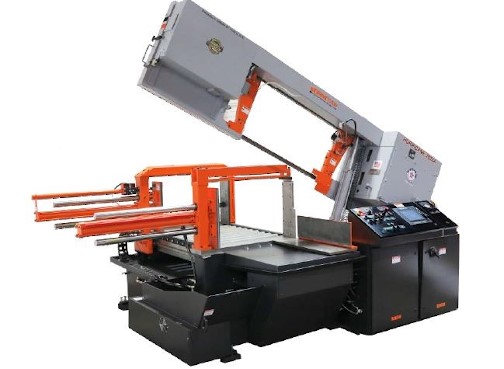

| Saw | Pivot Style, Mitering Base, Horizontal Production Band Saw |
| Saw Capacity | 30” W x 20" H |
| Miter | 20” W x 20" H @ 45˚ (L) / 13” W x 20" H @ 60˚ (L) (Miter in one direction only) |
| Programmable Miter | Powered miter for saw arm with programmable miter for automatic mitering on the same part for two different cuts. The powered miter moves the arm to any angle up to 60 degrees in a forward only movement of 90 degrees. Angle readout miter controls are displayed on the control console touch screen. The arm miters automatically during programmed mitering sequences and power miter for manual cutting. |
| Blade Size | 1-1/2”” x 20’6” x .050” THK |
| Blade Drive | 10 HP (Variable Frequency Drive), 220V (48 amps)/3PH or 440V (24 amps)/3PH Electrical Motor Requirement. 220V or 440V AC to be specified by the customer at the time of order. 1800 rpm, ball bearing TFC (***The customer must ground this saw at the machine with an earth ground rod installed prior to installation for the warranty to be in effect.***) |
| Blade Speed | Infinitely variable speed drive controlled through a variable frequency controller and speed is changed from readout on console’s touch screen. |
| Hydraulics | 5 HP Hydraulic System |
| Operator Control | Control Console is located on front of saw, with 8" Omron touch screen controls, for operator convenience. Saw may be operated in semi-automatic mode or fully-automatic mode. |
| Touch Screen | The touch screen display provides easy to use menu navigation to program specific automatic jobs, nested job operations as well as manual functions and programming information required for each job. |
| Automatic 0-34” Stroke Hydraulic Cylinder Bar-Feed (Multiple Index) | All Function Control with capability to feed lengths automatically until saw is out of stock or to a pre-determined number on the touch screen counter. Material Jogging permits incremental control of the shuttle vise to aid in positioning the material for pre-marked cuts. |
| Discharge Table | 24” Solid Discharge Table |
| Main & Feed Vise | The vises are full-stroking with adjustable clamping pressure. Vises automatically function in automatic mode. |
| Cutting Pressure | Adjustable cutting pressure/force to control the weight to be placed on the teeth of the blade. |
| Cutting Rate | Adjustable to regulate the saw arm traverse rate. This is a necessary feature to cut tubing at high rates without losing saw teeth. |
| Carbide Blade Guides | Side and back carbides are flat for maximum blade support |
| Blade Chip Brush | Powered brush driven by an assembly mounted on the drive wheel removes chips that may become lodged in the blade gullets. |
| Powered Guide Arm | Powered, moveable guide arm controlled from the console. |
| Powered Blade Tension | Assures and maintains proper blade tension at all times during the cutting process. |
| Built-In Coolant System | Totally built-in coolant system, with high pressure sealed coolant pump. Coolant is dispensed through fixed guide arm. The saw is fully panned to return coolant to the tank. |
| Wash-Down Hose | A cutting fluid clean-up hose is provided for machine wash down. |
| Chip Removal | A chip auger removes chips from the cutting are to a bin. |
| Cut Watcher® System | A system that monitors the cut for squareness to a pre-set deviation value. The system shuts down the saw when the pre-set value is exceeded. (PATENT: 5,070,751) |
| Blade Break Switch | Saw will automatically shut off if the blade breaks |
| Out-of-Stock Switch | The saw shuts off when the feed vise runs out of material. |
| Safety Key-Lock | The safety Key-Lock is used to lock out band motor operation while changing the blade. WARNING! The Safety Lockout Key does NOT turn off all power to the saw. To shut down all power, the main disconnect must be turned off. |
| Safety Guards | Machine is equipped with blade guards and awareness barriers for safety purposes. |
