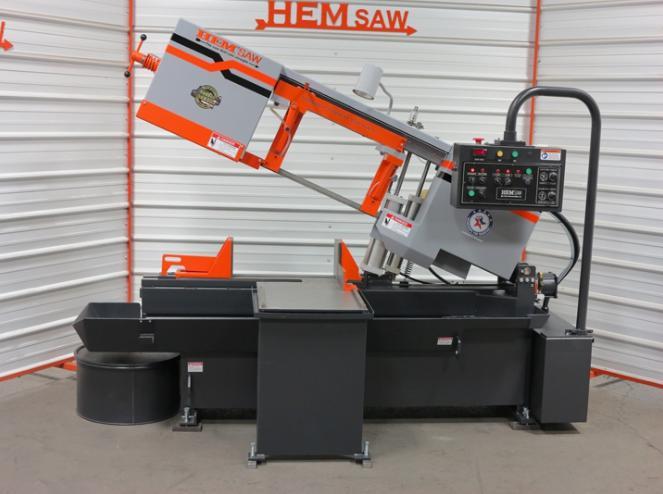

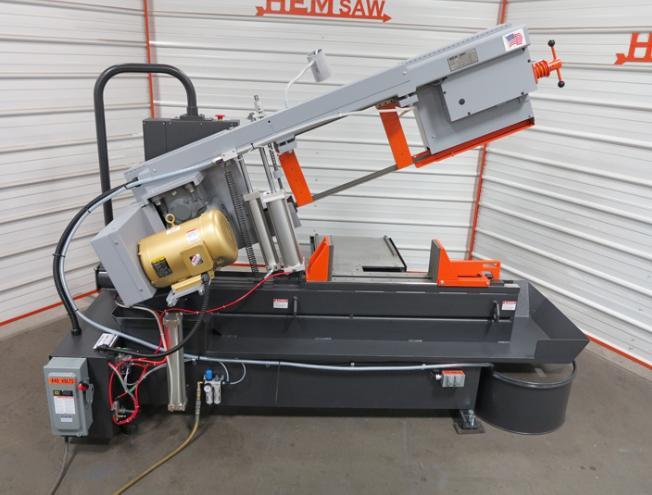

(1) NEW HEMSAW SEMI-AUTOMATIC BANDSAW, MODEL #: H105M

SPECIFICATIONS
FILES & ATTACHMENTS

Saw	Pivot Style, Horizontal Band Saw
Saw Capacity	16" W x 12.5" H or 15.75" W x 14" H (14" Square • 14" Round)
Arm Lift	Powered from control console.
Blade Size	1-1/4” x 15’0” x .042” THK
Blade Drive	7.5 HP, 220V (25 amps)/3PH or 440V (13 amps)/3PH Electrical Motor Requirement. 220V or 440V AC to be specified by the customer at the time of order. 1800 rpm, ball bearing TFC (The customer must ground this saw at the machine with an earth ground rod installed prior to installation for the warranty to be in effect.)
Blade Speed	Infinitely variable speed drive controlled through a variable frequency controller and speed is changed from LED readout on console.
Air Requirements	85 PSI, 3 – 5 CFM, equipped with air filter/lubricator

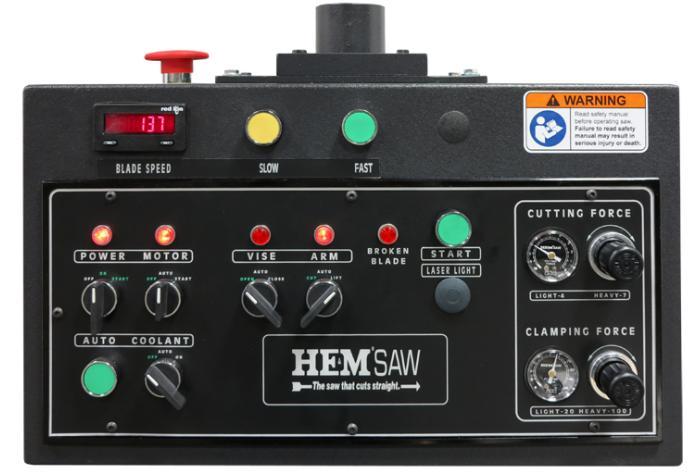

Operator Control	Control Console is located in an Easy View style control on a gooseneck mount. The Control Console and gooseneck can each be pivoted for operator convenience. Saw may be operated in semi-automatic mode.
Discharge Table	24” Solid Discharge Table for easier material handling after the cut. The table is 24” in length and standard as solid. The table is bolted onto the machine base and is fully coolant panned to return coolant to the machine.
Adjustable Main Vise	Main-clamping vise is air powered and non-cocking.
Vise Clamping Pressure	The operator controls the variable vise pressure, adjustable to clamp various metals.
Cutting Pressure	Adjustable cutting pressure/force to control the weight to be placed on the teeth of the blade.
Cutting Rate	Adjustable to regulate the saw arm traverse rate. This is a necessary feature to cut tubing at high rates without losing saw teeth.
Carbide Blade Guides	Side and back carbides are flat for maximum blade support.
Blade Chip Brush	Powered brush driven by an assembly mounted on the drive wheel removes chips that may become lodged in the blade gullets.
Hold-Down Fixture	A hold down fixture that mounts on the main vise for use when cutting more than one piece at a time.
Built-In Coolant System	Machine is set up for flood-style coolant system with coolant dispensed through the guide arms. The saw is fully panned to return coolant to the tank.
Wash-Down Hose	A cutting fluid clean-up hose is provided for machine wash down.
Blade Break Switch	Saw will automatically shut off if the blade breaks.
Safety Guards	Machine is equipped with blade guards and awareness barriers for safety purposes.

Equipped With

EQUIPPED WITH:

Easy View Control Console
Built-In Coolant System w/ Wash-Down Hose

24″ Solid Discharge Table – Bolts to Saw
Air Machine (85 PSI, 4-6 CFM Minimum Air Requirement)

Adjustable Main Vise w/Variable Vise Pressure
220V(25 amps)/3PH or 440V(13 amps)/3PH Electrical Motor Requirement Hold Down Fixture * Amps increase w/added options – This is Not a Dual Voltage Machine

Manual Guide Arm Adjustment

Variable Blade Speed w/ LED Readout

Carbide Blade Guides

Manual Blade Tension

Adjustable Cuting Rate & Cutting Pressure
NOTES:

SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:

Spray Mist Lubrication: Spray mist lubrication system with a selector switch located on control console to select and to switch back and forth from flood

coolant or spray mist lubrication. Price: $1,395.00

Outboard Powered Vise on Discharge: Holds the material on the discharge side of the blade for “back trimming” and keeps the parts from closing during the cut. It provides an additional clamping surface and works in conjunction with the main saw vise but can be disconnected by a controlvalve. The use of this vise will decrease “burr” on the cut material. Price: $4,595.00

Reduced Capacity Top Clamps: Top Clamp for bundle cutting Price: $2,195.00 – Main Vise (Capacity 15” W x 10” H)

Powered Blade Tension: Assures and maintains proper blade tension at all times during the

cutting process. Price: $1,495.00

Chip Auger: Removes chips from the cutting area into an easy-to-empty container. Chips and coolant are separated into two different tanks. Price: $3,295.00

Cut Watcher® System: A system that monitors the cut for squareness to a pre-set deviation value. The system shuts down the saw when the pre-set value is exceeded. This is a must option for production cutting. (PATENT: 5,070,751) Price: $3,795.00

Light Clamping Pressure: Allows the machine to clamp thin wall tubing or other delicate materials with less clamping pressure reducing the possibility of

deforming them. Price: $295.00

Single-Phase Voltage: Larger frequency drive is added to make voltage on saw single-phase instead of 3-phase. Price: $795.00

Stock Table: Heavy Duty roller table, 24” centers, non-coolant panned and adjustable to be “trued-in” with the saw. Roller table is designed to move even the large bars with ease and accuracy. Price: 5’ x 18” Idle - $2,595.00 10’ x 18” Idle - $3,995.00

Load Table: Extra Heavy Duty roller table, 14” centers, totally coolant panned and adjustable to be “trued-in” with the saw. Table is attached to the saw.

Price: 10’ x 18” Idle - $6,395.00

DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
