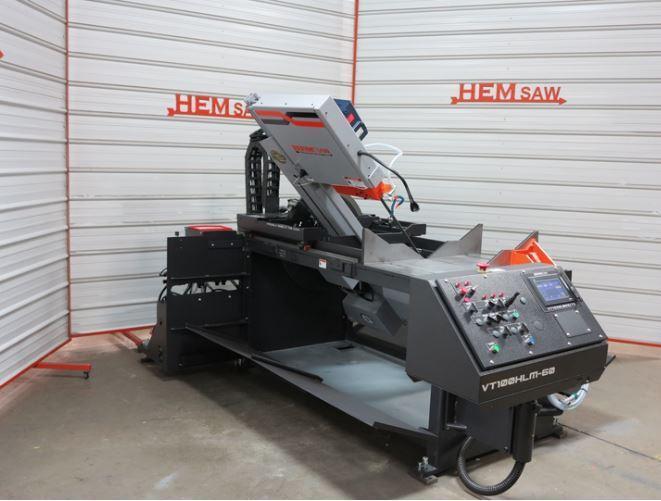

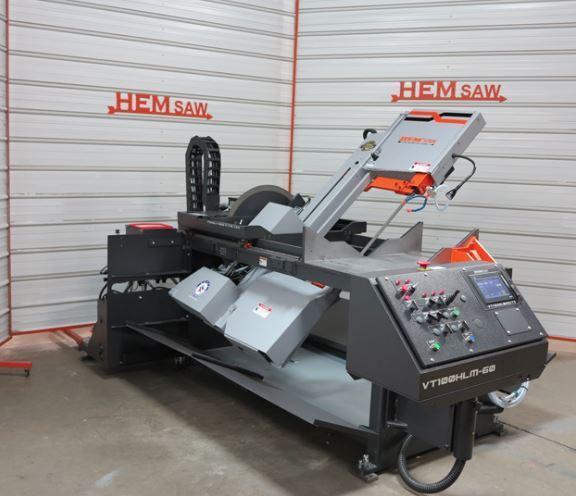

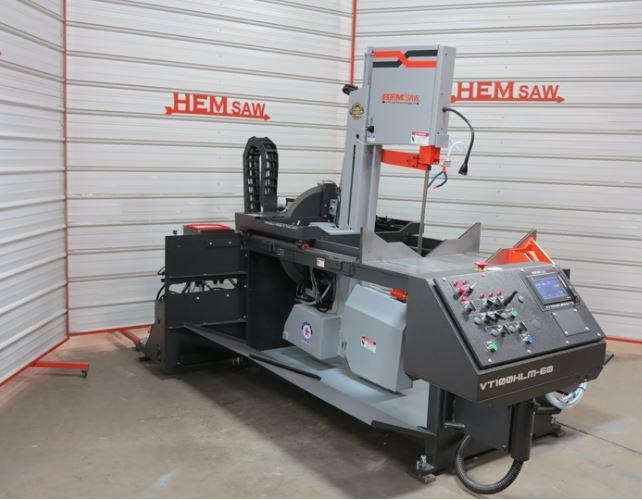

| Saw | Vertical Tilt-Frame Production Band Saw |
| Saw Capacity | 18" W x 20.75" H @ 90˚ (22-1/4 w/o cant) |
| Miter | 18" W x 14.25" H @ 45˚ (L) (15.25” w/o cant) / 18" W x 14" H @ 45˚ (R) (15.125” w/o cant) / 18" W x 9.75" H @ 60˚ (L) (10.25” w/o cant) / 18" W x 6.75" H @ 60˚ (R) (7.25” w/o cant) |
| Blade Size | 1-1/4" x 15'6" x .042” THK |
| Arm Cant | 4 degree – can be removed by adjusting arm |
| Blade Drive | 5 HP, 220V (28 amps)/3PH or 440V (14 amps)/3PH Electrical Motor Requirement. / 220V or 440V AC to be specified by the customer at the time of order. 1800 rpm, ball bearing TFC |
| Blade Speed | Infinitely variable speed drive controlled through a variable frequency controller and speed is changed from readout on console’s touch screen. |
| Hydraulics | 2 HP Hydraulic System |

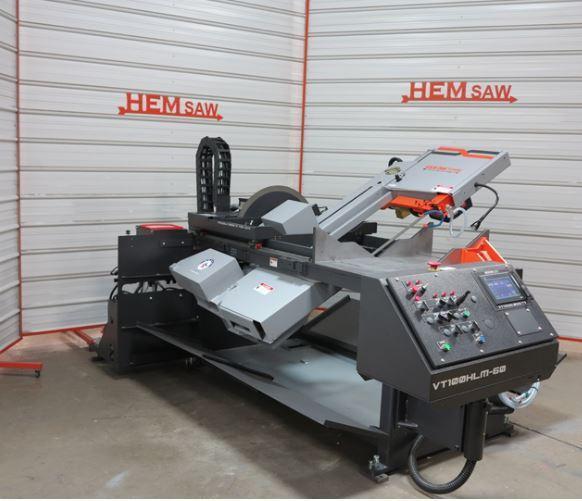

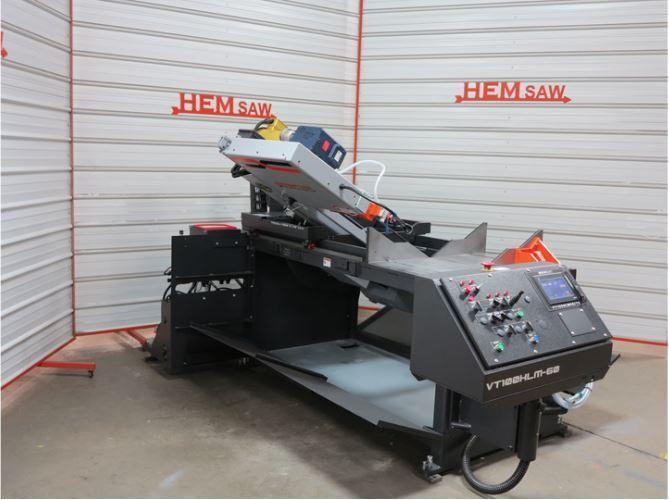

| Power Programmable Tilt | The required angle can be entered on the console and the saw head will travel to that position and lock in place. The angle readout is on the touch screen. |

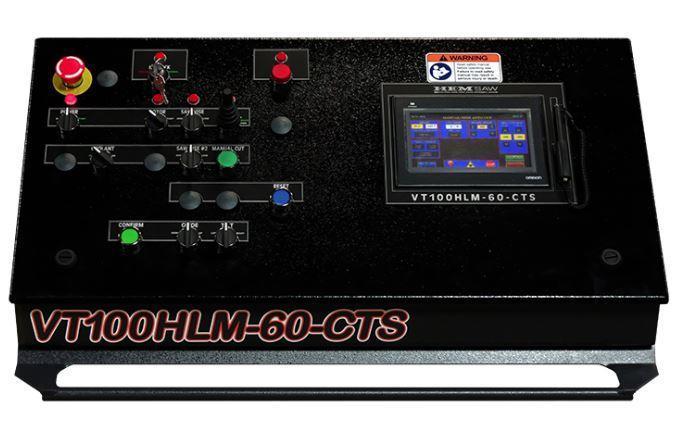

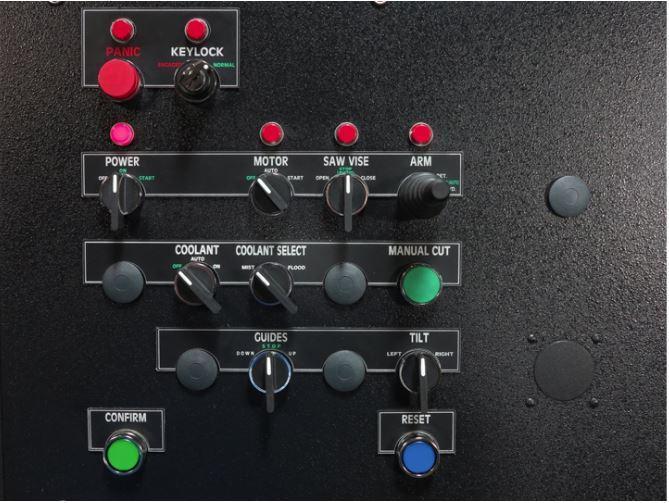

| Operator Control | Control Console is located on front of saw in a Swing-away Console, with 7" Omron touch screen controls, for operator convenience. Saw may be operated in semi-automatic mode. |

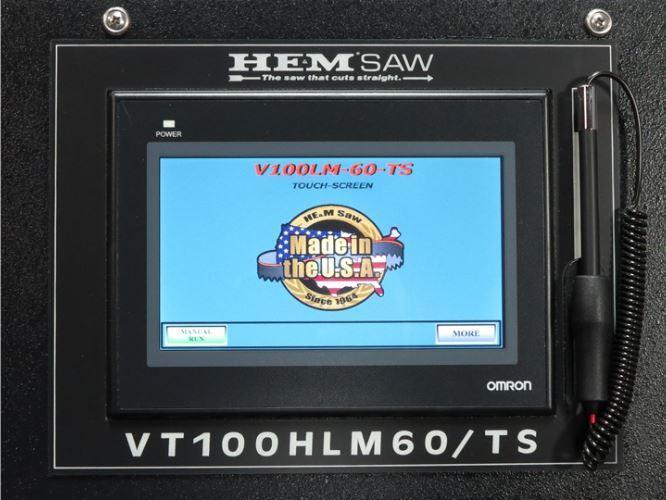

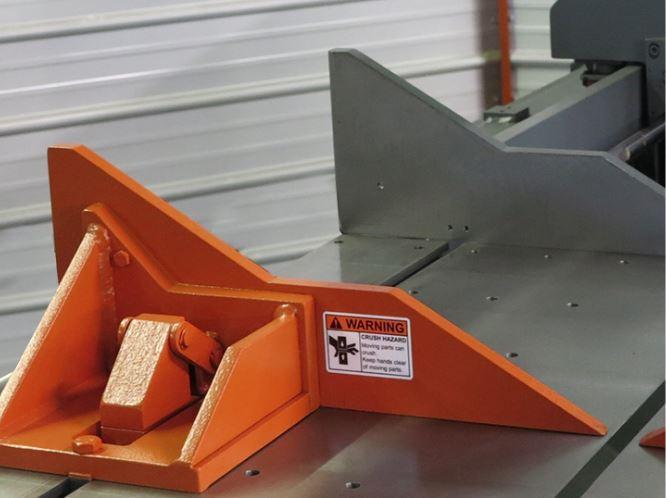

| Touch Screen | The touch screen display provides easy to use menu navigation to operate, select cutting options, and monitor / troubleshoot the saw. |
| E.C.T. Controls | The Electronic Controlled Traverse (E.C.T.) allows the operator to set blade traverse speed and cutting force for different material sizes and shapes. Each function offers 0 to 100% of the machine’s capability as related to total feed force or feed rate. |
| Cut Stop | Forward cut-stop is mechanically linked to the vise and automatically adjusts with the vise opening. |
| Main Vise | The Main Vise is full-stroking with adjustable clamping pressure to clamp various metals. |

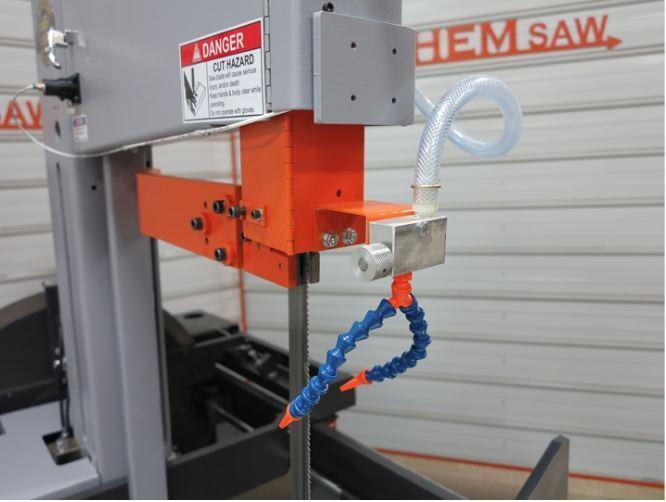

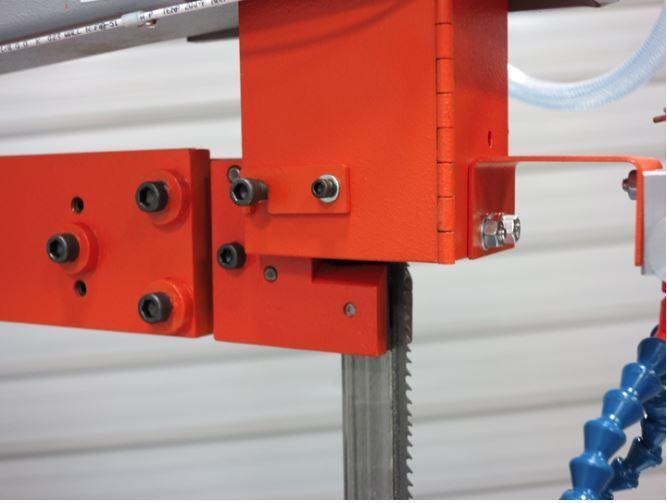

| Carbide Blade Guides | Side and back carbides are flat for maximum blade support. |
| Blade Chip Brush | Powered brush driven by an assembly mounted on the drive wheel removes chips that may become lodged in the blade gullets. |

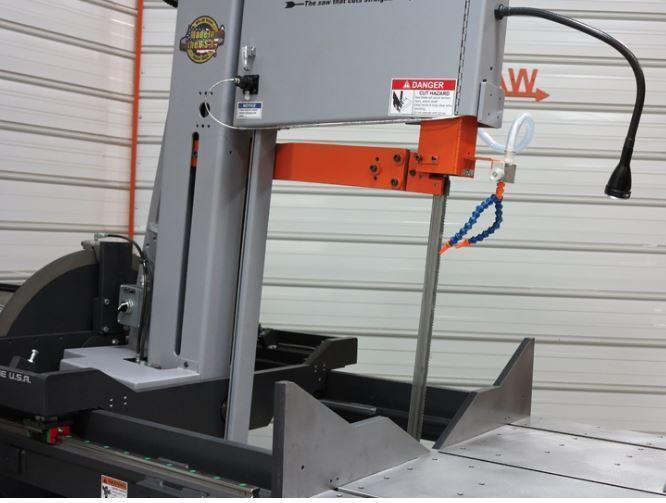

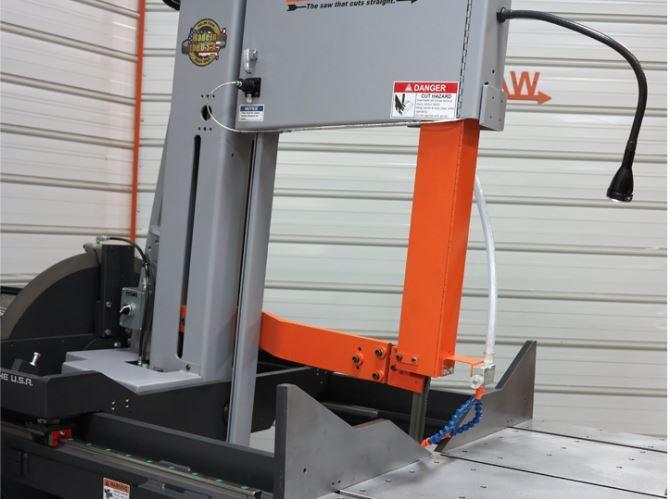

| Powered Guide Arm | The upper guide arm is column supported. It is positioned 90˚ to the work and is height adjustable for better blade control to ensure square cuts. Movement of the guide arm is powered from the control console. |

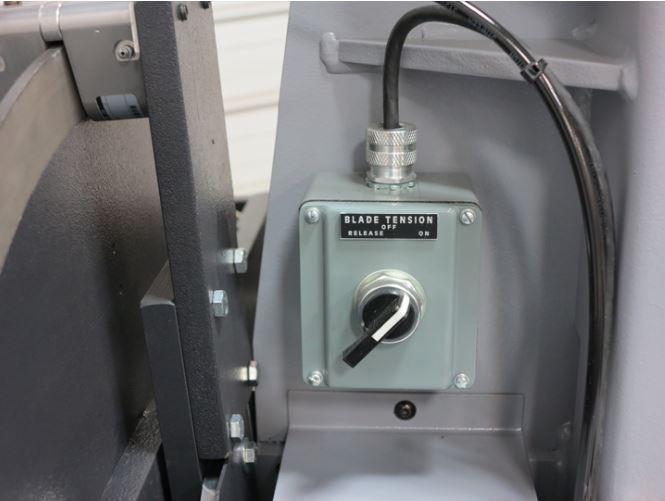

| Powered Blade Tension | Blade Tension is powered, assuring and maintaining proper blade tension at all times during the cutting process. |
| Built-In Coolant System | Machine is set up for flood-style coolant system with coolant dispensed a flex-tube nozzle to flood the center of the cut. The saw is fully panned and has bolt-able side wings to return coolant to the tank. |
| Wash-Down Hose | A cutting fluid clean-up hose is provided for machine wash down. |
| Blade Break Switch | Saw will automatically shut off if the blade breaks. |
| Safety Key-Lock | The safety Key-Lock is used to lock out band motor operation while changing the blade. WARNING! The Safety Lockout Key does NOT turn off all power to the saw. To shut down all power, the main disconnect must be turned off. |
| Safety Guards | Machine is equipped with blade guards and awareness barriers for safety purposes. |
