SPECIFICATIONS:
Capacity Rectangular (h x w) Round
90° (Rectangular): 13" x 18" (Round): 13"
45° (Rectangular): 13" x 10.9" (Round): 12"
30° (Rectangular): 13" x 7.3" (Round): 8"
Blade Size -------------------------- 1" x 14' 10"
Blade Drive ------------------------- 3 HP
Blade Speed ------------------------- 45-375 SFM
Blade Wheel Diameter ---------------- 17-3/4"
Machine Voltage --------------------- 480V
Head Lift --------------------------- Hydraulic Powered
Vise Type --------------------------- Hydraulic Full Stroke
Vise Pressure ----------------------- 50-400 PSI
Hydraulic System Pressure ----------- 400 PSI
Hydraulic Tank Capacity ------------- 0.66 US Gal.
Feed System ------------------------- Variable Rate Gravity Driven
Guide Arm --------------------------- Manual Positioned
Machine Weight ---------------------- 1,830 lbs
Table Height ------------------------ 33"

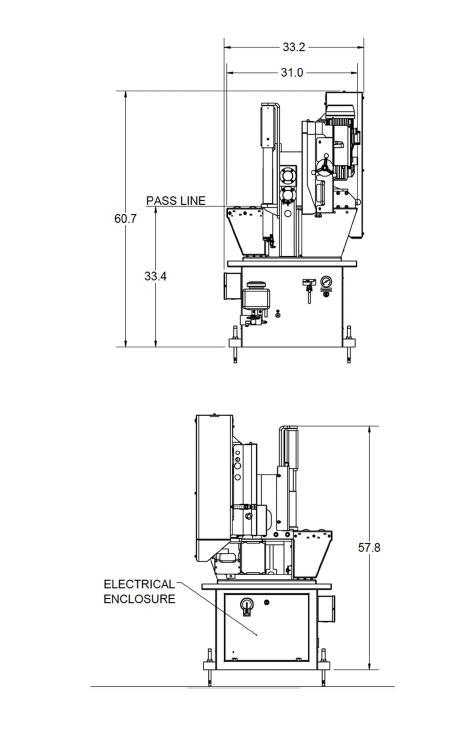

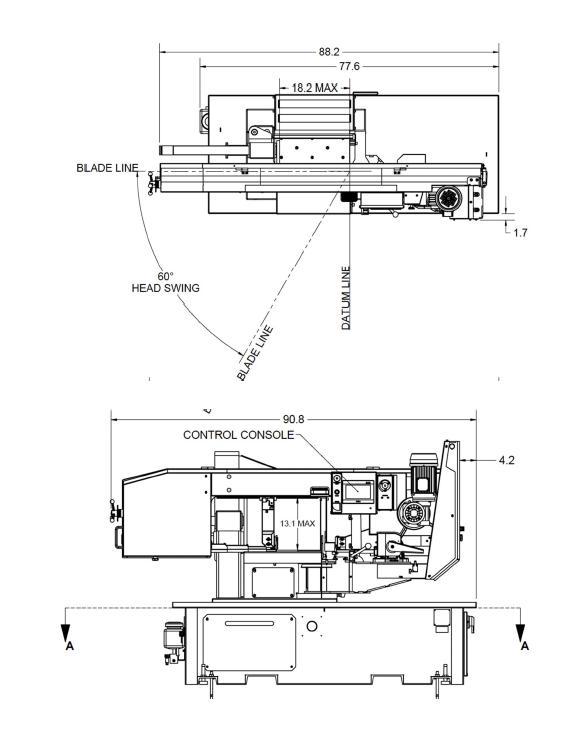

Dimensions (W x L x H) -------------- 91" x 33" x 61"
FEATURES:
• Easy swing, heavy-duty cast iron saw head (swings 90°-30°).
• Hydraulic powered head lift.
• Hydraulic full-stroke vise.
• Variable vise pressure (50-400 PSI).
• 3 HP true direct blade drive, no belts or pulleys.
• VFD variable blade speed (45-375 SFM).
• Gravity-fed variable rate down-feed.
• Carbide blade guide inserts.
• Manually positioned guide arm.
• Manual blade tensioning.
• Cast iron band wheels.
• Mist lubrication system with 64 oz reservoir and low-level detection.

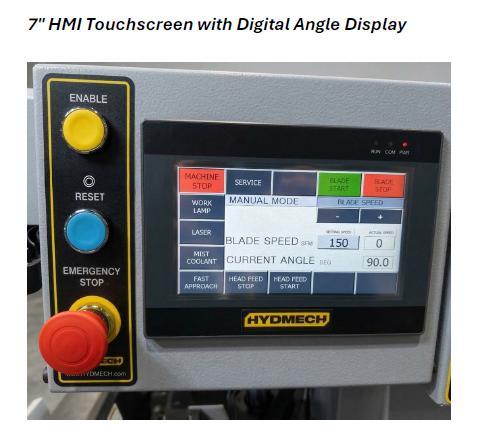

• 7" HMI touchscreen with digital angle display.
• Laser light.
• Work light.
• Replaceable blade brush.
• Robust steel base.
• Safety door interlocks.
• Blade breakage switch.
• Built-in material in-feed rollers and out-feed table.
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Full Capacity Hydraulic Overhead Bundling
11370100
$2,500
Power Transformer - Change in House Power for 208V, 240V, and 575V
-
$1,700
Material Work Stop - 0-27"
-
$900
Step Two – Select Conveyors
HYDMECH designs and manufactures material handling systems
for heavy-duty industrial applications. We can build to your
custom specifications or provide a turnkey engineered solution.
Idler Conveyors (26"W x 35"H)
Type 1 - 5' Infeed/Outfeed Idler Conveyor
Material support rollers can be installed above or below the frame
18010404
$2,500
Filler Plates - For 5' Idler Conveyor
(Advise if rollers should be above or below the frame)
18099091
$1,900
Step Three – Select Measuring Stop

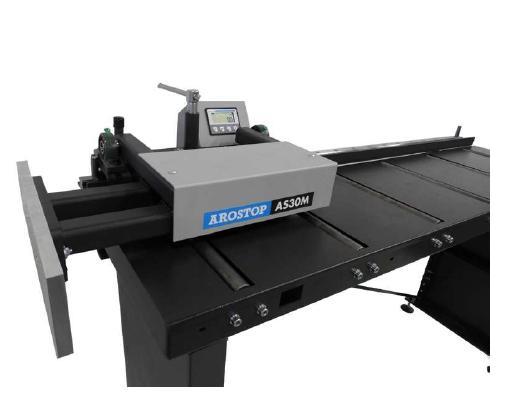

AROSTOP AS30M Digital Measuring System
710-004
$5,000
Options:
Extension AS30M L = 6.3'
710-055
$1,100
Measuring Finger 39" and Stop Plate
710-016
$250
DELIVERY:
SUBJECT TO STOCK
WARRANTY:
TWO YEAR PARTS, ONE YEAR LABOR
