SPECIFICATIONS:
Capacity Rectangular (h x w) Round
90° (Rectangular): 16" x 20" (Round): 16"
45° (Rectangular): 16" x 14" (Round): 14"
30° (Rectangular): 16" x 8 1/2" (Round): 8 1/2"
Blade Size -------------------------- 1 1/4" x 16' 10"
Blade Drive ------------------------- 8.8 HP VFD
Machine Voltage --------------------- 480V
Blade Speed ------------------------- 75-350 SFM
Coolant Tank Capacity --------------- 12 Gallons
Machine Weight ---------------------- 4,200 lbs
Work Load --------------------------- 5,000 lbs
Table Height ------------------------ 33"

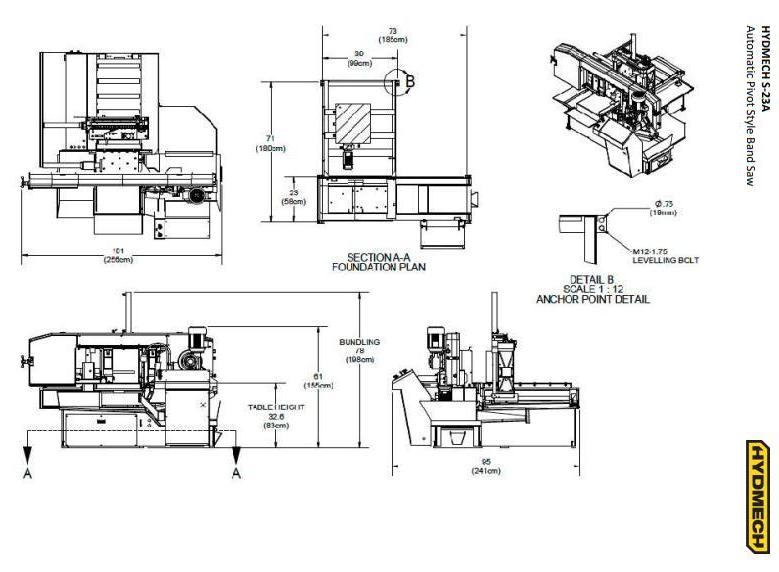

Dimensions (W x L x H) -------------- 101" x 95" x 61"
FEATURES:
• Easy swing, heavy-duty cast iron saw head that can swing up to 60 degrees in one direction.
• Cast iron shuttle features automatic multi-indexing up to 28.5" in a single stroke. Powered by ball screw and stepper motor.
• 19 1/4" outfeed table and 45 1/4" infeed table.
• 8.8 HP VFD. True direct blade drive, no belts or pulleys.
• On-demand hydraulics save energy.
• Full-capacity, full-stroking hydraulic vises.
• Blade chamber pulls back material from cut part to extend blade life.
• Cast iron band wheels.
• Automatic PLC touchscreen control programmable up to 100 jobs with 20 in queue.
• Replaceable blade brush.
• Robust steel base.
• Easy-to-read angle scale with angle locking mechanism.
• Cast iron blade guide arms mounted on linear rails and adjustable for proper spacing.
• Easy access electrical panel.
• Out-of-stock switch.
• Blade breakage switch.
• Mechanical band tensioning with digital readout.
• Hydraulic positive downfeed of sawing head.
• Pre-set replaceable carbide guide inserts.
• Safety door interlocks.
• Flood coolant with wash-down hose.
• Laser light.
• Work light.
• Variable vise pressure.
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Full Capacity Hydraulic Overhead Bundling – Two Vises, Main and Feed
11540200
$5,900
Mist Lubrication System (Shop Air Required)
11540400
$1,900
Power Transformer - Change in House Power for 208V, 240V, and 575V
-
$1,700
Remote Console – 10' Cord
11540300
$5,500
*NOTE: BUNDLING OPTION REDUCES BAR FEED STROKE TO 28" MULTI-INDEX.
Step Two – Select Conveyors
HYDMECH designs and manufactures material handling systems
for heavy-duty industrial applications. We can build to your
custom specifications or provide a turnkey engineered solution.
Note: All conveyor controls will be on a free-standing pedestal
separate from the machine controls.
Idler Conveyors (26"W x 35"H)
Type 1 - 5' Infeed/Outfeed Idler Conveyor
Material support rollers can be installed above or below the frame
18010404
$2,500
Powered Conveyors (26"W x 35"H)
Type 1 - 10' Infeed/Outfeed Powered Conveyor - Master Section
18010270
$11,500
Additional 10' Power Add-On Section
18010271
$8,900
Pneumatic Clutch
18092000
$4,500
Accessories for Both Idler and Powered Conveyors
Filler Plates - For 5' Idler Conveyor
(Advise if rollers should be above or below the frame)
18099091
$1,900
Coolant Drip Pan - For 5' Idler Conveyor
18099084
$1,900
Filler Plates - For 10' Powered Conveyor
(Advise if rollers should be above or below the frame)
18099092
$3,800
Coolant Drip Pan - For 10' Powered Conveyor
18099083
$3,800
Vertical Alignment Roller
18099079
$2,500
Fork Lift Cut Outs
18099095
$2,500
DELIVERY:
SUBJECT TO STOCK
WARRANTY:
TWO YEAR PARTS, ONE YEAR LABOR
