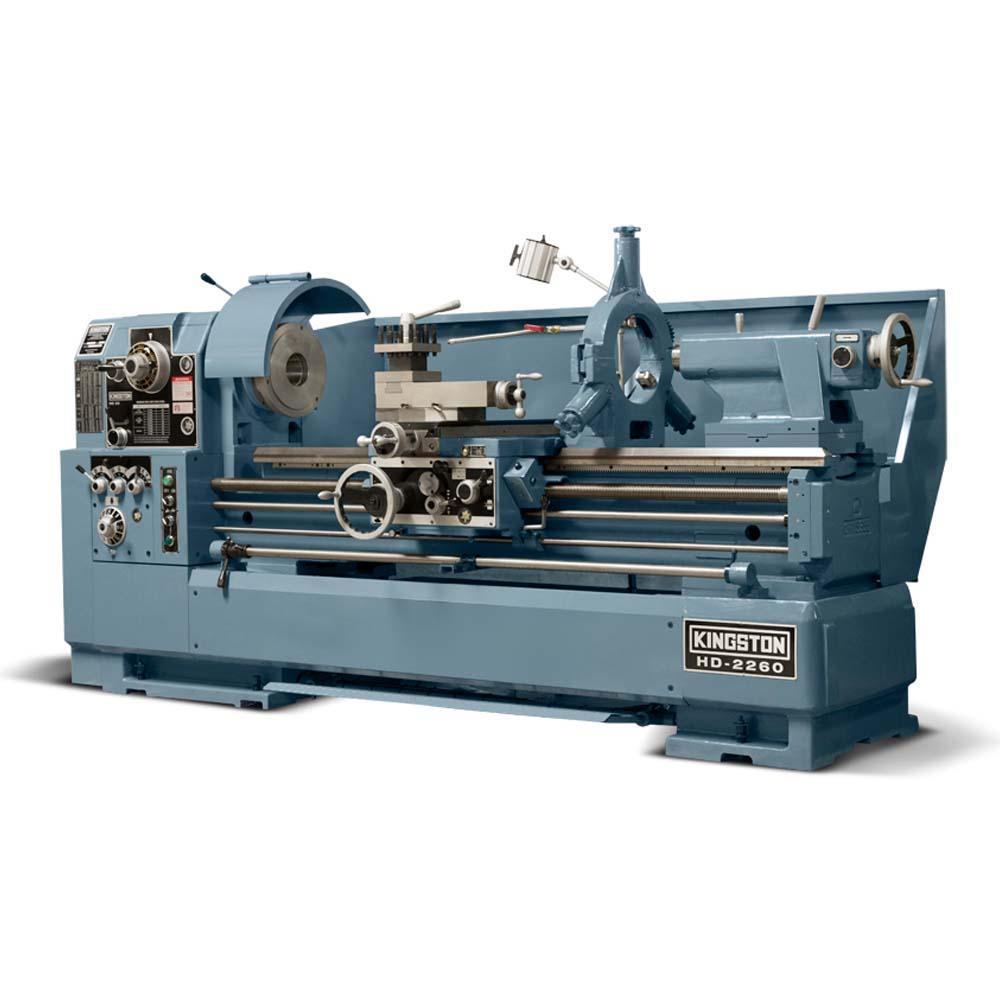

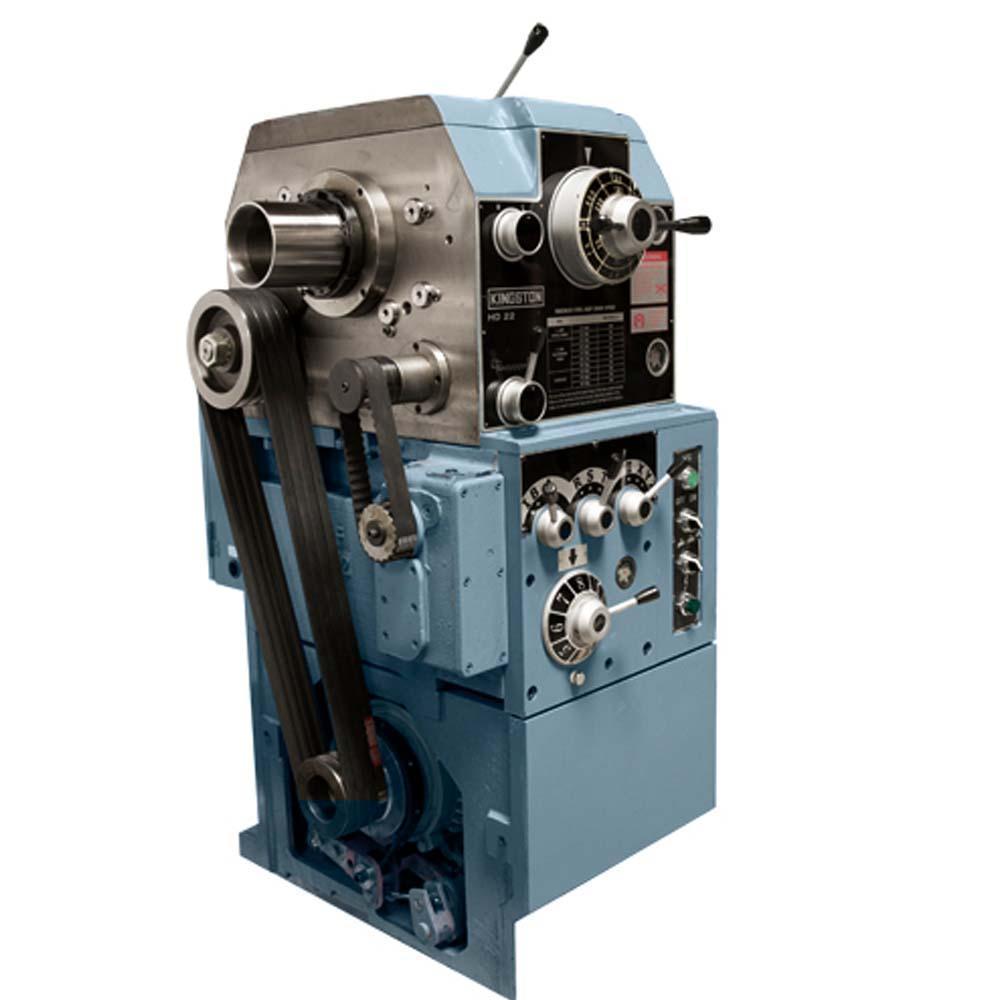

1 NEW KINGSTON HD SERIES PRECISION GAP BED ENGINE LATHE, MODEL #: HD-2690

SPECIFICATIONS
FILES & ATTACHMENTS

Swing Over Bed	26 inches
Swing Over Cross Slide	17.5 inches
Swing In Gap	35.1 inches
Gap Width in Front of the Face Plate	10.625 inches
Distance Between Centers	90 inches
Width of Bed	15.75 inches
Height of Center from Leg Bottom	44.3 inches
Spindle Bore	4.0625 inches
Taper of spindle bore and center	MT#7 x #5
Type of Spindle Nose	D1-11
Number of Spindle Speeds	12
Spindle Speed	13-1,200 RPM
Number of Feed Changes	16
Feeds per revolution – Longitudinal	0.0012″-0.039″
Feeds per revolution – Cross	0.0007″ – 0.0188″
Leadscrew Diameter & Threads Per Inch	1.77″ , 2 TPI
Range of Inch Threads	1-42 TPI (48)
Range of Metric Pitches	0.2 – 14 (39)
Maximum Travel of Compound	9.5 inches
Maximum Travel of Cross Slide	15.8 inches
Tailstock Quill Travel	9.8 inches
Tailstock Quill Diameter	2.9 inches
Taper in Tailstock Quill	M.T. #5
Main Drive Motor	15 HP
Coolant Pump Motor	1/8 HP
Floor Space	W: 47″ L: 217″
Machine Weight	8000 pounds

Equipped With

Standard Features:

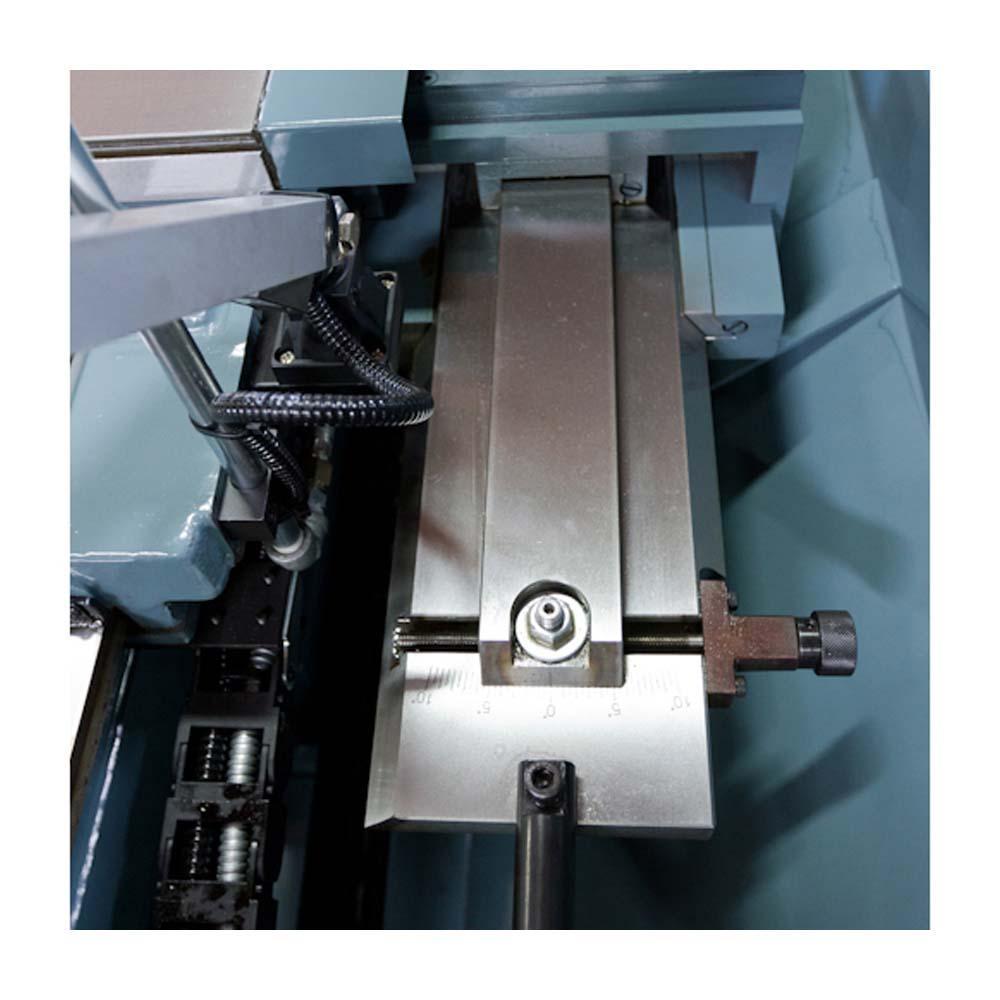

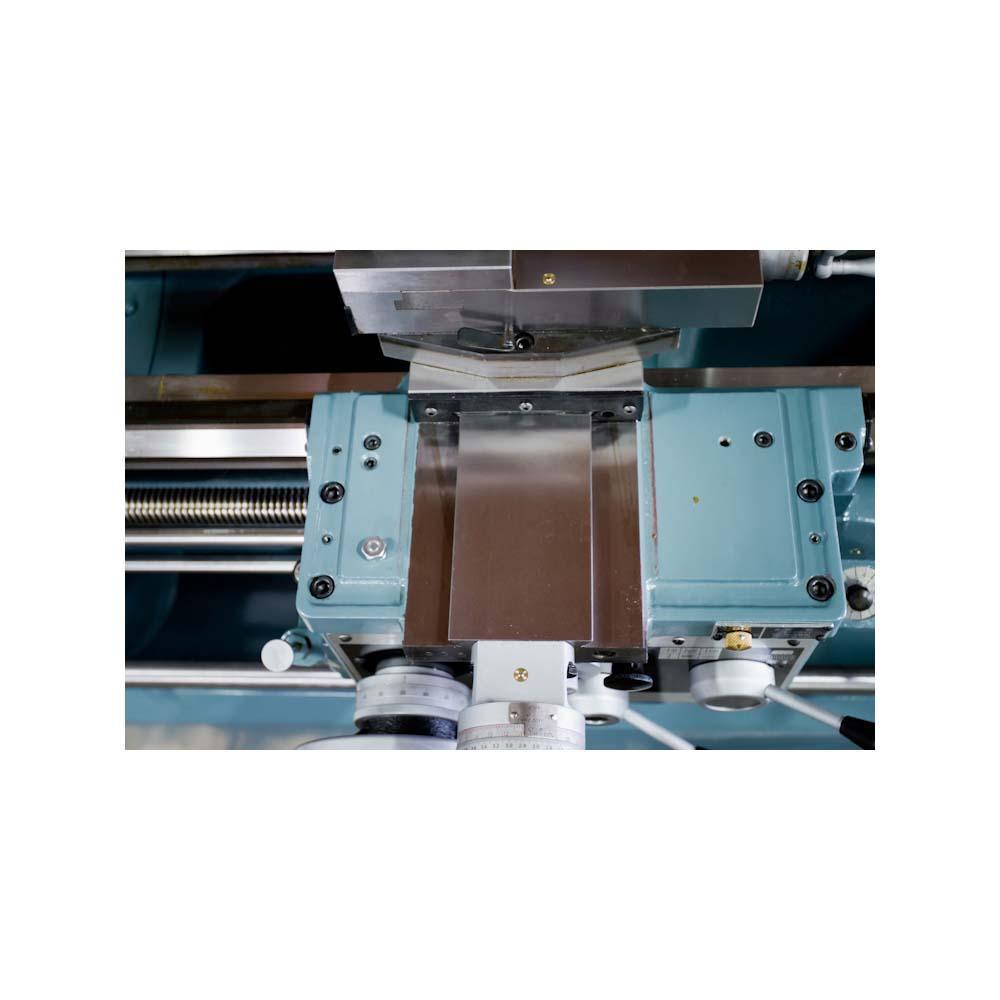

• Hardened & Ground Bed & Cross Slide Ways

• Thread Chasing Dial

• Automatic Longitudinal Feed Stop Bar

• 4-Way Tool Post Fitted To T-Slotted Compound

• LED Work Light

• 10” Steady Rest with Roller Jaws

• Z-Axis Rapid Traverse (Except 35” & 60” C.C.)

• Chuck Guard

• Ground Steel Center MT#5 For Headstock

• 12" Back Plate

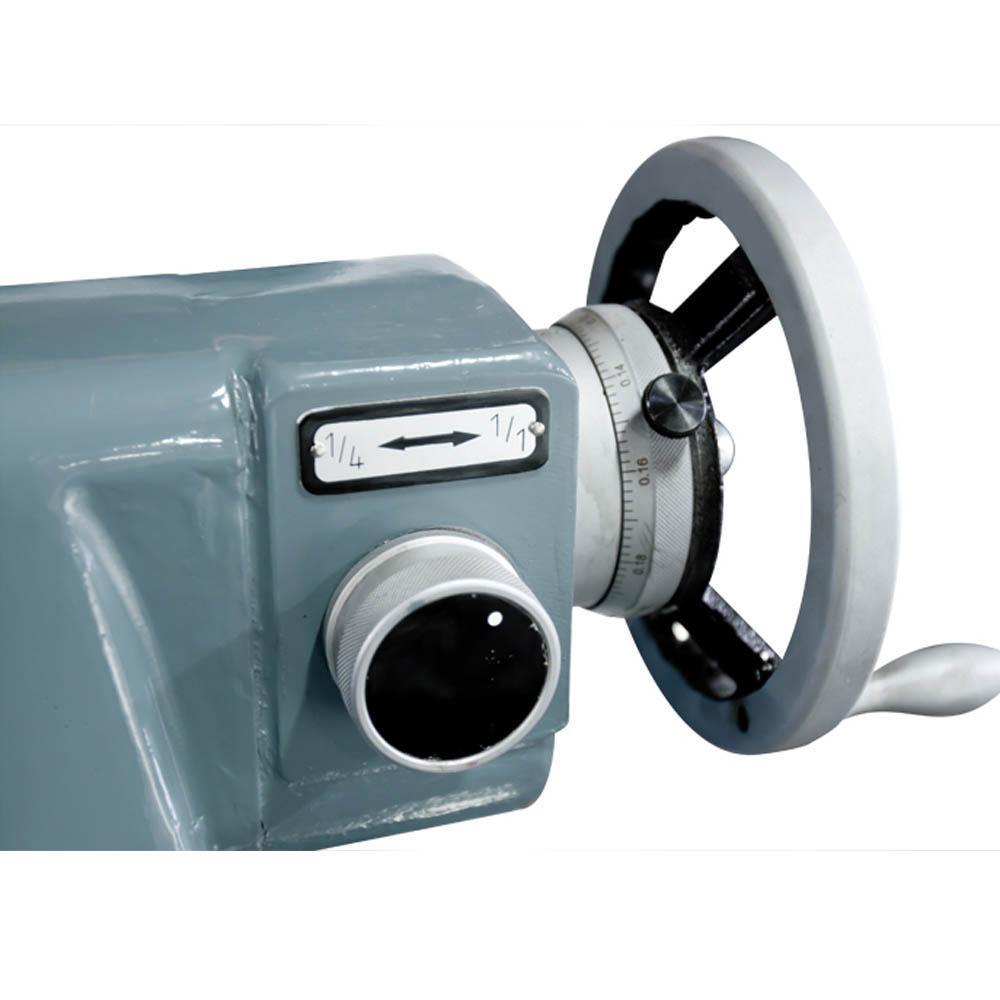

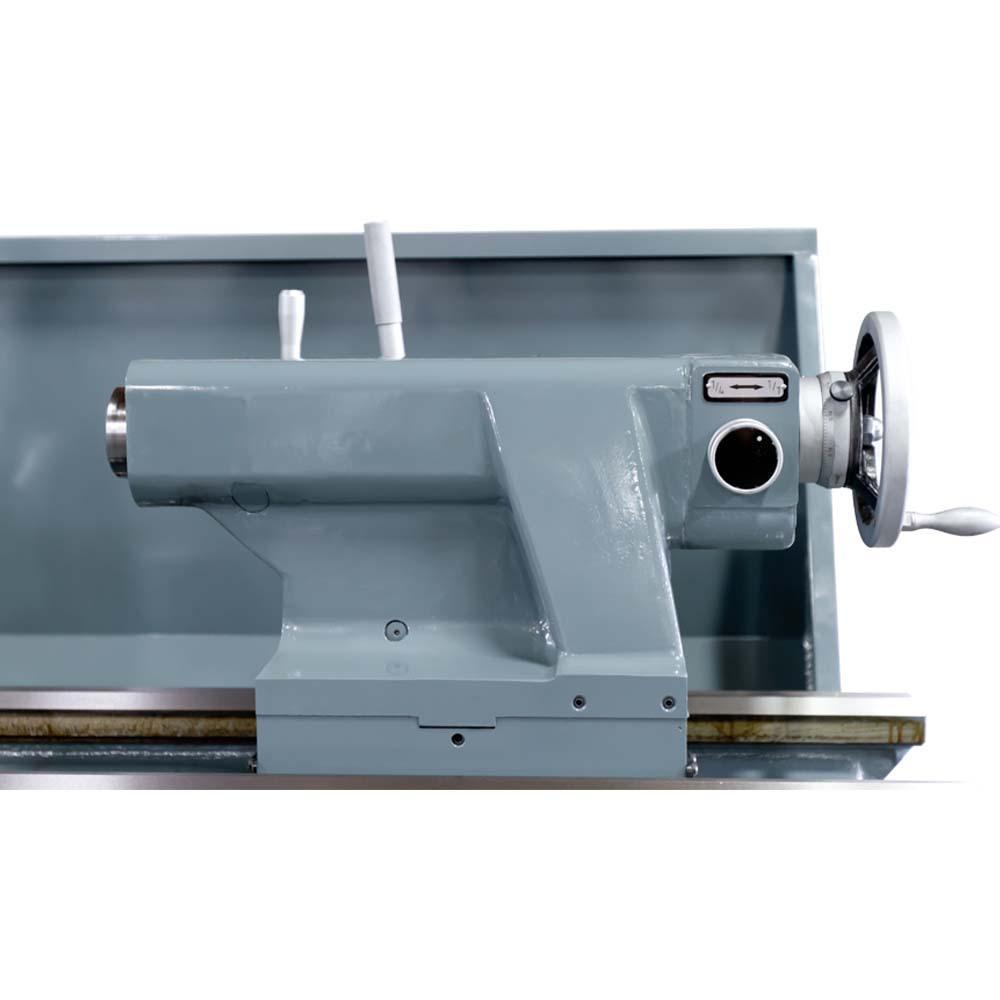

• Two-Speed Drive Tailstock Spindle (MT#5)

• Coolant System with Pump and Piping

• Full Length Splash Guard

• Pull Drawer Chip (Oil) Pan

• Tool Box w/ Necessary Wrenches & Spanners

• Instruction Manual & Parts List

• Emergency Stop Button

NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:

Additional 10" Steady Rest with Roller Jaws (Min. Capacity 1.6") $3,500
15" Steady Rest with Roller Jaws (Min. Capacity 7.5") $3,900
7" Follow Rest $1,500 Telescopic Taper Turning Attachment $5,900
Z-axis Rapid Traverse on 35” or 60” Bed $3,500
Turret or Micrometer Carriage Stop $ 450
Tailstock Complete Crank Assembly $ 400
Convert Cross Feed Screw (HD-22 to 5 TPI, HD-26 to 8 TPI) $1,250
Aloris CA Tool Post Only $ 975
Aloris CA Tool Post + 6 Tool Holders (Set #4) $1,950
Aloris DA Tool Post Only $1,350
Aloris DA Tool Post + 6 Tool Holders (Set #5) $2,595
Newall 2-Axis Digital Readout + Installation (Net):
35” C.C. $3,800 + $550
60” C.C. $3,900 + $550
90” C.C. $5,800 + $650
120” C.C. $6,000 + $750
160” C.C. $7,200 + $850
WORKHOLDING:
Chandox SK 12” 3-Jaw Semi-Steel Scroll Chuck (D1-8 plate, solid jaws) $ 2,100
Chandox KT 12” 3-Jaw Steel Body Adjustable Chuck (D1-8 plate, hard+soft solid jaws) $ 2,900
Taiwan KC 12” 4-Jaw Semi-Steel Independent Chuck (D1-8 direct mount, solid jaws) $ 1,450
Bison 16” 3-Jaw Forged Steel Scroll Chuck (D1-8 direct mount, 2pc jaws) $ 5,450
Bison 16” 4-Jaw Forged Steel Independent Chuck (D1-8 direct mount, 2pc jaws) $ 4,500
Taiwan KC 16” 4-Jaw Semi-Steel Independent Chuck (D1-8 direct mount, solid jaws) $ 2,400
Bison 20” 3-Jaw Forged Steel Scroll Chuck (D1-11 direct mount, 2pc jaws) $11,900
Bison 20” 4-Jaw Forged Steel Independent Chuck (D1-11 direct mount, 2pc jaws) $ 7,100
Taiwan KC 20” 4-Jaw Semi-Steel Independent Chuck (D1-11 direct mount, solid jaws) $ 3,250
20” Face Plate $ 1,500 Other Chucks Upon Request
SAFETY ACCESSORIES:
Add Limit Switch to Chuck Guard $ 150
Clear Lexan Chuck Guard [Installed] $ 495
Leadscrew Guard [60” / 90” Lengths Only] $1050 / $1150
Travelguard Tool Post Guard [Kingston Installation] $ 540
Heavy Duty Tool Post Guard [Factory Installation Only] $2,000
NRTL / UL Ready [UL/NFPA standards, No Certification] Upon Request
NRTL / UL Certification Upon Request

DELIVERY:
SUBJECT TO STOCK
