1 – NEW KINGSTON HEVY DUTY PRECISION LATHE, MODEL #: HR-3480

SPECIFICATIONS
FILES & ATTACHMENTS

Swing Over Bed	34 inches
Swing Over Cross Slide	25.1 inches
Swing Over Gap	45.6 inches
Distance Between Centers	80 inches
Width of Bed	22 inches
Height from floor to work center	48.6 inches
Spindle Bore	4.09 inches
Taper of Spindle Bore & Center	ASA #450 x M.T. #6
Type of Spindle Nose	D1-11
Number of Spindle Speeds	16
Spindle Speed	8 – 800 RPM (12 – 1200 Optional)
Number of Feed Changes	Fine (20), Normal (40), Course (30)
Range of Feeds per Revolution	0.0024”-0.0337”
Longitudinal Cross	1/2 of Longitudinal Feed
Leadscrew Diam. & Threads per Inch	1.9” / 2 TPI
Threading range (Whitworth)	2 to 28 TPI (40) / Coarse 5/8” to 8” Pitch (16)
Threading range (Metric)	1 to 14 mm (31) / Coarse 16 to 200 mm Pitch (61)
Threading range (Module)	0.5 to 7 M (20) / Coarse 8 to 56 M (30)
Threading range (D.P.)	56 to 4 D.P. (40) / Coarse 3.5” to .5” D.P. (30)
Maximum Travel of Compound	9.4 inches
Maximum Travel of Cross Slide	21.2 inches
Tailstock Quill Travel	11.8 inches
Tailstock Quill Diameter	5.1 inches
Tailstock Center	M.T. #6
Main Drive Motor	20 HP (25 HP, 30 HP Optional)
Coolant Pump Motor	1/4 HP
Floor Space	W: 82” 1L: 193“
Weight	10450 pounds

Equipped With

STANDARD EQUIPMENT & ACCESSORIES:

• Main Motor: 20 HP, 230V / 460V, 3 Phase, 60 Cycle,

Switch and Wiring Complete

• 4.09” Spindle Bore

• Spindle Nose: D1-11 Camlock

• Headstock Spindle Adapter ASA#450 to MT#6

• Chuck Guard

• Set of Change Gears for Special Leads

• Hardened and Ground Bedways

• Tool Slide with T-Slot

• 4-Way Rapid Traverse

• Thread Chasing Dial

• Tailstock Safety Locking Chock

• 2-Speed Drive Tailstock Quill

• Coolant System with Pump and Piping

• Pull Drawer Chip (Coolant) Pan

• UL Electrical Components & Cables

• Tool Box with Necessary Wrenches & Spanners

• Instruction Manual and Parts List

OPTIONAL ACCESSORIES:

11.9” Steady Rest with Roller Jaws (Min. Capacity 1.25”) $ 4,800

19.7” Steady Rest with Roller Jaws (Min. Capacity 11.1”) $ 5,850

23.5” Steady Rest with Roller Jaws (Min. Capacity 11.9”) $ 8,250

7.9” Follow Rest (Min. Capacity 0.75”) $ 3,400

Roller Bracket (34”: 15.75” – 27.5” / 40”: 20” – 33.5”) $ 9,350

25 HP Main Motor Upgrade [Factory Installation Only] $ 2,450

30 HP Main Motor Upgrade [Factory Installation Only] $ 3,550

Lower RPM Modification: 0.4 – 40 RPM [Factory Installation Only] $ 1,320

Higher RPM Modification: 12 – 1200 RPM [Factory Installation Only] $ 1,320

Telescopic Taper Attachment (Hardened & Ground) $ 7,500

Drilling Attachment $ 3,550

Micrometer Carriage Stop $ 940

Turret Carriage Stop $ 940

LED Work Light $ 325

Bison Super Precision Live Center MT#6 (8140 lbs, 0.0002 max runout) $ 950
Add Limit Switch to Chuck Guard $ 185

Aloris DA Tool Post Only $ 1,600

Aloris DA Tool Post + 6 Holders (Set #5) $ 3,200

Aloris EA Tool Post Only $ 2,550

Aloris EA Tool Post + 6 Holders (Set #6) $ 5,050

Newall 2-Axis Digital Readout + Installation (Net):
HR-2000 $4,900 + $550 (includes freight)
HR-3000 $6,000 + $600
HR-4000 $7,500 + $700
HR-5000 $9,750 + $800
HR-6000 $10,500 + $900
HR-7000 $13,200 + $1,000
HR-8000 $13,950 + $1,100

Chip Conveyor Upon Request

Toolpost Guard $ 1,500

Full Length Splash Guard Upon Request

NRTL / UL Certification Net $ 6,500
WORKHOLDING:

Bison 20” 3-Jaw Forged Steel Scroll Chuck (D1-11, 7.48” hole, 2pc jaws) $ 15,400
Bison 20” 4-Jaw Forged Steel Independent Chuck (D1-11, 4.92” hole, 2pc jaws) $ 9,125
Taiwan KC 20” 4-Jaw Semi-Steel Independent Chuck (D1-11 direct mount, solid jaws) $ 4,950
Bison 25” 3-Jaw Forged Steel Scroll Chuck (D1-11, 7.48” hole, 2pc jaws) $ 20,750
Bison 25” 4-Jaw Forged Steel Independent Chuck (D1-11, 6.3” hole,2pc jaws) $ 12,350
26” Face Plate $ 2,500

30” Face Plate $ 3,000

Other Chucks [i.e. Bison, Toolmex, Pratt Burnerd] Upon Request

Files

LOADING CAPACITY 2024a.pdf

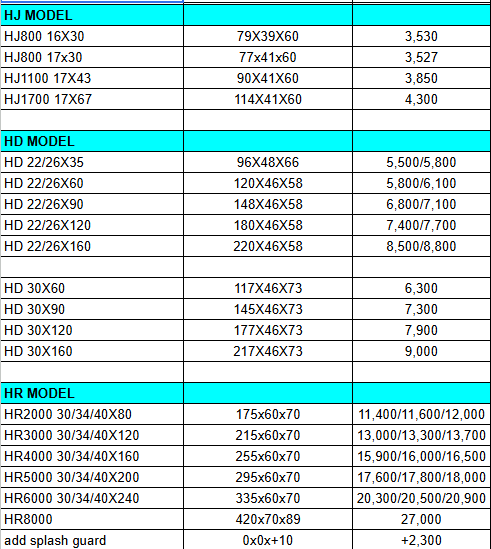

HJ- HD- HR dimensions and weight .png

HR Foundation_LAYOUT_12A_12B.pdf
