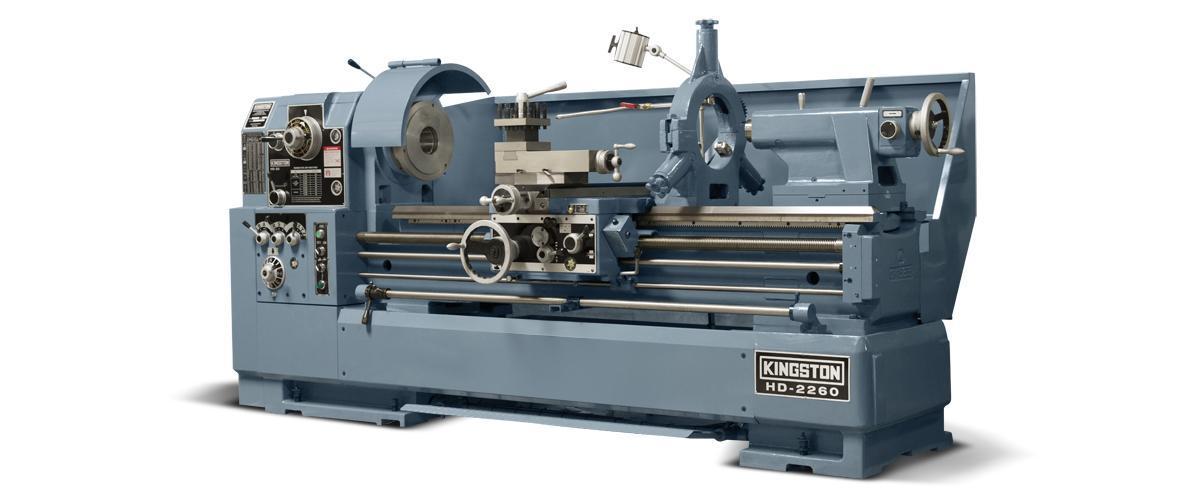

1 – NEW KINGSTON LARGE BORE HIGH SPEED PRECISION GAP BED LATHE, MODEL #: HD-22120

SPECIFICATIONS
FILES & ATTACHMENTS

Swing Over Bed	22 inches
Swing Over Cross Slide	13 inches
Swing In Gap	31.375 inches
Gap Width in Front of the Face Plate	10.625 inches
Distance Between Centers	119.9999 inches
Width of Bed	15.75 inches
Height of Center from Leg Bottom	42 inches

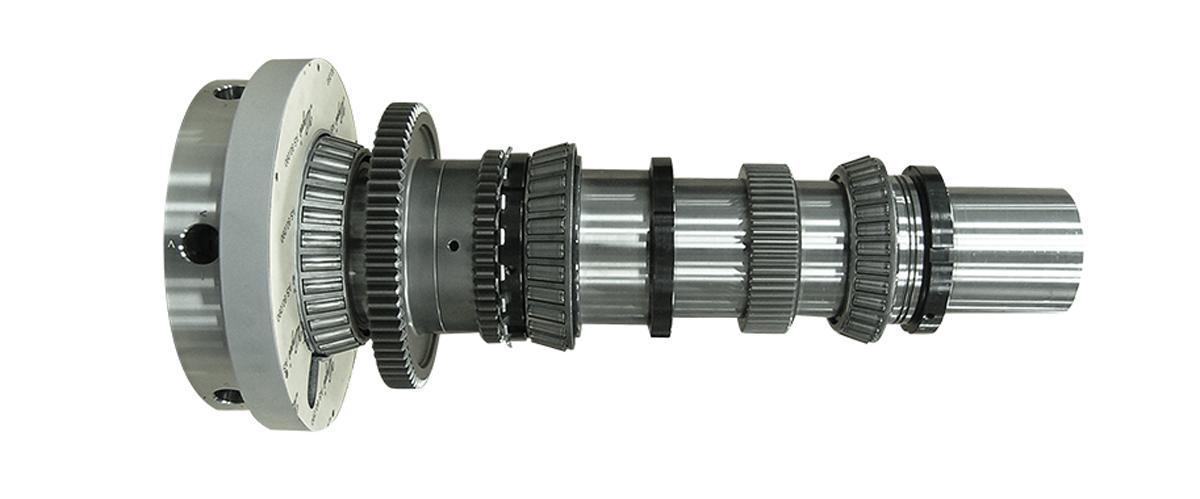

Spindle Bore	4.0625 inches
Taper of spindle bore and center	MT#7 x #5
Type of Spindle Nose	D1-8

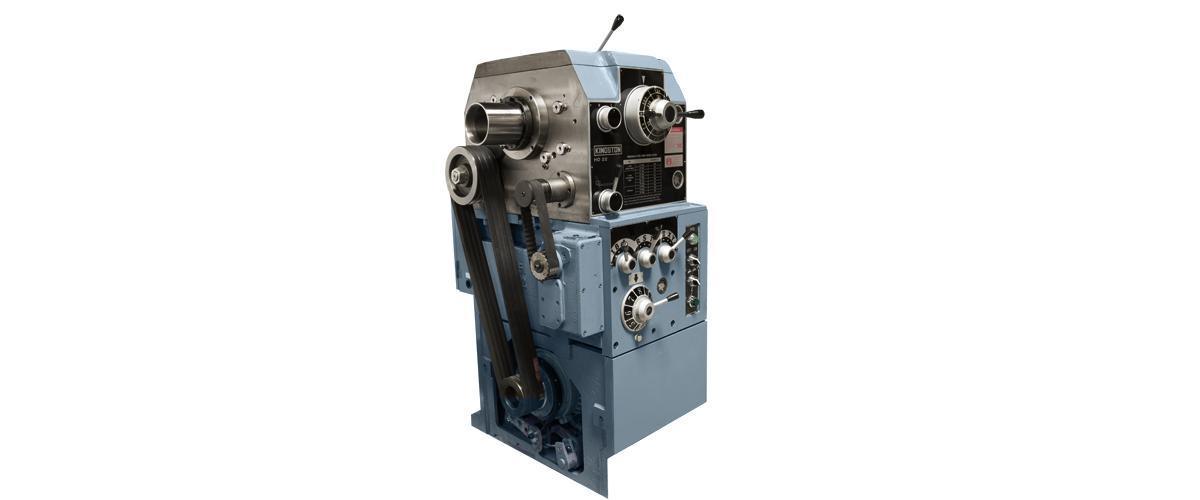

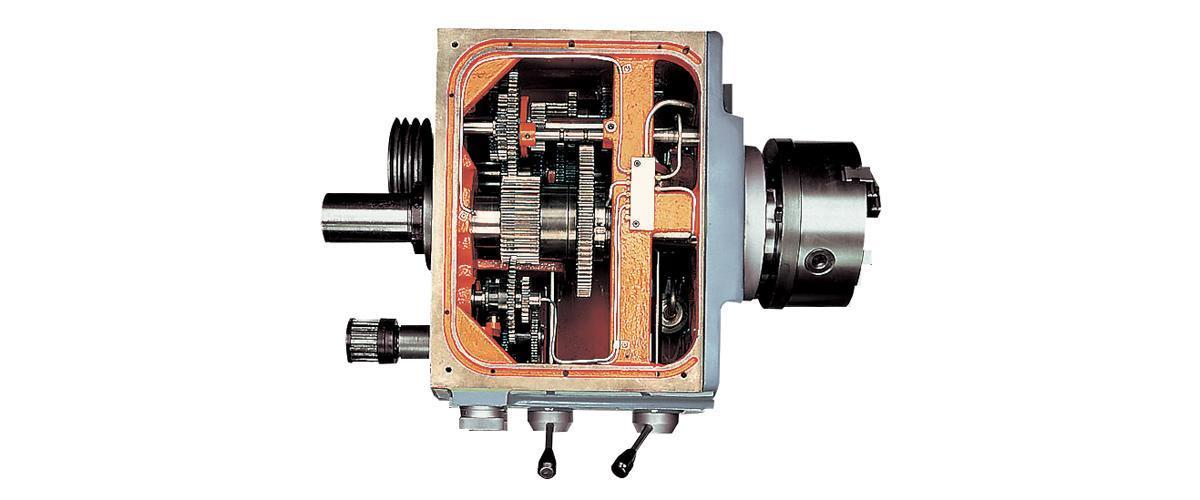

Number of Spindle Speeds	12
Spindle Speed	13-1,200 RPM
Number of Feed Changes	16
Feeds per revolution – Longitudinal	0.0012″-0.039″
Feeds per revolution – Cross	0.0004″ – 0.0117″
Leadscrew Diameter & Threads Per Inch	1.77″ , 4 TPI
Range of Inch Threads	2 – 72 TPI (44)
Range of Metric Pitches	0.2 – 14 (39)
Maximum Travel of Compound	9.5 inches
Maximum Travel of Cross Slide	15.8 inches
Tailstock Quill Travel	9.8 inches
Tailstock Quill Diameter	2.9 inches
Taper in Tailstock Quill	M.T. #5
Main Drive Motor	10 HP
Coolant Pump Motor	1/8 HP
Floor Space	W: 47″ L: 177″
Machine Weight	7000 pounds

Equipped With

EQUIPPED WITH:

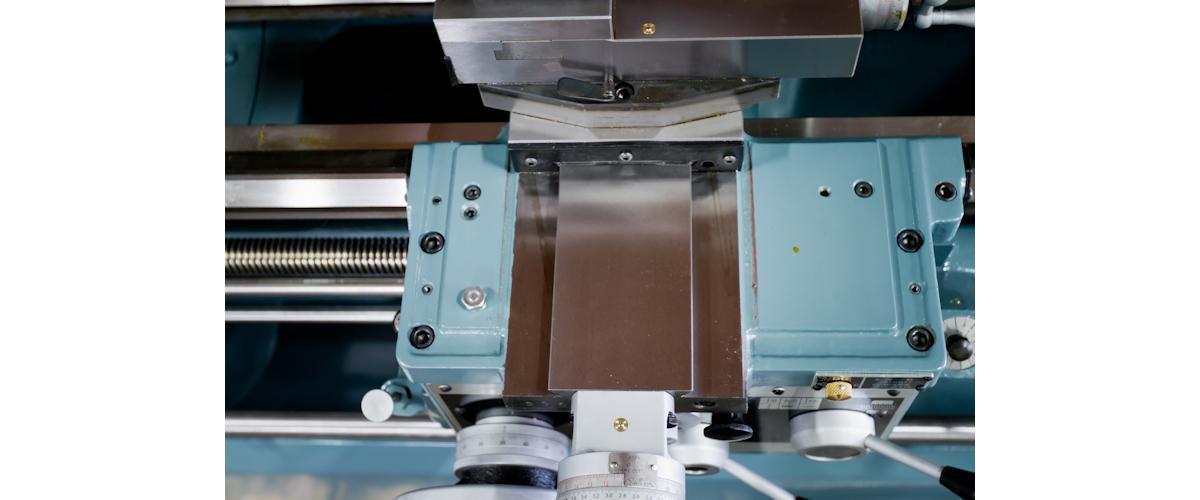

• Hardened & Ground Bed & Cross Slide Ways

• Thread Chasing Dial

• Automatic Longitudinal Feed Stop Bar

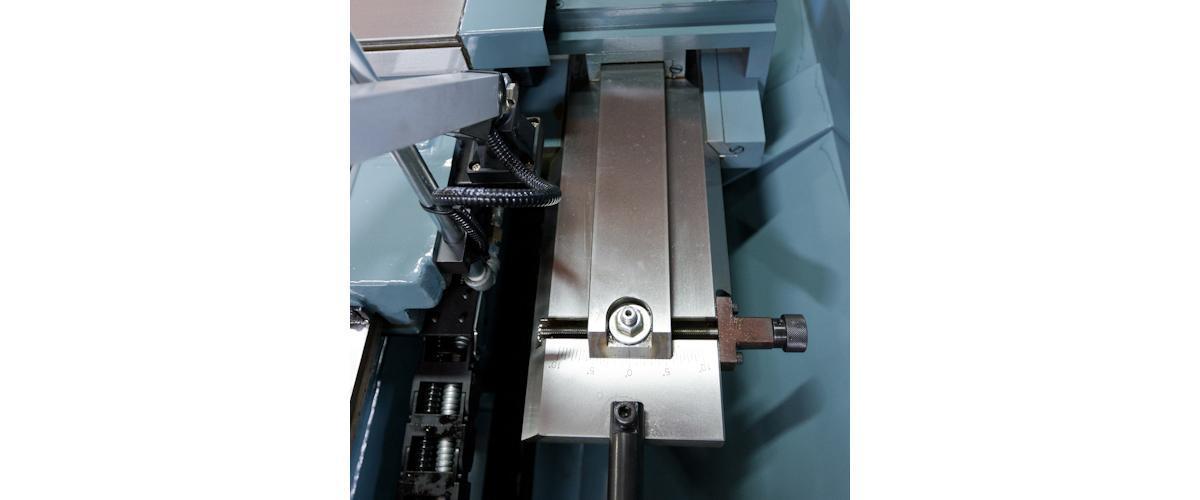

• 4-Way Tool Post Fitted To T-Slotted Compound

• LED Work Light

• 10” Steady Rest with Roller Jaws

• Z-Axis Rapid Traverse (Except 35” & 60” C.C.)

• Chuck Guard

• Headstock Spindle Center Adaptor: MT#7 to #5

• Ground Steel Center MT#5 For Headstock

• 12" Back Plate

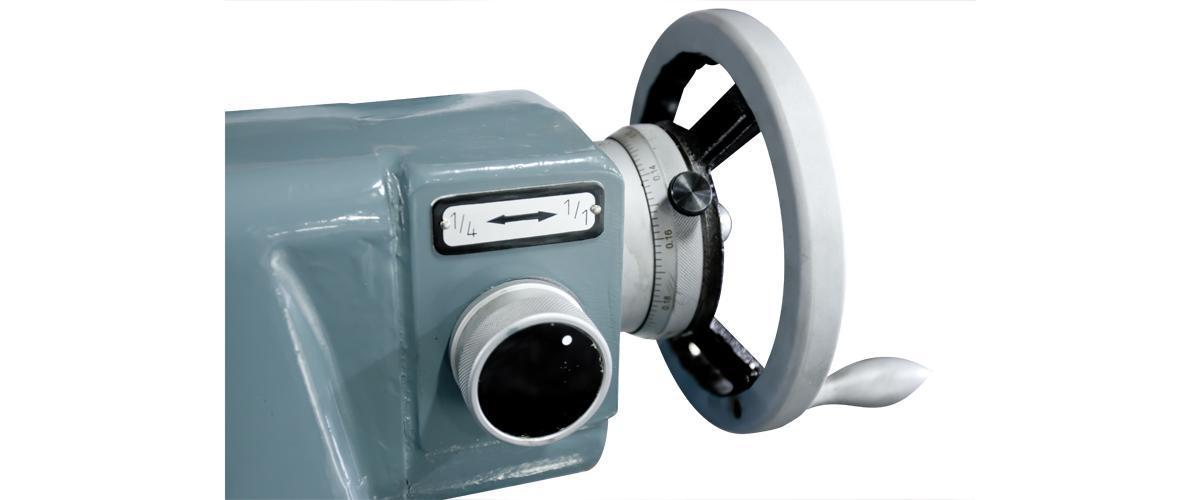

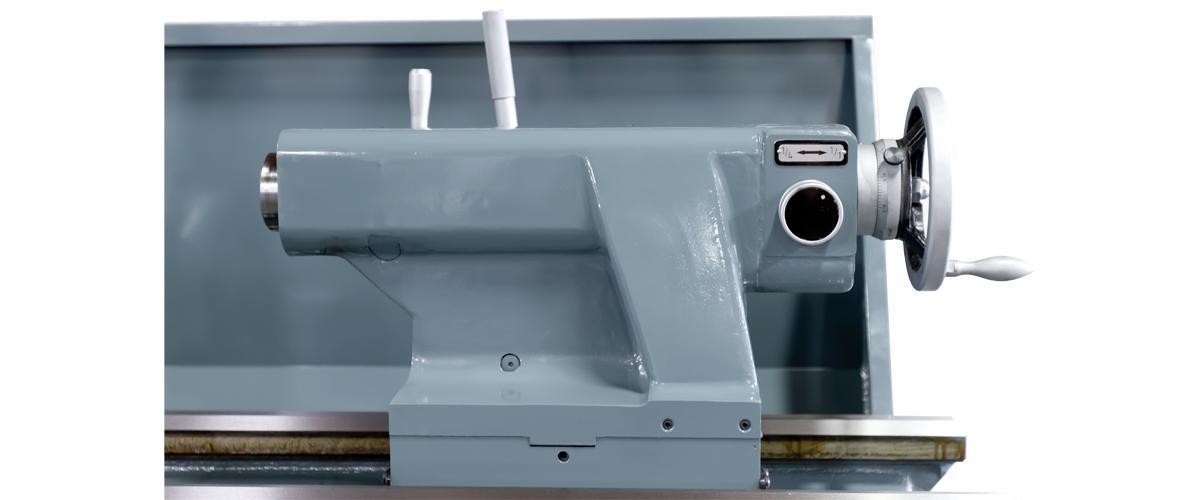

• Two-Speed Drive Tailstock Spindle (MT#5)

• Coolant System with Pump and Piping

• Full Length Splash Guard

• Pull Drawer Chip (Oil) Pan

• Tool Box w/ Necessary Wrenches & Spanners

• Instruction Manual & Parts List

• Emergency Stop Button

OPTIONAL FEATURES:

• Additional 10" Steady Rest with Roller Jaws (Min. Capacity 1.6") $3,500
• 15" Steady Rest with Roller Jaws (Min. Capacity 7.5") $3,900
• 7" Follow Rest $1,500
• Telescopic Taper Turning Attachment $5,900
• Drilling Attachment $1,900
• Z-axis Rapid Traverse on 35” or 60” Bed $3,500
• Carriage Stop: Turret-Type or Micrometer Available $ 450
• Bison Super Precision Live Center MT#5 (4180 lbs, 0.0002 max runout) $ 425
• Convert Cross Feed Screw (HD-22 to 5 TPI, HD-26 to 8 TPI) $1,250
• Aloris CA Tool Post Only $1,050
• Aloris CA Tool Post + 6 Tool Holders (Set #4) $2,125
• Aloris DA Tool Post Only $1,475
• Aloris DA Tool Post + 6 Tool Holders (Set #5) $2,795
• Newall 2-Axis Digital Readout + Installation (Net):
35” C.C. $3,800 + $550
60” C.C. $3,900 + $550
90” C.C. $4,950 + $650
120” C.C. $5,800 + $750
160” C.C. $7,100 + $850
WORKHOLDING
• D1-8: Taiwan SK 12” 3-Jaw Semi-Steel Scroll Chuck + Plate (solid jaws) $ 2,100
• D1-8: Taiwan KT 12” 3-Jaw Steel Body Adjustable Chuck + Plate (hard+soft solid jaws) $ 2,900
• D1-8: Taiwan KC 12” 4-Jaw Semi-Steel Independent Chuck (direct mount, solid jaws) $ 1,450
• D1-8: Bison 16” 3-Jaw Forged Steel Scroll Chuck (direct mount, 2pc jaws) $ 5,700
• D1-8: Bison 16” 4-Jaw Forged Steel Independent Chuck (direct mount, 2pc jaws) $ 4,750
• D1-8: Taiwan KC 16” 4-Jaw Semi-Steel Independent Chuck (direct mount, solid jaws) $ 2,400
• D1-11: Bison 20” 3-Jaw Forged Steel Scroll Chuck (direct mount, 2pc jaws) $12,500
• D1-11 Bison 20” 4-Jaw Forged Steel Independent Chuck (direct mount, 2pc jaws) $ 7,500
• D1-11: Taiwan KC 20” 4-Jaw Semi-Steel Independent Chuck (direct mount, solid jaws) $ 3,250 20”
• Face Plate $ 1,500
• Other Chucks Upon Request
SAFETY ACCESSORIES
• Add Limit Switch to Chuck Guard $ 150
• Clear Lexan Chuck Guard [Installed] $ 500
• Leadscrew Guard [60” / 90” Lengths Only] $1050 / $1150
• Travelguard Tool Post Guard [Kingston Installation] $ 550
• Heavy Duty Tool Post Guard [Factory Installation Only] $2,000
• Rear Spindle Cover $ 250
• NRTL / UL Ready [UL/NFPA standards, No Certification] Upon Request
• NRTL / UL Certification Upon Request

DELIVERY:
SUBJECT TO STOCK
