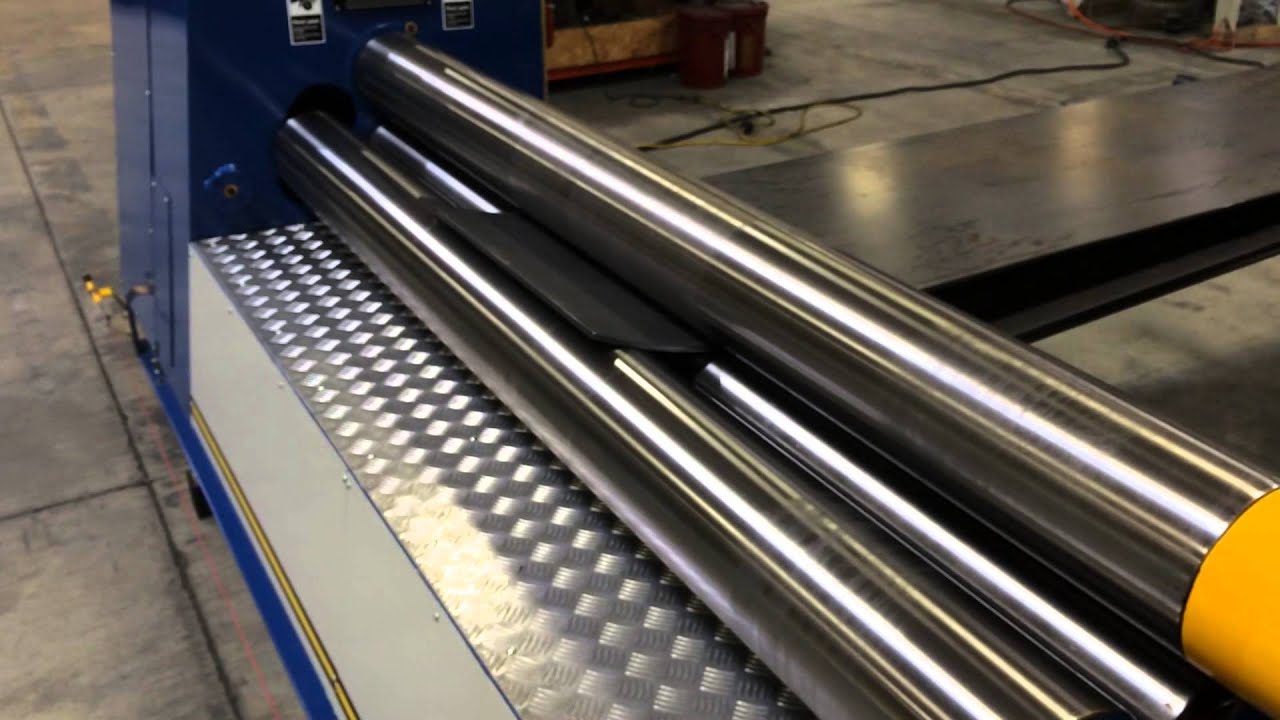

(1) NEW LEMAS HYDRAULIC 4-ROLL DOUBLE-PINCH PLATE BENDING ROLL MODEL 4-TR 180/6

Brand
LEMAS

Model
4-TR 180/6

Stock #
81660

Condition
Not specified

Year
N/A

Equipped With

SPECIFICATIONS: CAPACITIES IN CARBON STEEL TYPE A-36: 6 ft X 1/4 in
DIAMETER OF ALL ROLLS: 7.10 in
ROLLING SPEED - APPROXIMATELY 16 ft PER MINUTE
TOTAL CONNECTED MOTOR POWER @ 480 VOLTS-5 HP DRIVE MOTOR
2 HP HYDRAULIC SYSTEM MOTOR
APPROX WEIGHT - 8,650 POUNDS
EQUIPPED WITH: STANDARD EXECUTION
-SPHERICAL ROLLER BEARINGS ON ROLL SHAFTS
-HYDRAULICALLY POWERED ADJUSTMENT OF BOTH SIDE BENDING
ROLLS
-HYDRAULIC TILTING OF BOTH SIDE BENDING ROLLS FOR CONE
ROLLING
-CONE BENDING ATTACHMENT
-DIGITAL READOUTS FOR POSITION OF BOTH BENDING ROLLS
-HYDRAULICALLY OPERATED DROP END FOR QUICK REMOVAL OF
ROLLED
PRODUCT
-HYDRAULIC PINCH ROLL ADJUSTMENT WITH ADJUSTABLE PINCH
PRESSURE WITH PRESSURE GAUGE
-MANUAL TILT OF THE LOWER PINCH ROLL
-DUAL FORWARD/REVERSE ROTATION CONTROLS - CONSOLE MOUNTED
AND
-REMOTE HAND CONTROL ON CABLE
-UPPER AND LOWER PINCH ROLLS DRIVEN
-ALL ROLLS HEAT TREATED TO 50 Rc
-ELECTRICS FOR 3/60/220 OR 480 VOLT OPERATION. LOW VOLTAGE
AT
THE CONTROLS.
-EMERGENCY STOP PALM BUTTON ON THE CONTROL CONSOLE
-EMERGENCY STOP CABLE AROUND THE MACHINE SPECIFICATIONS SUBJECT TO VERIFICATION DELIVERY: SUBJECT TO STOCK
