Included Options With This Machine

• Includes #40 & #82 ROUND PUNCH & DIE PACKAGE (32nd Sizes) - Part 002545.

• Package Details: Includes 12 sets of round punches & dies: 11/32, 15/32, 17/32, 19/32, 21/32, 23/32, 25/32, 27/32, 29/32, 31/32, 1-1/32, 1-3/16.

• Price: Included with machine at $0.00 (Retail Value: $612).

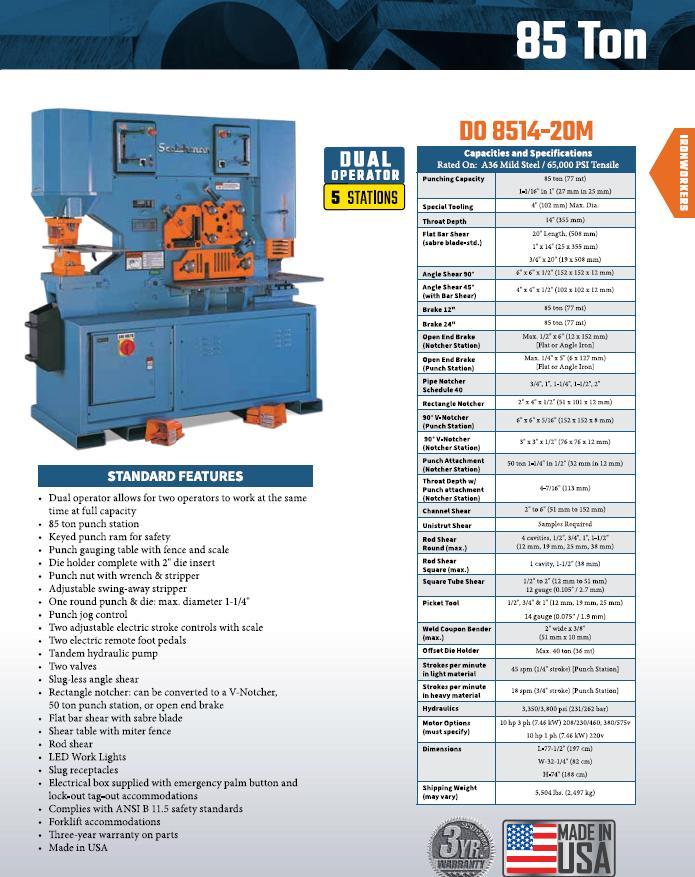

Capacities and Specifications

• Rated On: A36 Mild Steel / 65,000 PSI Tensile.

• Punching Capacity: 85 ton (77 mt).

• Punching Capacity: 1-1/16" in 1" (27 mm in 25 mm).

• Special Tooling: 4" (102 mm) Max. Dia.

• Throat Depth: 14" (355 mm).

• Flat Bar Shear (sabre blade-std.): 20" Length, (508 mm).

• Flat Bar Shear: 1" x 14" (25 x 355 mm).

• Flat Bar Shear: 3/4" x 20" (19 x 508 mm).

• Angle Shear 90°: 6" x 6" x 1/2" (152 x 152 x 12 mm).

• Angle Shear 45° (with Bar Shear): 4" x 4" x 1/2" (102 x 102 x 12 mm).

• Brake 12": 85 ton (77 mt).

• Brake 24": 85 ton (77 mt).

• Open End Brake (Notcher Station): Max. 1/2" x 6" (12 x 152 mm) [Flat or Angle Iron].

• Open End Brake (Punch Station): Max. 1/4" x 5" (6 x 127 mm) [Flat or Angle Iron].

• Pipe Notcher Schedule 40: 3/4", 1", 1-1/4", 1-1/2", 2".

• Rectangle Notcher: 2" x 4" x 1/2" (51 x 101 x 12 mm).

• 90° V-Notcher (Punch Station): 6" x 6" x 5/16" (152 x 152 x 8 mm).

• 90° V-Notcher (Notcher Station): 3" x 3" x 1/2" (76 x 76 x 12 mm).

• Punch Attachment (Notcher Station): 50 ton 1-1/4" in 1/2" (32 mm in 12 mm).

• Throat Depth w/ Punch attachment (Notcher Station): 4-7/16" (113 mm).

• Channel Shear: 2" to 6" (51 mm to 152 mm).

• Unistrut Shear: Samples Required.

• Rod Shear Round (max.): 4 cavities, 1/2", 3/4", 1", 1-1/2" (12 mm, 19 mm, 25 mm, 38 mm).

• Rod Shear Square (max.): 1 cavity, 1-1/2" (38 mm).

• Square Tube Shear: 1/2" to 2" (12 mm to 51 mm) 12 gauge (0.105" / 2.7 mm).

• Picket Tool: 1/2", 3/4" & 1" (12 mm, 19 mm, 25 mm) 14 gauge (0.075" / 1.9 mm).

• Weld Coupon Bender (max.): 2" wide x 3/8" (51 mm x 10 mm).

• Offset Die Holder: Max. 40 ton (36 mt).

• Strokes per minute in light material: 45 spm (1/4" stroke) [Punch Station].

• Strokes per minute in heavy material: 18 spm (3/4" stroke) [Punch Station].

• Hydraulics: 3,350/3,800 psi (231/262 bar).

• Motor included: 10 hp 3 ph (7.46 kW) 208/230/460, 380/575v or 10 hp 1 ph (7.46 kW) 220v.

• Included Specific Motor: 230V/3/60.

• Dimensions: L-77-1/2" (197 cm), W-32-1/4" (82 cm), H-74" (188 cm).

• Shipping Weight (may vary): 5,504 lbs. (2,497 kg).



Economy Fabricating Packages (Available Extra Options / Not Included)

• #40 & #82 ROUND PUNCH & DIE PACKAGE (16th Sizes) - Part 002543: Includes: 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1.

  • Price: $420.00 quoted (Retail: $604).

• #40 & #82 ROUND PUNCH & DIE PACKAGE (Metric) - Part 002544: Includes: 8, 10, 12, 14, 16, 18, 20, 22, 24, 28, 30 & 32.

  • Price: $450.00 quoted (Retail: $612).

• DELUXE #40 PUNCH & #82 DIE PACKAGE - Part 002855: Incl: Rounds - 1/4, 9/32, 5/16, 3/8, 13/32, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1-1/16, 1-1/8, 1-3/16, 1-1/4; Squares - 1/2, 3/4, 7/8; & Ovals - 9/32 x 3/4, 5/16 x 3/4, 9/32 x 1, 5/16 x 1, 13/32 x 1, 7/16 x 1, 17/32 x 1, 9/16 x 1, 9/16 x 1-1/4, 11/16 x 1-1/4, 13/16 x 1-1/4.

  • Price: $1,385.00 quoted (Retail: $2,549).

• 12" BRAKE PACKAGE - Part 002326: Includes: 12" Brake & 12" Brake Table w/Scale & Squaring Arm.

  • Price: $2,490.00 quoted (Retail: $2,855).

• 24" BRAKE PACKAGE - Part 002334: Includes: 24" Brake & 24" Brake Table w/Scale & Squaring Arm.

  • Price: $3,785.00 quoted (Retail: $3,975).

• PIPE NOTCHER PACKAGE - Part 002307: Includes: Housing, 1-1/4" Sch. 40 Pipe Dies, 1-1/2" Sch. 40 Pipe Dies & Punch Pusher.

  • Price: $1,560.00 quoted (Retail: $2,080).

• CHANNEL SHEAR PACKAGE - Part 002354: Includes: 3" Fixed Blade, Moveable Blade & Holddown, 4" Fixed Blade, Moveable Blade & Holddown & Offset Die Holder.

  • Price: $2,655.00 quoted (Retail: $3,230).

• PRODUCTIVITY PACKAGE (MANUAL) - Part 002366: Includes: Universal Tool Cart (1 Drawer Included; must specify), Punch Table Extension & 48" Deluxe Back Gauge.

  • Price: $2,050.00 quoted (Retail: $2,255).

• PRODUCTIVITY PACKAGE (ELECTRIC) - Part 002367: Includes: Universal Tool Cart (1 Drawer Included; must specify), Punch Table Extension & 48" Electric Back Gauge.

  • Price: $3,050.00 quoted (Retail: $3,370).
