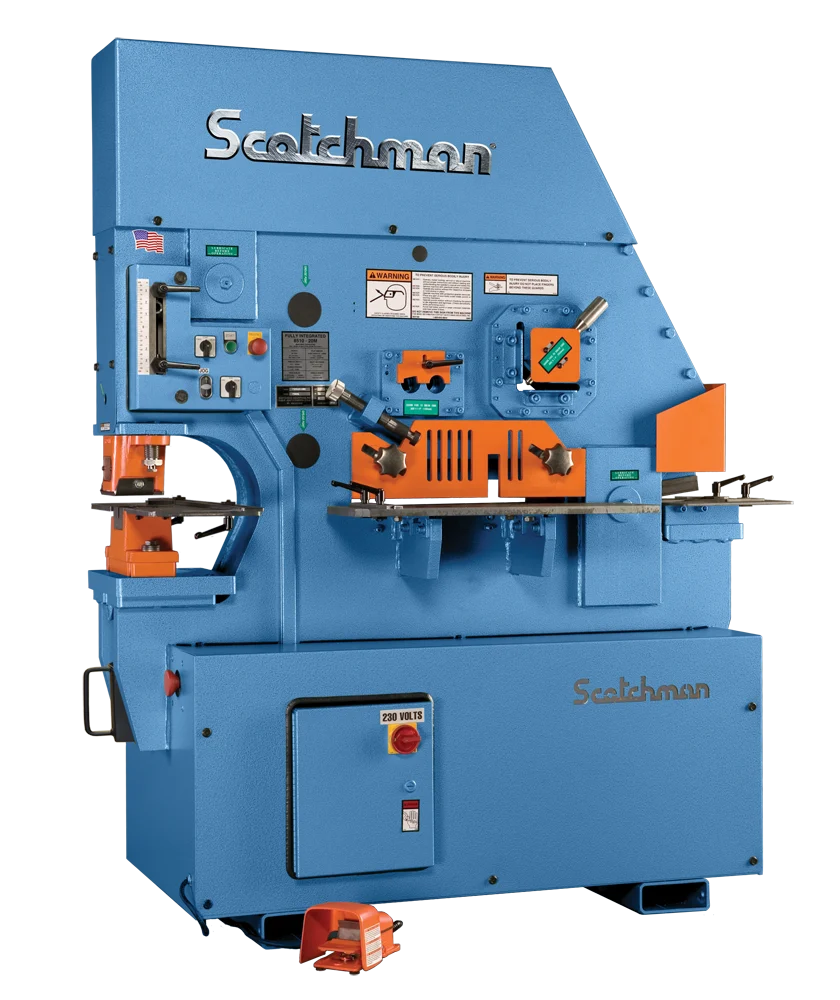

(1) NEW SCOTCHMAN IRONWORKER, MODEL #: FI 8510-20M

Brand
SCOTCHMAN

Model
FI 8510-20M

Stock #
82509

Condition
Not specified

Year
N/A

Equipped With

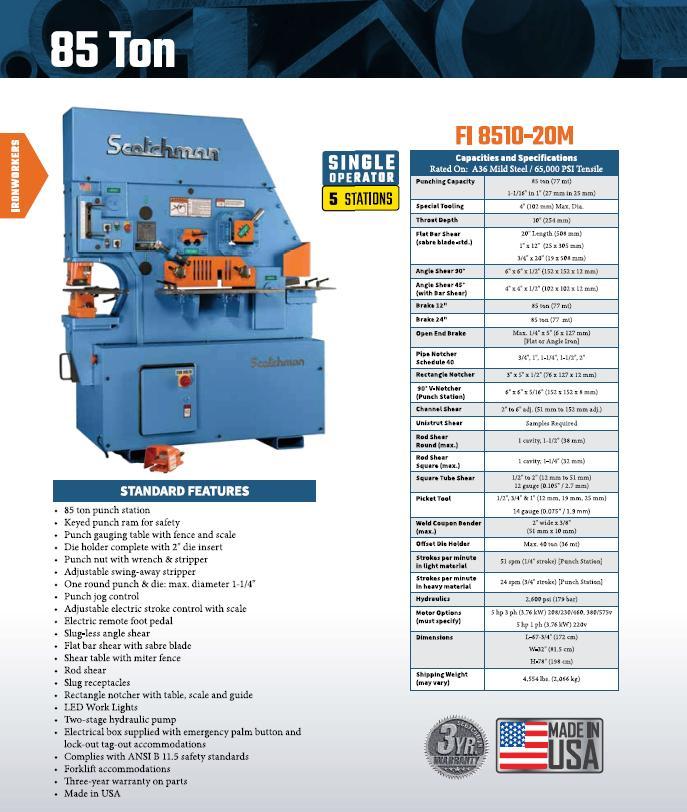

SPECIFICATIONS: RATED ON ----------------- 65,000 PSI TENSILE
OR A 36 MILD STEEL
PUNCHING CAPACITY -------- 85 TON 1-1/16 in IN 1 in
SPECIAL TOOLING ---------- 4 in MAX. DIA.
THROAT DEPTH ------------- 10 in
FLAT BAR SHEAR ----------- 20 in LENGTH
1 in X 12 in
3/4 in X 20 in
ANGLE SHEAR 90?? ---------- 6 in X 6 in X 1/2 in
45?? WITH BAR SHEAR ------- 4 in X 4 in X 1/2 in
BRAKE 12 in ---------------- 85 TON
BRAKE 24 in ---------------- 85 TON
OPEN END BRAKE MAX. ----- 1/4 in X 5 in
FLAT OR ANGLE IRON
PIPE NOTCHER
SCHEDULE 40 I.D. --------- 3/4 in , 1 in , 1-1/4 in , 1-1/2 in , 2 in
90?? V-NOTCHER ------------ 6 in X 6 in X 5/16 in
RECTANGLE NOTCHER -------- 3 in X 5 in X 1/2 in
90?? V. NOTCH ------------- 3 in X 3 in X 1/2 in
CHANNEL SHEAR ------------ 2 in TO 6 in ADJ.
STRUT SHEAR -------------- SAMPLES REQUIRED
ROD SHEAR
ROUND ROD ---------------- 1-1/2 in
SQUARE ROD --------------- 1-1/4 in
SQUARE TUBE SHEAR -------- 1/2 in TO 2 in
12 GA.
PICKET TOOL -------------- 1/2 in , 3/4 in , 1 in , 16 GAUGE
OFFSET DIE HOLDER -------- MAX. 40 TON
STROKES PER MINUTE IN
LIGHT MATERIAL ----------- 1/4 in STROKE [PUNCH STATION]
STROKES PER MINUTE IN
HEAVY MATERIAL ----------- 3/4 in STROKE [PUNCH STATION]
HYDRAULICS --------------- 2,600 PSI
MOTORS STANDARD ---------- 5 HP 3 PH
230/460
208/380/575
MOTORS OPTIONAL ---------- 5 HP 1 PH 230V
DIMENSIONS --------------- W-30 in X L-67 in X H-77 in
SHIPPING WEIGHT ---------- 4,554 LBS. FEATURES: THIS MACHINE HAS FIVE BUILT-IN WORK STATIONS THAT INCLUDE:
85
TONS OF PUNCHING CAPACITY (1-1/16 inch IN 1 inch 65,000 TENSILE
MILD
STEEL), 20 inch WIDE FLAT BAR SHEAR (CAPABLE OF SHEARING 1 inch X
12 inch
AND 1/2 inch X 20 inch), 6 inch X 6 inch X 1/2 inch CROP OFF ANGLE SHEAR, ROUND
AND SQUARE, SOLID ROD SHEAR AND A 3 inch X 5 inch X 1/2 inch RECTANGLE
NOTCHER.

THE FI8510-20M HYDRAULIC IRONWORKER IS 100% AMERICAN-MADE
AND
BACKED BY SCOTCHMAN??S, BEST IN THE BUSINESS, 3-YEAR PARTS
WARRANTY. EQUIPPED WITH: 85 Ton Punch Station (1-1/16 in in 1 in )
Keyed Punch Ram for Safety
10 in Throat Depth
Punch Gauging Tabe with Fence & Scale
Die Holder Complete with 2 in Die Insert
Punch Nut with Wrench & Stripper
Adjustable Swing-Away Stripper
One Round Punch & Die: Max. Dia. 1-1/4 in
Punch Jog Control
Adjustable Electric Stroke Control with Scale
Electric Remote Foot Pedal
6 in x 6 in x 1/2 in Slug-less Angle Shear
20 in Flat Bar Shear (1 in x 12 in , 3/4 in x 20 in )
Shear Table with Miter Fence
Rod Shear Capacity 1-1/2 in Round, 1-1/4 in Square
Rectangle Notcher Capacity 3 in x 5 in x 1/2 in
Notcher Table with Scale and Guide
Two-Stage Hydraulic Pump
Electrical Box Supplied with Emergency Palm Button and
Lock-out
Tag-out Accommodations
230/460 Volt /3 Phase Electrics (must specify voltage)
All Guards Necessary to Comply with ANSI B 11-5 Standards
Forklift Accommodations
Warranty: Three Years on Parts
Made in USA SPECIFICATIONS SUBJECT TO VERIFICATION OPTIONAL FEATURES: SINGLE PHASE MOTOR, 5 HP 220 VOLT / 60 HZ ------- $ 300.00
L.E.D LIGHT PACKAGE-F185 (FACOTRY INSTALLATION) - $ 450.00
LASER LIGHT-BAR SHEAR (FACTORY INSTALLATION) ---- $1,075.00
PUNCH EXTENSION TABLE ------------------------- $ 295.00
36 in PUNCH GAUGING EXTENSION - LH ---------------- $ 795.00
36 in PUNCH GAUGING EXTENSION - RH ---------------- $ 795.00
85 in PUNCH GAUGING EXTENSION - LH ---------------- $1,495.00
85 in PUNCH GAUGING EXTENSION - RH ---------------- $1,495.00
48 in DELUXE BACK GAUGE ------------------------- $ 695.00
48 in ELECTRIC BACK GAUGE ------------------------- $2,275.00
INFEED CONVEYOR (24 in X 5 FOOT W / SUPPORT ARMS)-- $2,695.00
12 inch BRAKE (W/ 2 in V DIES FOR 1/4 in MATERIAL) ------ $1,995.00
24 in BRAKE (W/ 2 in V DIES FOR 1/4 in MATERIAL) ------ $2,695.00
12 in BRAKE TABLE WITH SCALE & SQUARING ARM ------- $ 395.00
24 in BRAKE TABLE WITH SCALE & SQUARING ARM ------- $ 445.00
BRAKE LENGTH GAUGE WITH SCALE ----------------- $ 185.00
OPEN END BRAKE (MAX 1/4 in X5 in FLAT OR ANGLE IRON) - $1,625.00
PIPE NOTCHER HOUSING (SEPARATE DIES FOR EACH
SIZE) ------------------------------------------- $ 295.00
3/4 in SCHEDULE 40 PIPE DIE SET ------------------- $ 620.00
1 in SCHEDULE 40 PIPE DIE SET --------------------- $ 620.00
1-1/4 in SCHEDULE 40 PIPE DIE SET ----------------- $ 645.00
1-1/2 in SCHEDULE 40 PIPE DIE SET ----------------- $ 645.00
2 in SCHEDULE 40 PIPE DIE SET -------------------- $ 675.00
PUNCH PUSHER --------------------------------- $ 190.00
CHANNEL SHEAR (2 in TO 6 in ADJUSTABLE??STD CHANNEL)-- $4,695.00
SQUARE TUBE SHEAR (1/2 in TO 2 in - 14 GAUGE MAX.) -- $1,395.00
90 DEGREE V-NOTCHER (6 in X 6 in X 5/16 in ) ----------- $2,395.00
PICKET TOOL HOUSING* (SEPARATE DIES FOR EACH
SIZE) ------------------------------------------- $1,075.00
1/2 in 14 GAUGE MAX.UPPER & LOWER DIES --------- $ 395.00
3/4 in 14 GAUGE MAX. UPPER & LOWER DIES --------- $ 395.00
1 in 14 GAUGE MAX. UPPER & LOWER DIES ------------- $ 395.00
#45 RETAINING NUT (PUNCHING FROM 1-9/32 in
TO 1-9/16 in ) ------------------------------------- $ 90.00
HEAVY DUTY RETAINING NUT (OVERSIZED PUNCHING
FROM 1-19/32 in TO 4 in ) -------------------------- $ 395.00
WRENCH FOR HEAVY DUTY RETAINING NUT ------------- $ 50.00
DIE INSERT FOR 2-1/2 in O.D. DIES ----------------- $ 175.00
DIE INSERT FOR 3 in O.D. DIES --------------------- $ 175.00
DIE HOLDER FOR 6 in X 6 inch DIES --------------------- $ 580.00
OFFSET DIE HOLDER FOR FLANGE PUNCHING (2 in O.D.
DIES ONLY ?? MAXIMUM 40 TON) --------------------- $ 725.00
URETHANE STRIPPER ASSEMBLY ---------------------- $2,475.00
WELD COUPON BENDER-F185 & DO85 (MAX 3/8 in X2 in X7 in ) - $1,795.00
HYD. BAR SHEAR HOLD DOWN (FACTORY INSTALL) ------ $2,495.00
#40 & #82 ROUND PUNCH & DIE PACKAGE ------------- $ 350.00
DELUXE #40 PUNCH & #82 DIE PACKAGE -------------- $1,150.00
12 in BRAKE PACKAGE ------------------------------- $2,175.00
24 in BRAKE PACKAGE ------------------------------- $2,850.00
PIPE NOTCHER PACKAGE ---------------------------- $1,395.00
CHANNEL SHEAR PACKAGE --------------------------- $4,595.00
PRODUCTIVITY PACKAGE (MANUAL) ------------------- $4,395.00
PRODUCTIVITY PACKAGE (ELECTRIC) ----------------- $5,695.00 DELIVERY: SUBJECT TO STOCK
