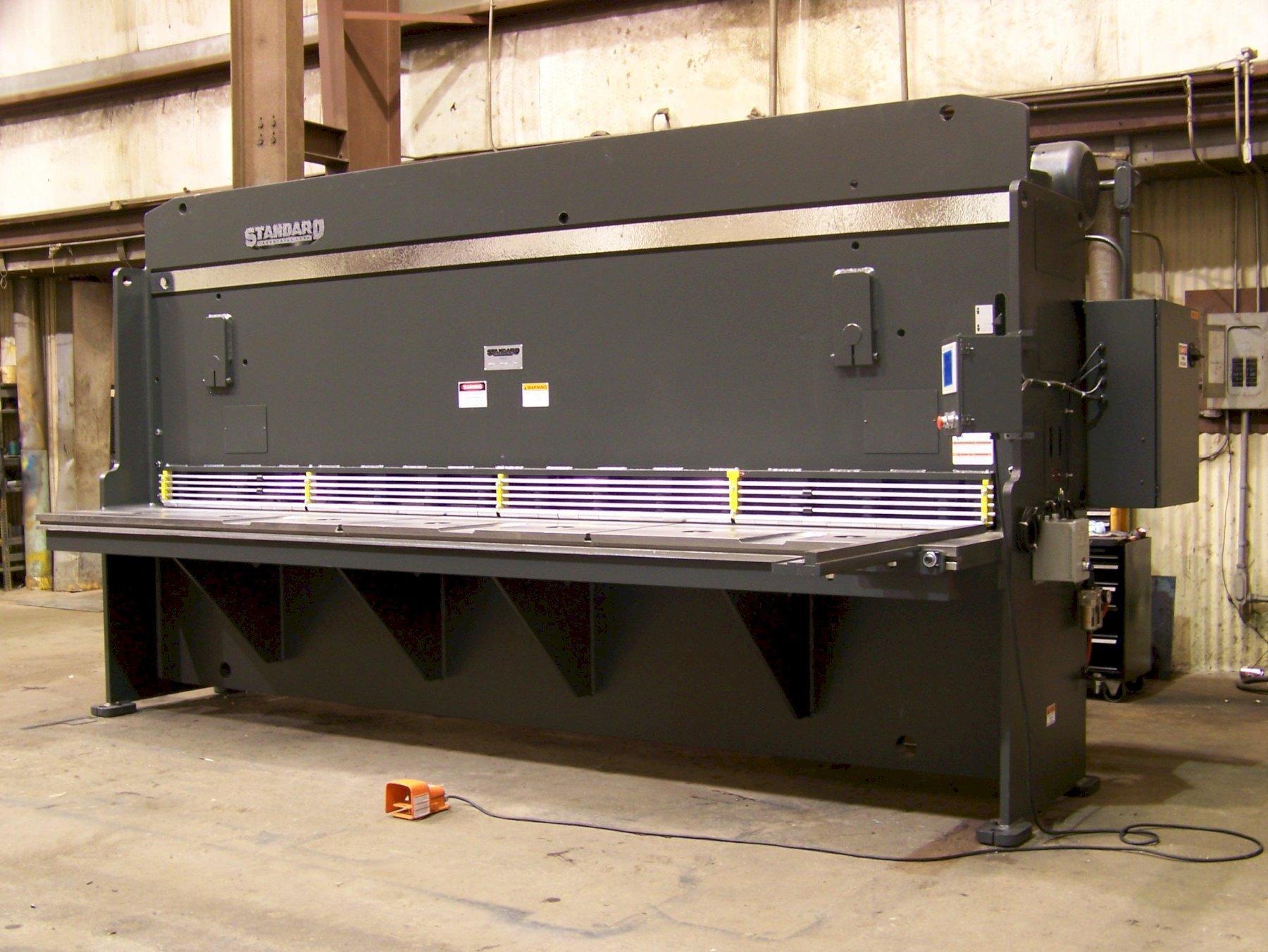

1 NEW STANDARD HYDRAULIC POWER SQUARING SHEAR, MODEL AS250-16

1 - NEW STANDARD HYDRAULIC POWER SQUARING SHEAR, MODEL #: AS250-16

Brand
STANDARD

Model
AS250-16

Type
Shears, Power Squaring (In)

Stock #
82239

Condition
New

Year
N/A

Request a Quote

SPECIFICATIONS
FILES & ATTACHMENTS

Capacity (to Mild Steel)	1/4" x 16'
Capacity (to Stainless Steel)	10 ga. x 16'
Shearing Tons Available	36
Rake (In Inches per Foot)	1/4"
Shipping Height	100 inches
Width	228 inches
Depth	98 inches
Number of Hold Down Cyclinders	17
Bore of Hold Down Cylinders	2 inches
Hold Down Tons of Force	45
Blade Size	1" x 4" x 196"
Weight	44000 pounds
Horsepower	30
Strokes per Minute	Full Width Cut: 12, 12” Wide Cut: 38
Below Grade	no
Ram Speed in Inches per Minute-Down	179
Ram Speed in Inches per Minute-Up	173

Equipped With

FEATURES:
« All Components Readily Available from Your Local Suppliers
« Precision Guillotine Drive Providing the Best Shearing System Available
« Super heavy duty, 36" travel, precision ball screw backgauge with 500 IPM travel speed.
« Backgauge includes manual swing-away backstop, programmable X-retract and up to 200 programmable jobs via Cybelec control.
« Manual, side adjustable, quick-change blade gap adjustment
« Off the shelf Cybelec shear control with 200 job programmability
« 80,000 PSI Capacity rated
« 5 Year Parts Warranty
« 5 Year limited onsite labor warranty
« Lifetime telephone support at no charge
« 4’ squaring arm with scale
« (2) Hand slots in the table
« (2) T-slots in shear table
« T-slot across front edge of shear table
Optional Features:
See PDF attached (August 2023 Model AS Shears Options)
