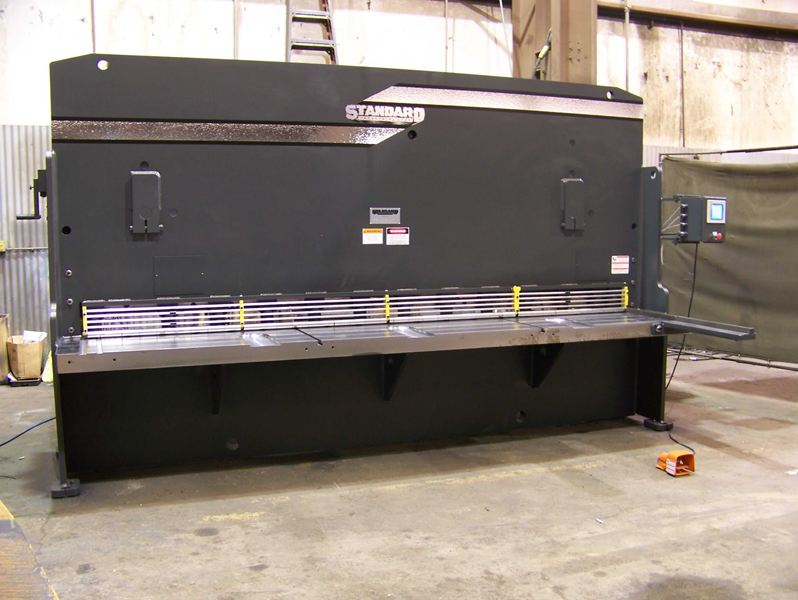

SPECIFICATIONS: CAPACITY - MILD STEEL --------------------- 3/8 x 12 ft
SHEARING TONS AVAILABLE ------------------- 60
RAKE IN/FT -------------------------------- .4 in
HEIGHT ------------------------------------ 100 in
WIDTH ------------------------------------- 174 in
DEPTH ------------------------------------- 90 in
NUMBER OF HOLD DOWN CYLINDERS ------------- 13
BORE OF HOLD DOWN CYLINDERS --------------- 2 in
HOLD DOWN TONS FORCE ---------------------- 48
BLADE SIZE -------------------------------- 1 in X3 in X148 in
WEIGHT ------------------------------------ 30,000 LBS.
HORSEPOWER -------------------------------- 30
STROKES PER MINUTE (FULL WIDTH) ----------- 9
(12 in WIDE) ------------- 30
RAM SPEED IPM DOWN ------------------------ 125
IPM UP -------------------------- 178
BELOW GRADE ------------------------------- NO OPTIONAL FEATURES: SQUARING ARMS: (TOTAL LENGTH FROM EDGE OF BLADE)
ADDITIONAL 4 ft SQUARING ARM WITH SCALE ----- $800.00
(2 ft OFF TABLE)
8 ft SQUARING ARM WITH SCALE ---------------- $1,300.00
(6 ft OFF TABLE)
12 ft SQUARING ARM WITH SCALE --------------- $1,800.00
(10 ft OFF TABLE)

All arms mounted on right hand side. Also available by
request on left side of shear -LOW END OF RAKE IS ON RIGHT

TABLE MACHINING OPTIONS:
ADDITIONAL T-SLOTS MACHINED IN TABLE (F-B) -EA- $190.00
ADDITIONAL HAND SLOTS MACHINED IN TABLE --- EA- $300.00

T-SLOT ACROSS FRONT EDGE OF SHEAR TABLE - FOR SLIDING
OPTIONAL SUPPORT ARMS ACROSS FRONT EDGE OF SHEAR TABLE
PER FT. -------------------------------------- $100.00


BALL TRANSFERS(HEAVY DUTY TRANSFERS ALLOW EASY MATERIAL
HANDLING):

NOTE: BALL TRANSFERS ARE STANDARD ON ALL 14 ft AND LONGER
AND
1/2 in AND LARGER SHEARS. THESE TRANSFERS ARE MOUNTED IN
HOLES
IN THE TABLE.

6 ft SHEAR - 3 TRANSFERS --------------------- $1,000.00
8 ft SHEAR - 4 TRANSFERS --------------------- $1,300.00
10 ft SHEAR - 5 TRANSFERS -------------------- $1,700.00
12 ft SHEAR - 6 TRANSFERS -------------------- $1,900.00

TRANSFERS MOUNTED ON SQUARING AND/OR SUPPORT ARMS --
$350.00
EA

SUPPORT ARMS:
24 in ARMS
(1)T-SLOT SUPPORT ARM ------------------- EA. $450.00
(1)T-SLOT SUPPORT ARM W/EMBEDDED SCALE ---EA. $600.00
(NO SCALE IN TABLE)
(1)T-SLOT SUPPORT ARMS W/SCALE & T-SLOT - EA. $1,400.00
(W/SCALE IN TABLE)

36 in ARMS
(1)T-SLOT SUPPORT ARMS------------------ EA. $800.00
(1)T-SLOT SUPPORT ARM W/EMBEDDED SCALE-- EA. $900.00
(NO SCALE IN TABLE)
(1)T-SLOT SUPPORT ARMS W/SCALE & T-SLOT- EA. $1,400.00

48 in ARMS
(1)T-SLOT SUPPORT ARM ------------------- EA. $1,000.00
(1)T-SLOT SUPPORT ARM W/ EMBEDDED SCALE-- EA. $1,300.00
(NO SCALE IN TABLE)
(1)T-SLOT SUPPORT ARM W/SCALE & T-SLOT IN THE TABLE
W/EMBEDDED SCALE -------------------------- EA. $1,900.00

ACCESSORIES FOR SQUARING ARMS & T-SLOTS:
SWING STOP FOR SQUARING ARM --------------- EA. $550.00
(1)DISAPPEARING (GRAVITY) STOP FOR T-SLOT - EA. $350.00
PROTRACTOR FOR ANGLE SHEARING ------------- EA. $750.00

BACKGAUGE OPTIONS:
48 in TRAVEL BACKGAUGE IN LIEU OF 36 in
(THIS OPTION WILL CAUSE OVER-WIDTH SHIPMENT. NOT REQUIRED
IF
POWER SWING-AWAY ORDERED)--------------------- $1,700.00

POWER SWINGAWAY BACKGAUGE WITH 48 in TRAVEL ---- $3,700.00

SWINGS ENTIRE BACKGAUGE UP AND OUT OF WAY AUTOMATICALLY
AT END OF TRAVEL-THIS OPTION COMES WITH 48 in TRAVEL. WILL
CAUSE OVER-WIDTH SHIPMENT. (MANUAL SWING-AWAY IS STANDARD
ON ALL SHEARS)

INFINITELY VARIABLE, QUICK CHANGE BLADE GAP ADJUSTMENT:
BLADE GAP IS SET AUTOMAMTICALLY VIA THE CYBELEC CONTROLS
WHEN
OPERATOR INPUTS MATERIAL THICKNESS--------------- $5,100.00


AUTOMATIC LUBRICATION SYSTEM:
** REQUIRES AIR SUPPLY (80 PSI/.2 CFM) **
ALL 10 GAUGE, 1/4 in AND 3/8 in X SHEARS UP TO 12 ft ONLY
REQUIRE
LUBRICATION OF THE GIBBS. ALL 1/2 in AND LARGER AND 14 ft AND
LONGER SHEARS COME STANDARD WITH A MANIFOLD CENTRALIZED
LUBE SYSTEM AND ARE AVAILABLE WITH THE AUTO LUBRICATION
SYSTEM. THE AUTO LUBE SYSTEM AUTOMATICALLY FEEDS THE
REQUIRED EP-1 GREASE TO THE LUBRICATION POINTS ON THE
MACHINE VIA A GREASE RESERVOIR ------------- $4,100.00

POWER RAKE ADJUSTMENT:
RAKE IS SET AUTOMATICALLY VIA CYBELEC CONTROL WHEN
OPERATOR
INPUTS MATERIAL. THIS WILL MAKE THE RAKE FLATTER ALLOWING
LESS DISTORTION IN THIN STRIPS OF MATERIAL. ---- $5,500.00

PAINT COLOR:
STANDARD COLOR IS BLUE WITH WHITE TRIM.
CHARCOAL GREY CAN BE ORDERED AT N/C, MUST BE REQUESTED
ON
PURCHASE ORDER.
SPECIAL COLOR-SINGLE COLOR ONLY SAMPLE MUST BE SUPPLIED
------------------------------------------$700.00

SHEAR BLADES:
HI-CARBON, HI-CHROME BLADES IN LIEU OF STANDARD BLADES.
RECOMMENDED FOR CUSTOMERS USING APP. 75% OR MORE
STAINLESS

8 ft AND 10 ft SHEARS ----------------------- $900.00
12 ft SHEARS -------------------------------$1,000.00
14 ft SHEARS ------------------------------ $1,100.00
16 ft SHEARS ------------------------------ $1,200.00
20 ft SHEARS -------------------------------$1,400.00

EXTRA SET OF STANDARD SHOCK RESISTANT-HCHC BLADES- $
P.O.R

HOLD DOWN CYLINDERS:
CYLINDERS WITH IMPACT PADS-FOR MAR-FREE APPLICATIONS-
-------------------------------------------------$750.00
ADDITIONAL IMPACT PADS FOR HOLD DOWN CYLINDERS FOR 10 GA.,
1/4 in AND 3/8 in SHEARS --------------------------- $25.00 EA

FOR 1/2 in AND LARGER SHEARS ----------------------$45.00 EA.
EXTRA HOLD DOWN CYLINDER OPPOSITE SIDE OF SHEAR -$650.00

INDEPENDENT HOLD DOWN ACTUATION - ACTUATES ALL HOLD
DOWNS
SIMULTANEOUSLY WITHOUT ACTUATING RAM ------------$1,8000.00

CNC SQUARE GAUGE/FRONT GAUGE SYSTEMS:
PRICES INCLUDE: SWING ARM PENDANT MOUNT FOR CONTROL AND
SLOTS IN TABLE FOR DRIVES (IF ORDERED WITH NEW MACHINE).
ALL PRICING IS SUBJECT TO CHANGE FOR MACHINES ALREADY IN
FIELD. BELOW ARE FREQUENTLY USED COMBINATIONS, CONTACT
FACTORY FOR SPECIAL COMBINATIONS. PRICING SUBJECT TO
CHANGE
AT ANY TIME.

PNEUMATIC SHEET SUPPORT SYSTEMS:(PRICES INCLUDE
INSTALLATION)
CONTACT FACTORY FOR OTHER LENGTH SYSTEMS. QUOTED
SYSTEMS
ARE FOR 10 GA. ALSO SHEET SUPPORT SYSTEMS:(DOES NOT
INCLUDE
CONVEYORS OR STACKERS)
MODEL 36 in TRAVEL
AS250-6 $11,900.00
AS250-8 $13,300.00
AS250-10 $14,600.00
AS250-12 $16,000.00
AS250-14 $18,400.00
AS250-16 $21,200.00

FOR 48 in TRAVEL ADD ------------------------$2,100.00
FOR 3/8 in SHEARS ADD ---------------- CONTACT FACTORY

CONVEYORS:
**PRICES INCLUDE ABOVE SHEET SUPPORTS & TRIM CUT
CONTAINERS**
MODEL
AS250-6 $26,800.00
AS250-8 $27,900.00
AS250-10 $29,600.00
AS250-12 $30,900.00
AS250-14 $34,700.00
AS250-16 $40,400.00

FOR 48 in TRAVEL ADD --------------------------------
$1,800.00
FOR 3/8 in SHEARS ADD -------------------------------
$2,000.00
FOR 1/2 in SHEARS ADD -------------------------------
$2,500.00

STACKERS: (PRICES BASED ON ORDER W/CONVEYOR)
MODEL
AS250-6 $9,300.00
AS250-8 $9,500.00
AS250-10 $9,700.00
AS250-12 $9,900.00
AS250-14 $10,500.00
AS250-16 $10,900.00

ELECTRIC COUNTER ------------------------------ $600.00
ADDITIONAL SCRAP CONTAINER -------------------- $700.00
REMOTE ON/OFF SWITCH -------------------------- $600.00
MAR-FREE CONVEYING FOR 10 ft & UNDER SYSTEMS -----$1,600.00
12 ft SYSTEMS -------------$2,100.00

OIL COOLER:
FAN RADIATOR TYPE:
THIS IS STANDARD ON ALL 3/4 in AND LARGER SHEARS AND WITH
ALL OPTIONAL HI-SPEED SYSTEMS ---------------- $2,100.00

HIGH SPEED SYSTEMS:
horsepower WILL INCREASE WITH HI-SPEED SYSTEMS
NORMAL FULL HIGH SPEED FULL
LENGTH SPM LENGTH SPM
AS250-10 - 15 20 ----
$5,500.00
AS250-12 - 14 19 ----
$5,500.00
AS375-10 - 13 21 ----
$5,900.00
AS375-12 - 9 18 ----
$5,900.00
AS500-10 - 9 17 ----
$7,900.00
AS500-12 - 8 14 ----
$8,000.00

CONTACT FACTORY FOR OTHER HI-SPEED SYSTEMS
SAFETY SYSTEMS:
LIGHT CURTAIN SAFETY BARRIER SYSTEM IN LIEU OF STANDARD
AWARENESS BARRIER -------------------------- $4,800.00

CAN ALSO BE QUOTED ON BACK OF MACHINE TO ENCLOSE GAUGING
AREA AND/OR IN ADDITION TO STANDARD AWARENESS BARRIER

PHYSICAL BARRIERS/CAGES TO ENCLOSE BACK OF SHEAR:
EXTREMELY HEAVY DUTY CAGE THAT SURROUNDS ENTIRE BACK OF
MACHINE WITH INTERLOCKING GATE SYSTEM THAT SHUTS MACHINE
DOWN WHEN OPEN ----------------------------- $8,100.00

COMPLIANCE OPTIONS:
UL COMPLIANCE, CSA, ZED
AS STANDARD ALL COMPONENTS ARE U.L. LISTED BUT TE SYSTEM
AS A WHOLE IS NOT U.L. COMPLIANT. THE OPTION WILL MAKE THE
MACHINE U.L. COMPLIANT HOWEVER TE MACHINE WILL STILL
REQUIRE A U.L. OFFICER TO FINALIZE THE PROCESS ONSITE AT
FACILITY-------------------------------- $2,500.00
OTHER COMPLIANCE OPTIONS MAY BE AVAILABLE UPON REQUEST.

EXTENTED WARRANTY SERVICE:
THIS PACKAGE INCLUDES:
A 7 YEAR PARTS IN LIEU OF STANDARD 5 YEAR PARTS WARRANTY
A 2 YEAR PLC AND CNC WARRANTY
A 5 YEAR ONSITE LIMITED LABOR WARRANTY

IN THE EVENT OF A PROBLEM THE CUSTOMER WILL BE REQUIRED TO
HELP TROBLESHOOT THE SITUATION OVER THE PHONE. IN THE
EVENT
THE PROBLEM CANNONT BE DIAGNOSED AND TROUBLESHOOTING
HAS
BEEN EXHAUSTED, STANDARD INDUSTRIAL WILL SEND IN A
TECHNICIAN
AT NO CHARGE TO RESOLVE THE SITUATION.
.135, .250 in THROUGH .375 in CAPACITY SHEARS -----$4,500.00
.500 in THROUGH .625 in CAPACITY SHEARS ---------- $5,600.00
.750 in THROUGH 1.500 in CAPACITY SHEARS --------- $7,800.00

START-UP/ TRAINING/ MAINTENANCE SERVICE
ONSITE FACOTORY TRAINING/ START-UP IS NOT INCLUDED OR
REQUIRED WITH PURCHASE OF A NEW SHEAR. DUE TO THE
SIMPLICITY
OF OUR MACHINERY FORMAL TRAINING IS RAREL REQUIRED.
IF ONE DAY TRAINING/ START-UP FOR THE MACHINE IS REQUIRED
ADD TE FOLLOWING CHARGE (DOES NOT INCLUDE PHYSICAL
INSTALLATION/RIGGING/ELECTRICAL HOOK-UP, OIL INSTALLATION:
ALL OF WHICH ARE TO BE COMPLETE BEFORE SERVICE TECHNICIAN
ARRIVES).
PACIFIC/MOUNTAIN TIME ZONE ----------------- $2,900.00
CENTRAL TIME ZONE ---------------------------$1,900.00
EASTERN TIME ZONE ---------------------------$2,500.00
FOR EACH ADDITIONAL DAY REQUIRED ADD ------- $600.00
