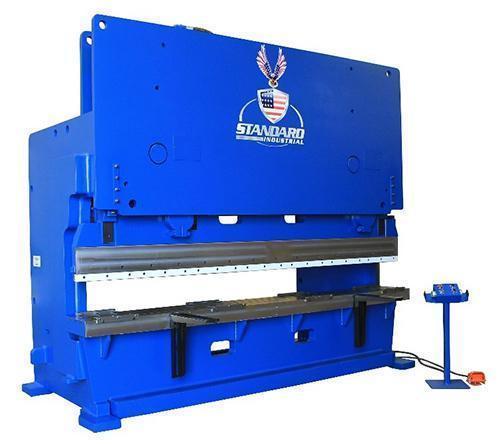

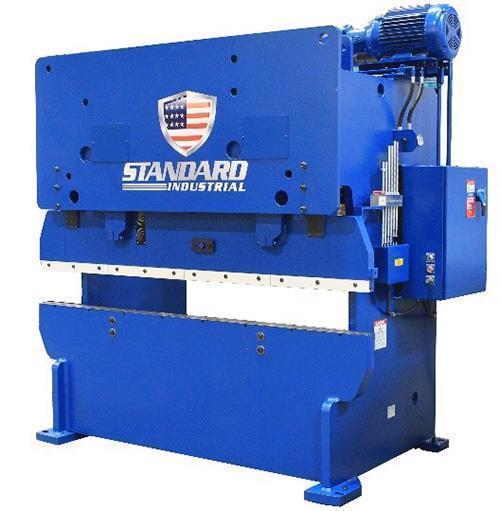

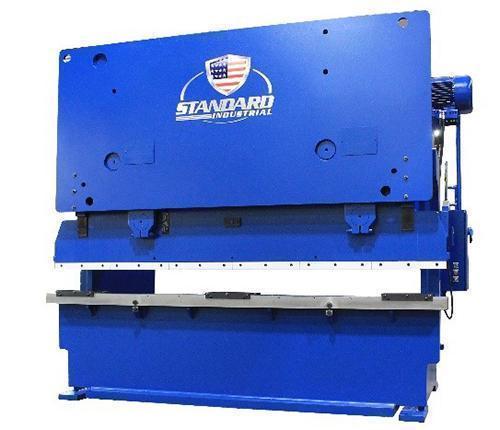

TONNAGE FORMING/PUNCHING 1000/660
DISTANCE BETWEEN HOUSINGS 22’-5”
BELOW GRADE yes
BED/RAM OVERALL LENGTH 24’
WEIGHT (APPROX. LBS.) 230,000
BED WIDTH 14”
BED HEIGHT-This dim. is lowered with full machine pit 80”
OVERALL HEIGHT (approx. BEFORE going below grade) 240”
THROAT DEPTH 10”
RAM STROKE (FULLY ADJUSTABLE) 12”
OPEN HEIGHT (MAXIMUM HEIGHT) 24”
CLOSED HEIGHT (MINIMUM HEIGHT) 12”
HORSEPOWER 100
RAM SPEEDS (IN INCHES PER MINUTE)
APPROACH 45
PRESS 17
RETURN 80
Standard Features:
« 100% Owned, 100% Operated & 100% Manufactured in U.S.A.
« Off the shelf, non-proprietary parts from your local suppliers across all of
North America
« Complete parts manual listing all original manufacturer’s name and part numbers so
you will never have trouble locating parts
« Groove in bed and ram clamps for American Style Tooling (European optional)
« Three sets of extremely heavy duty gibbing for precision ram guidance
« Hydraulic pressure tonnage control
« Readily available service technicians across the U.S.A.
« Perfect for precision full length forming + off-center loading applications
« Continuous tonnage the full length of the bed due to hydra-mechanical drive
« Simple mechanical limit switches control open height, speed change point and lower
limit/angle of the bend (Upgradable to 10+ axis of CNC gauging)
« Counterbalance for punching applications for to up to 2/3 of total tonnage
« UL508A compliant
« +, - .001” ram Repeatability (Upgradeable to +,- .0004”)
« 5 Year Parts Warranty + 5 Year Limited Onsite Labor Warranty
« Lifetime Telephone Support at No Charge
« (4) 24” Work Support Arms that slide l-r in t-slot across front of bed
« Manifold centralized lube system for easy maintenance
« Hand/Foot sequence w/Footswitch with (2) pedestal and (2) footswitch stations for
up to 2 operators
« T-slot across front edge of brake bed
« Forty years of reliable service & steadfast support for every single customerOur knowledgeable staff will assist you with all of you questions.
