Capacities:
Swing over bed 35”
Swing over cross slide 19.6”
Work Piece Weights:
At the headstock 2,000 lbs.
Between chuck and tailstock 11,000 lbs.
Between chuck and tailstock w/steady rest 15,500 lbs.
Between chuck and tailstock w/2 steady rests 17,600 lbs.

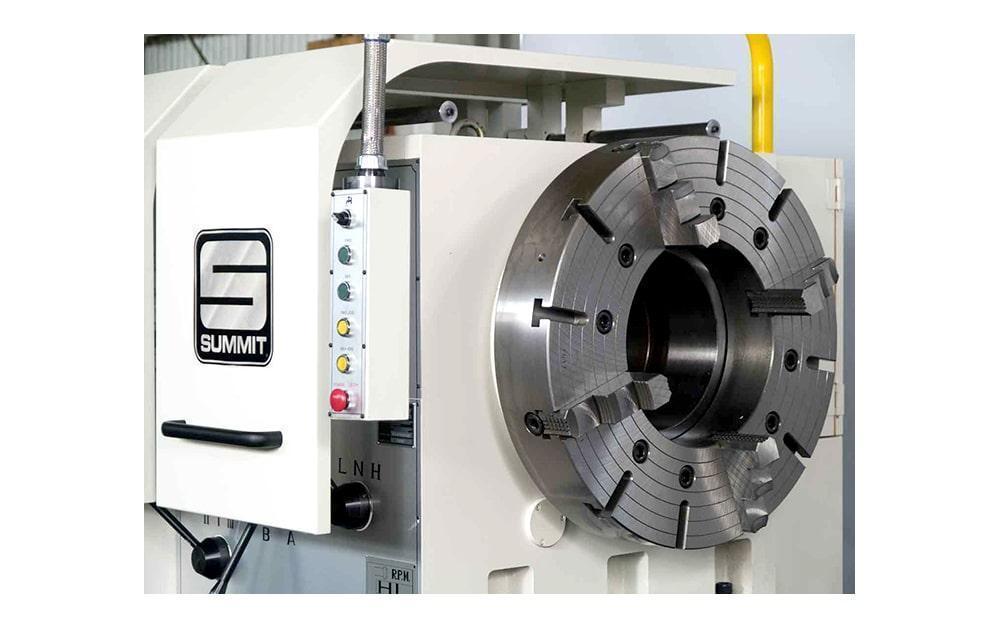

Headstock:
Spindle speeds/Range Inf. Var./3.7-1000
Hole through spindle 6.1”
Spindle nose A2-15
Headstock Center #6 MT
Quick Change Gearbox:
Threads per inch (no.) range (80) 1/16 - 60
Metric threads (no.) range (80) .5 - 480
Module threads (no.) range (80) .125 - 30
Diametral Pitch (no.) range (80) 1 - 240
Longitudinal feeds (no.) range (160) .0013-.1.53
Cross feeds (no.) range (160) .0006-.7657

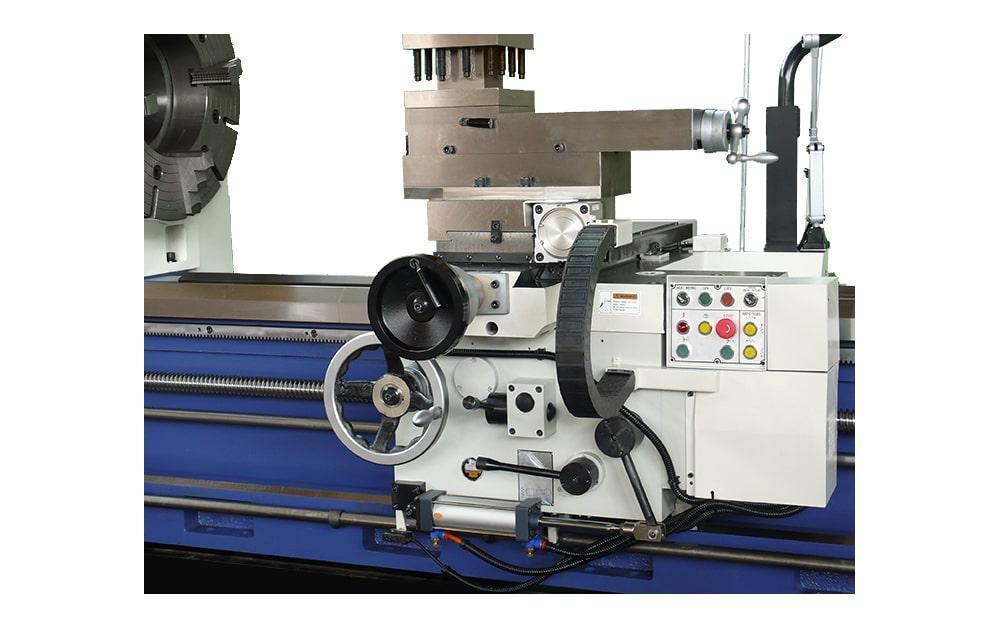

Carriage & Apron:
Cross Slide Travel 20.6”
Compound rest travel 10.6”
Tailstock:
Travel of spindle barrel 9.8”
Diameter of spindle barrel 4.9”
Taper of center #6 MT

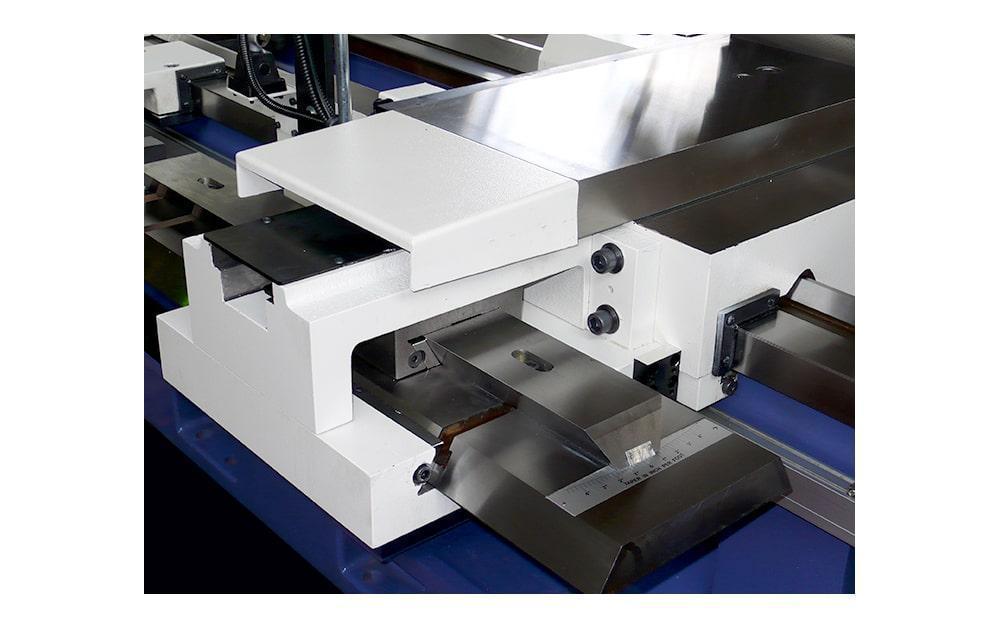

Bed:
Width of bed 27.5”
Hardness of bed (Rockwell C) 42-48”
Taper Attachment:
Degrees of taper +/- 10 Degrees
Maximum turning length per setting 17.75”
Motors:
Main Drive 40 HP
Coolant pump .25 HP
Steady and follow Rest:
Steady rest 2” – 11.75”
Extra Capacity Steady Rest 10” – 21”
Follow rest 3” – 11.75”
Shipping Data:
Overall width 69”
Overall height 70”
Overall length 300”
Weight 25,000 lbs
