1 – NEW SUMMIT 42 – 6 x 160 VS HOLLOW SPINDLE LATHE

1 - NEW SUMMIT 42 - 6 x 160 VS HOLLOW SPINDLE LATHE

Brand
SUMMIT

Model
42-6 X 160 VS

Type
Lathes, Combination

Stock #
87035

Condition
New

Year
N/A

Request a Quote

Files

Summit-HollowSpindleOilCountry0220.pdf

SPECIFICATIONS
FILES & ATTACHMENTS

Equipped With

Specifications:

Capacities

Swing over bed 41.7”

Swing over cross slide 29.5”

Swing over gap 63.4”

Length of gap 22.4”

Work Piece Weights

At The Headstock 4,400 Lbs.

Between Centers 13,200 Lbs.

Between Centers, One Steady Rest 16,500 Lbs.
Between Centers, Two Steady Rests 19,800 Lbs.

Headstock

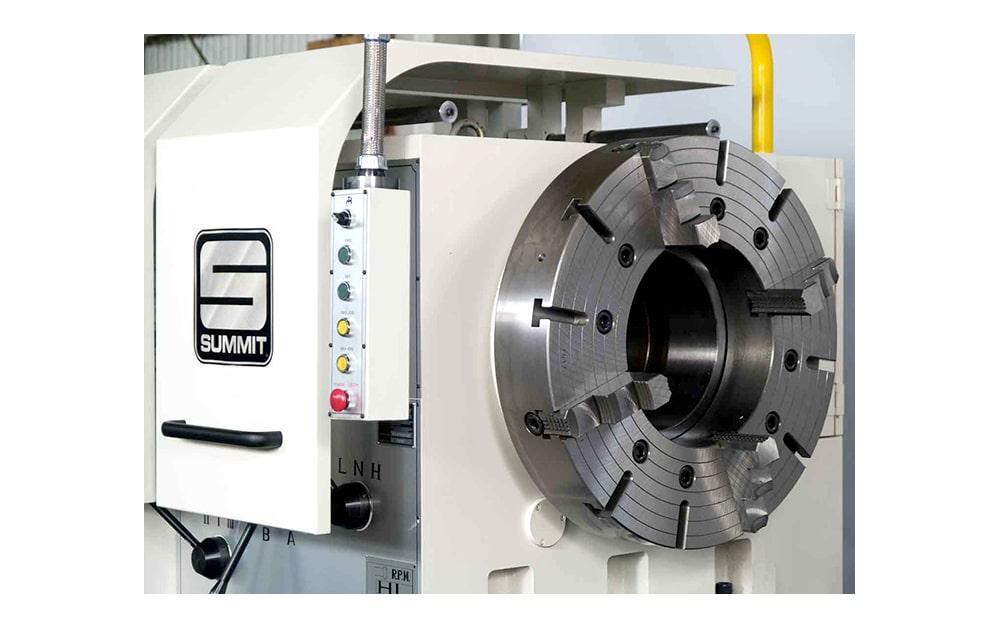

Spindle Bore 6.1”

Spindle Nose A 2 - 11

Spindle Speeds; Number Inf. Var.4 Ranges
Spindle Speeds; Range 9 – 600 RPM

Quick Change Gearbox

Longitudinal feeds (no.) range (48) .005 - .075 IPR
Cross feeds (no.) range (48) .0025 -0378IPR
Threads per inch (no.) range (48) 1 – 16 TPI

Metric threads (no.) range (48) 2 – 30

Module threads (no.) range (32) 1 – 15M
Diametral Pitch (no.) range (48) 2 – 30P
Leadscrew (Dia) range (2”) 2 TPI

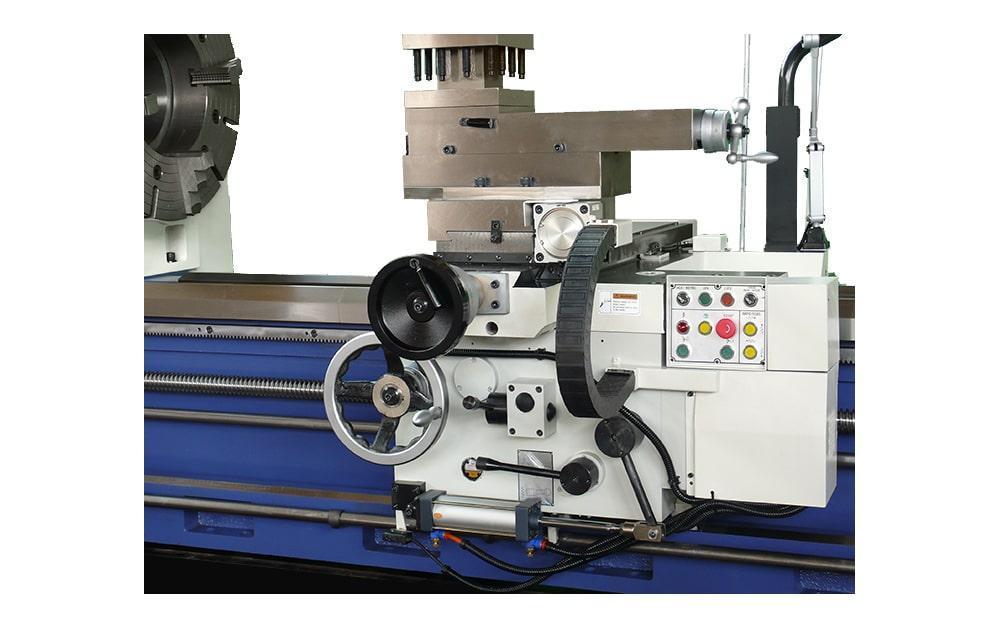

Carriage & Apron

Cross Slide Travel 21.3”

Compound rest travel 11.8”

Tailstock

Quill Diameter 4.9”

Quill Travel 11.8”

Quill Taper MT 6

Two Speed 1:1, 4:1

Bed

Width of bed 22”

Hardness of bed (Rockwell C) 42 – 50

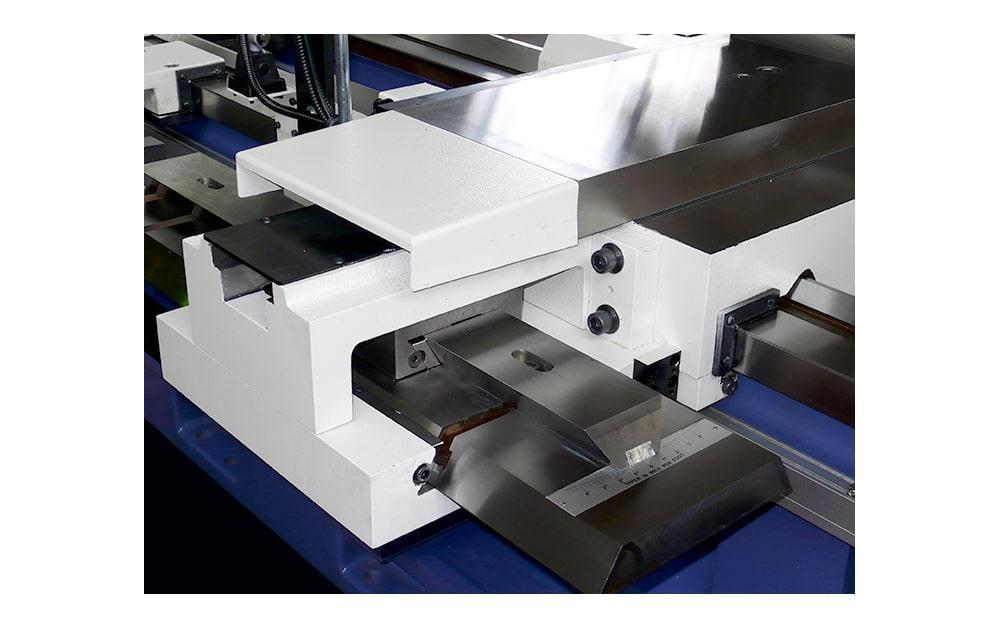

Taper Attachment

Degrees of taper +/- 10 Degrees

Maximum turning length per setting 24”

Motors

Main Drive 30HP

Coolant pump 1/3 HP

Steady and Follow Rest

Standard Steady Rest 5.9” – 14.9”

Follow rest 1.4” – 6.6”

Shipping Data

Overall width 63”

Overall height 93”

Overall length 252”

Weight 26,300 lbs
Electrics
220/440/3/60

Standard Features:

Big 6.1” thru hole

Inch/metric threads w/single switch lever

Cuts most inch/metric threads without change gears Hardened & ground bedways

Forced lubrication to the headstock, carriage

and bedways

Removable gap

Precision (3) bearing spindle

Crossfeed and threading safety interlock

4-way rapid traverse

Two Speed Tailstock

Sliding Front Chuck Guard

Included Accessories:

➢ Standard Steady Rest (5.9” – 14.9”)

➢ Follow Rest

➢ Thread Dial

➢ Coolant System

➢ Taper Attachment

➢ 20” 3 Jaw Chuck

➢ 32” 4 Jaw Chuck

➢ Carriage Stop

➢ Work Light

➢ Full Length Splash Guard

➢ Service Wrenches & Spanners

Options:

Extra Capacity Steady Rest

(11.8” – 20.8”) $6,000

Extra Capacity Steady Rest

(19.6” – 30.7”) $8,000

Rear Spindle Adapter (A2-11)

w/Enclsed Rear Chuck Guard $2,000

Aloris Quick Change Tool Post

w/Holders (2#1, 2#2) $3,750

Newall 2 Axis Digital Readout Installed $7,500 **Installation Assistance TBD
