Capacities:
Swing over bed 42.9”
Swing over cross slide 27.5”
Work Piece Weights:
At the headstock 2,000 lbs.
Between chuck and tailstock 11,000 lbs.
Between chuck and tailstock w/steady rest 15,500 lbs.
Between chuck and tailstock w/2 steady rests 17,600 lbs.

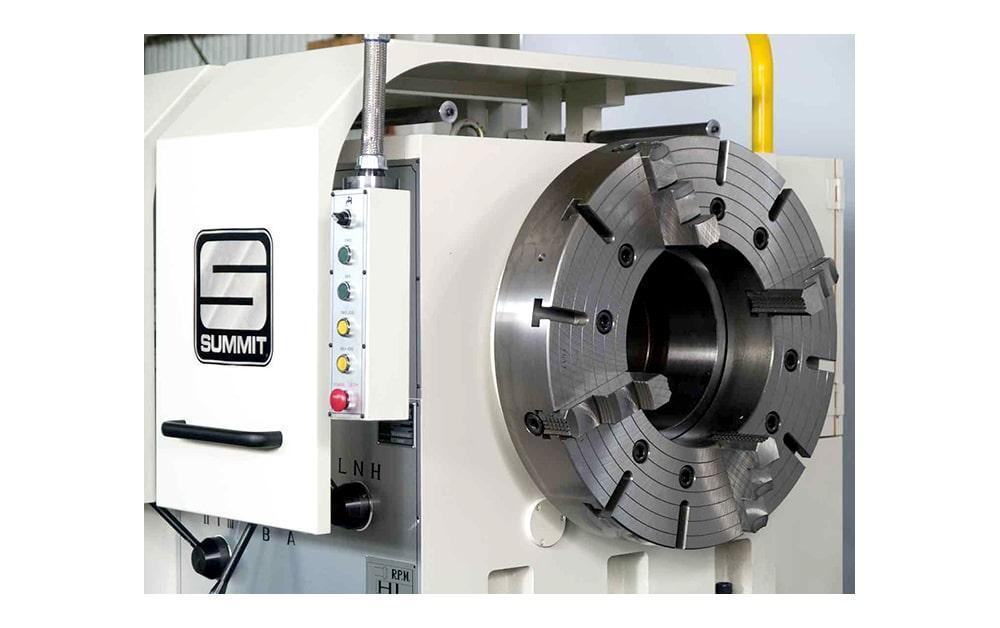

Headstock:
Spindle speeds/Range Inf. Var./3.7-1000
Hole through spindle 6.1”
Spindle nose A2-15
Headstock Center #6 MT
Quick Change Gearbox:
Threads per inch (no.) range (80) 1/16 - 60
Metric threads (no.) range (80) .5 - 480
Module threads (no.) range (80) .125 - 30 Diametral Pitch (no.) range (80) 1 - 240
Longitudinal feeds (no.) range (160) .0013-.1.53 Cross feeds (no.) range (160) .0006-.7657

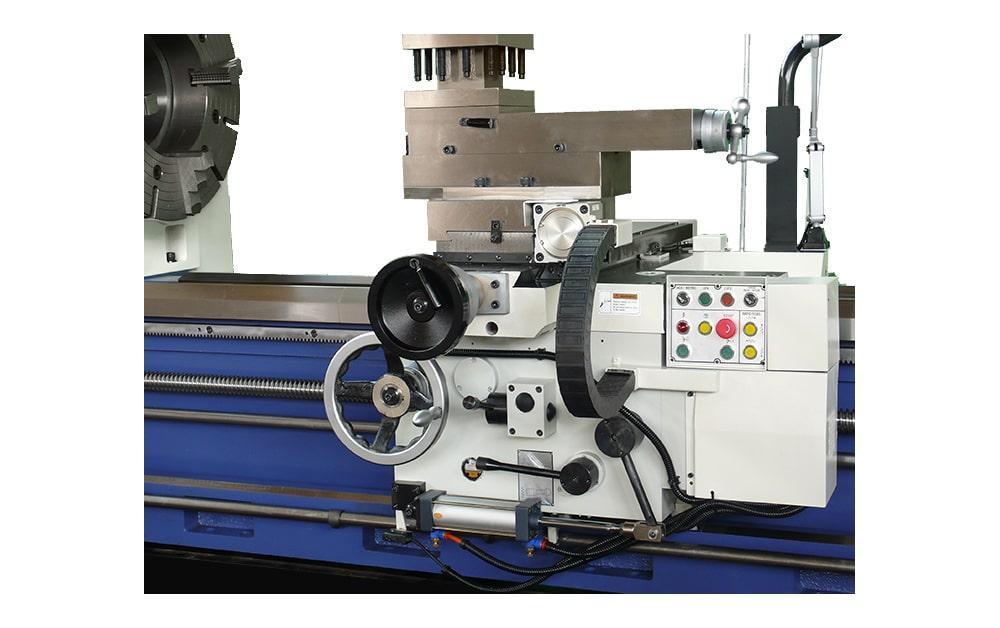

Carriage & Apron:
Cross Slide Travel 20.6”
Compound rest travel 10.6”
Tailstock:
Travel of spindle barrel 9.8”
Diameter of spindle barrel 4.9”
Taper of center #6 MT
Bed:
Width of bed 27.5”
Hardness of bed (Rockwell C) 42-48”
Taper Attachment:
Degrees of taper +/- 10 Degrees
Maximum turning length per setting 17.75”
Motors:
Main Drive 40 HP
Coolant pump .25 HP
Steady and follow Rest:
Steady rest 2” – 11.75”
Extra Capacity Steady Rest 10” – 21”
Follow rest 3” – 11.75”
Shipping Data:
Overall width 69”
Overall height 70”
Overall length 300”
Weight 26,800 lbs
Electrics 440-480/3/60
Standard Features:
Big 6.1” thru hole
Inch/metric threads w/single switch lever
Cuts most inch/metric threads without change gears Hardened & ground bedways
Forced lubrication to the headstock, carriage
and bedways

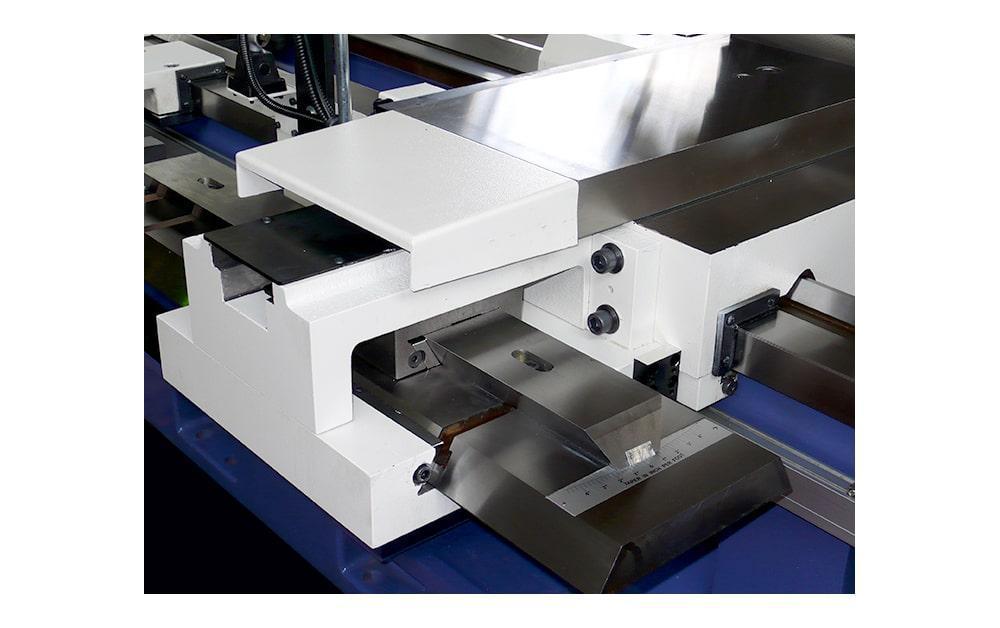

Removable gap
Precision (3) bearing spindle
Crossfeed and threading safety interlock
4-way rapid traverse
Two Speed Tailstock
Sliding Front Chuck Guard
Included Accessories:
➢ Steady Rest (2)
➢ Follow Rest
➢ Thread Dial
➢ Coolant System
➢ Taper Attachment
➢ Carriage Stop
➢ Work Light
➢ Full Length Splash Guard
➢ Service Wrenches & Spanners
Options:
20” Semi Steel 3 Jaw Chuck w/2 Pc Jaws 9,000
20” Steel Body 3 Jaw Chuck w/2 Pc Jaws $13,000
32” Semi-Steel Body4 Jaw Chuck $15,000
32” Steel Body 4 Jaw Chuck $17,000
Aloris Quick Change Tool Post w/Holders (2#1, 2#2) $3,750
Newall 2 Axis Digital Readout Installed $9,500
Fagor 2 Axis Digital Readout Installed $7,500
Input Voltage Other Than 440-460/3/60 TBD
**Installation Assistance TBD
Delivery:
5-6 Months
