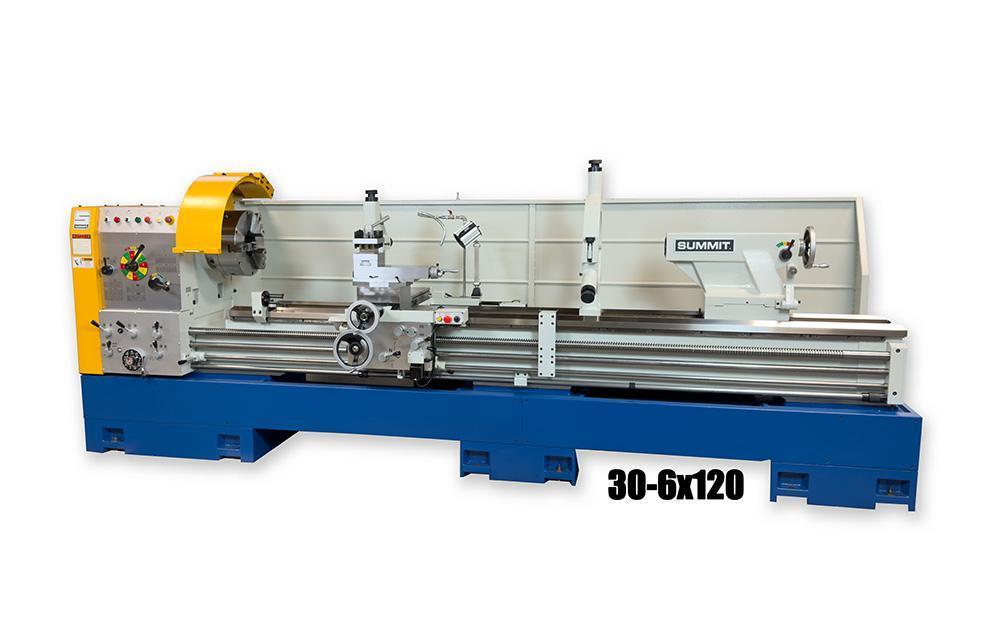

Specifications:
Capacities:
Swing over bed 33”
Swing over cross slide 24 ¾”
Swing over gap 41 ¾”
Length of gap 18”
Work Piece Weights:
At The Headstock 1100 Lbs.
Between Centers 8,800 Lbs.
Between Centers, One Steady Rest 11,000 Lbs.
Between Centers, Two Steady Rests 13,200 Lbs.
Headstock:
Spindle speeds (no.) range RPM (12) 13-800
Hole through spindle 6 1/8”
Spindle nose D1-11 Camlock
Quick Change Gearbox:
Threads per inch (no.) range (36) 2-28 TPI
Metric threads (no.) range (65) .08 – 14mm
Module threads (no.) range (22) .5 – 7M
Diametral Pitch (no.) range (36) 4 – 56P
Longitudinal feeds (no.) range (36) .0019 - .0276
Cross feeds (no.) range (36) .0009 - .0137
Leadscrew (Dia) range (1 ¾”) 2 TPI
Carriage & Apron:
Cross Slide Travel 17 1/8”
Compound rest travel 9”
Tailstock:
Travel of spindle barrel 9”
Diameter of spindle barrel 3 ¾”
Taper of center #5 MT
Two Speed 1:1, 4:1
Bed:
Width of bed 18”
Hardness of bed (Rockwell C) 42 – 50
Taper Attachment:
Degrees of taper +/- 10 Degrees
Maximum turning length per setting 20”
Motors:
Main Drive 20HP
Coolant pump 1/8HP
Steady and Follow Rest:
Standard Steady Rest 2” – 14.9”
Follow rest 1.2” – 5.9”
Shipping Data:
Overall width 54”
Overall height 68”
Overall length 164”
Weight 8,470 lbs
Electrics 220/440/3/60
Standard Features:
Big 6 1/8” thru hole
Inch/metric threads w/single switch lever
Cuts most inch/metric threads without change gears Hardened & ground bedways
Forced lubrication to the headstock, carriage and bedways
Removable gap
Precision (3) bearing spindle
Crossfeed and threading safety interlock
4-way rapid traverse
Two Speed Tailstock
Included Accessories:
* Standard Steady Rest (2” – 14.9”)
* Follow Rest
* Thread Dial
* Coolant System

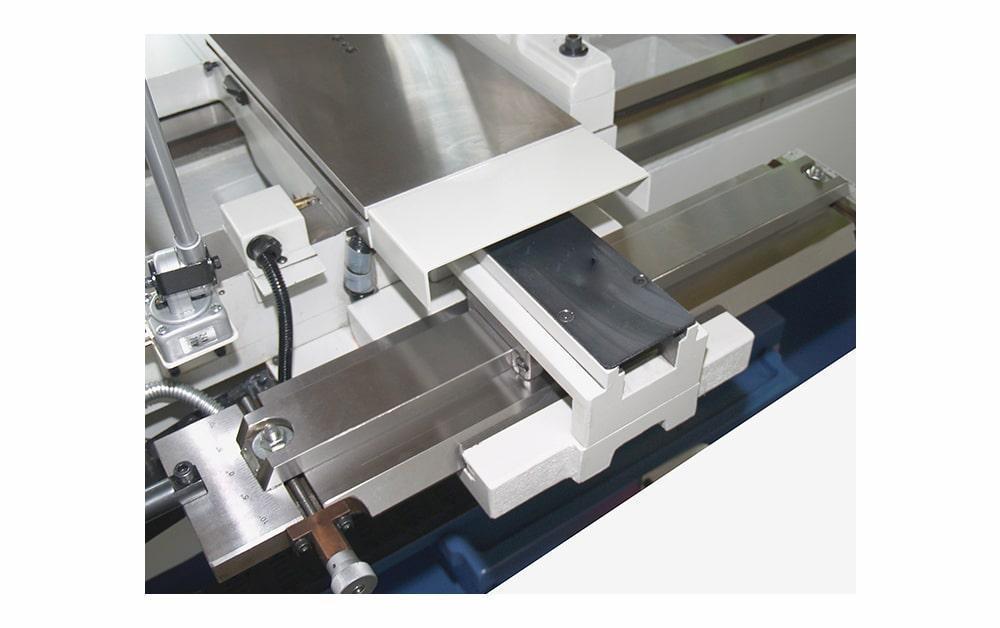

* Taper Attachment
* 3 Jaw Chuck (15 ¾” w/6.1” Bore)

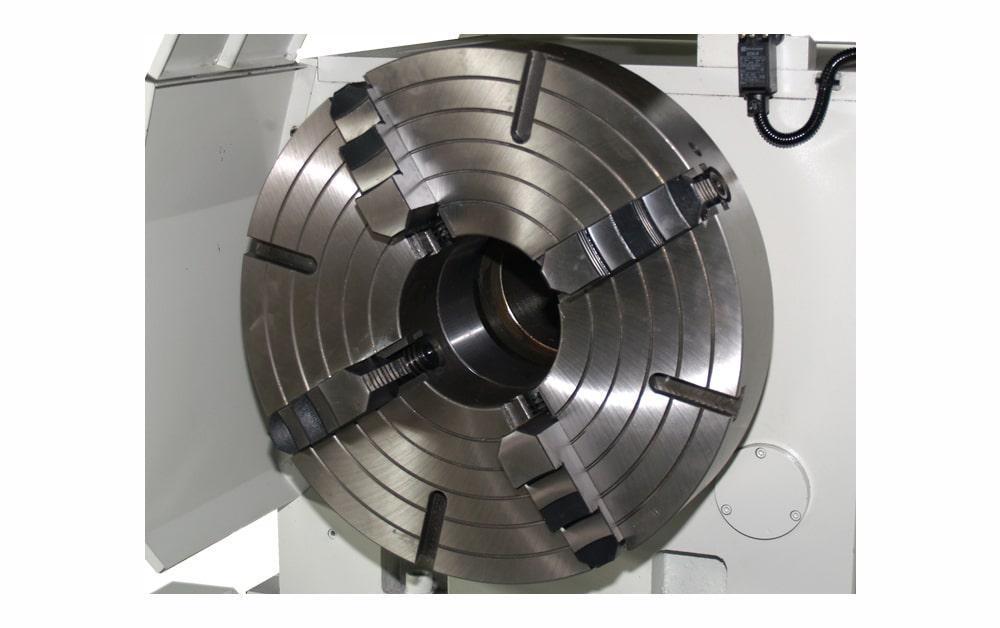

* 20” 4 Jaw Chuck
* Carriage Stop
* Work Light
* Full Length Splash Guard
* Service Wrenches & Spanners
NOTES:SPECIFICATIONS SUBJECT TO VERIFICATION
Options:
Extra Capacity Steady Rest (11.8” – 20.8”) $3,500
20” Steel Body Precision 3 Jaw Chuck w/7.5” Bore and 2 Piece Jaws $15,000
Aloris Quick Change Tool Post w/Holders (2#1, 2#2) $2,500
Adapter Plate to Mount Rear Chuck (D1-11) With Fixed Rear Chuck Guard $2,500
Newall 2 Axis Digital Readout Installed $5,000
Fagor 2 Axis Digital Readout Installed $4,000
**Installation Assistance TBD
**Installation Assistance
Installation assistance is defined as the services provided by a Summit Technician to assist the buyer’s riggers, millwrights and maintenance personnel in setting in place, rough leveling, anchoring and erecting the subject Summit machine. The machine will then be put under power and all machine functions will be tested by the Summit Technician. Final leveling will be completed by the Summit technician after machine functions are verified.
SUBJECT TO STOCK
