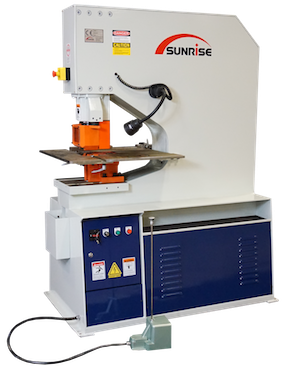

1 - NEW SUNRISE HYDRAULIC PUNCHING MACHINE, MODEL #: PM-88XT

Brand
SUNRISE

Model
PM-88XT

Stock #
86192

Condition
New

Year
N/A

Equipped With

SPECIFICATIONS:
Capacities in Mild Steel
PUNCH
- 88 Tons
PUNCH CAPACITY - 1" in 7/8" | 2" in 7/16"
Throat depth - 30"
Stroke length - 4"
Cycles - 28/min
Working Height - 41.25" to top of die
OTHER:
Motor - 7.5 HP
Electrics - 3/60/220 or 480
Weight - 6,275 lbs
Dimensions - 81" L x 34" W x 78" H
EQUIPPED WITH:
● Patented Double-Acting Punch Cylinder provides faster retraction time
            ● Machined Flat Punch cylinder with 4" stroke length, high-density bronze bushings and adjustable limit switches
● Heavy-Duty adjustable punch stripper with visibility window
● Keyed quick-change punch holder with spanner wrench
● Slug bucket
● Multi-Function foot pedal with jog mode.
● Sandwich construction with a welded and bolted design.
● Reversable Die Block
● Die holder with overhang for punching channel flanges and angle leg-down up to 6"
● Standard punch capacity up to 2"
● T-slot bolster for rapid adjustment of die holder and easy accessory mounting
● Magnetic work light
● Jog or full-stroke functions
● Starter set of 11 SUNRISE type punches and dies 3/8", 1/2", 9/16", 11/16", 13/16", 15/16", 1", 1-1/16", 1-1/4", 1-3/8", 1-1/2", 2"
● Hydraulic and electrical systems with high quality components
● Hydraulic system protected with suction strainer as well as spin-on return line filter
● Low voltage at the controls
● Emergency stop palm button
● Tool kit, and instruction manua
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
* Urethane Stripper with 3 interchangable inserts to accommodate various punch sizes up to 2". 80 Ton capacity limit.: $1,575.00
* Multi Opening Press Brake Attachment indexed front to back - 20" x 3/16" (For thinner sheet metal): $1,950.00
* Multi-Stop Gauging Table with ball transfers and manual positioning system.: $4,950.00
* Single-Vee Press Brake Attachment indexed Front to Back for larger plates - 10 x 1/2" capacity.: $1,650.00
* Angle Leg-Up and Channel Web Stripper. Includes special narrow swing away stripper for easy access to punch (for changeover) using "castle" style punch nut and longer punch stem. Max hole diameter - 1.125": $1,500.00
DELIVERY:
16-18 Weeks
