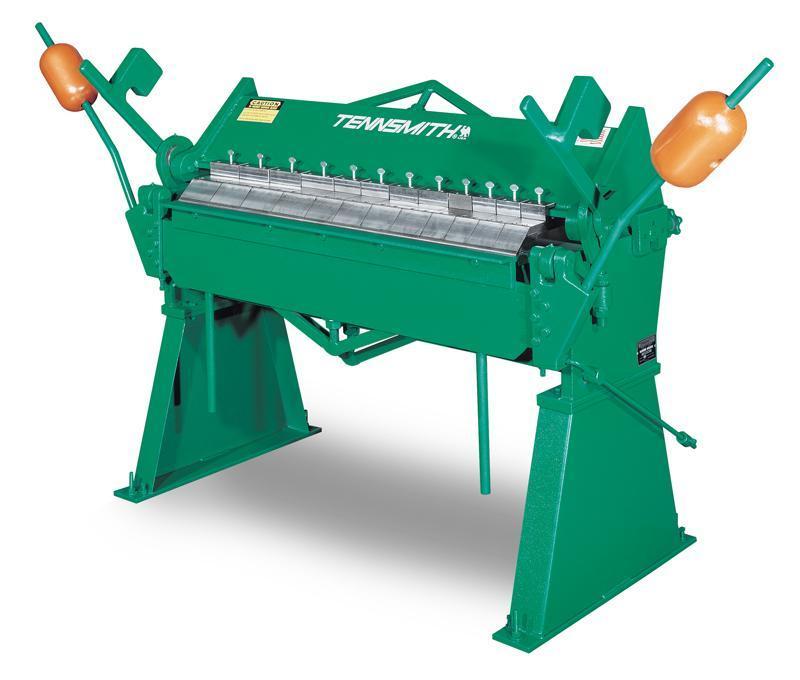

1 – NEW TENNSMITH BOX AND PAN BRAKE, MODEL #: F6-96-12

1 - NEW TENNSMITH BOX AND PAN BRAKE, MODEL #: F6-96-12

Brand
TENNSMITH

Model
F6-96-12

Type
Brakes, Box & Pan (incld Finger)

Stock #
87296

Condition
New

Year
N/A

Request a Quote

SPECIFICATIONS
FILES & ATTACHMENTS

Capacity, Mild Steel	12 ga / 2.7mm
Capacity with bending support angle removed, mild steel	16 ga / 1.6mm
Bending Length	96" / 2,464mm
Maximum Lift of Beam	2.25" / 57mm
Front to Rear Adjustment	1/2" / 12.7mm
Maximum Depth of Box	6" / 152.4 mm
Tooling Widths	3", 4" and 5" / 76.3, 101.6 and 127mm
Minimum Reverse Bend	1/4" / 6mm
Minimum Flange in Capacity Material	1" / 25mm
Dimensions, Counterweights in place, L x W x H	137" x 53" x 60"/ 3480 x 1347 x 1524mm
Weight	3250 pounds

Equipped With

EQUIPPED WITH:

Leveling screws and lock nuts on the pedestals
Jack screws and tensioner bolts on the apron
Truss rods on the apron, base and upper beam
Fully adjustable counter balances to facilitate the bending process
Removable apron angle and insert permit 1/4-inch reverse bends in lighter material

NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
AVAILABLE OPTIONS:
* Extension Fingers (pair) for F6 Models: Right and left Extension Fingers Form Inside Corners with a Return Flange across the Top on Boxes, Cabinets, etc.: $475.00
Open End Fingers (pair) for F6 Models: Provides Triangular, Square, Tapered and Rectangular Tube Forming Abilities.: $625.00
Radius Fingers (Please Specify Radii): $34.00 PER INCH
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
