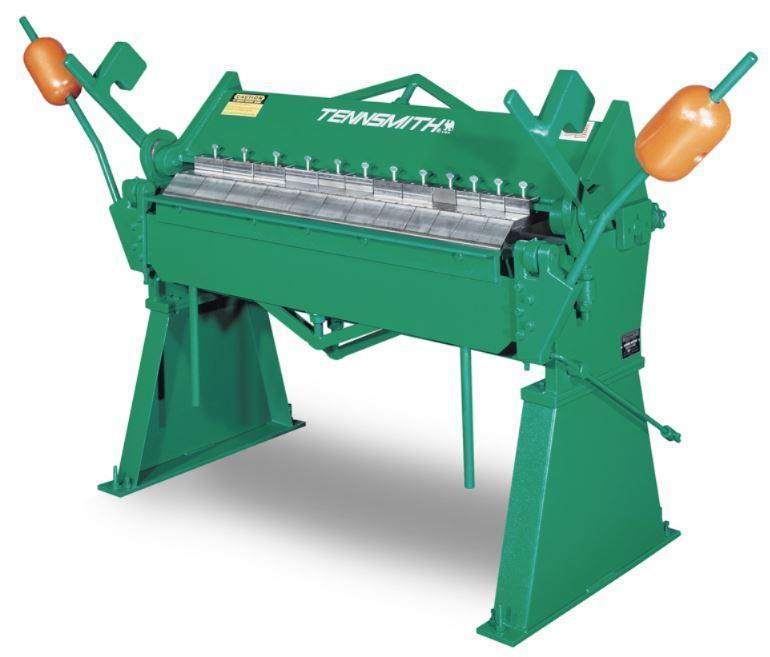

(1) NEW TENNSMITH BOX & PAN HAND BRAKE, MODEL F6 72-12

Brand
TENNSMITH

Model
F6 72-12

Stock #
82150

Condition
Not specified

Year
N/A

Equipped With

SPECIFICATIONS: CAPACITY (MILD STEEL) --------------- 12 GAUGE
CAPACITY WITH BENDING SUPPORT ANGLE
REMOVED, (MILD STEEL) -------------- 16 GAUGE
BENDING LENGTH ---------------------- 72 in
MAXIMUM LIFT OF BEAM ---------------- 2 1/4 in
FRONT TO REAR ADJUSTMENT ------------ 1/2 in
MAXIMUM DEPTH OF BOX ---------------- 6 in
TOOLING WIDTHS ---------------------- 3, 4 AND 5 in
MINIMUM REVERSE BEND ---------------- 1/4 in
MINIMUM FLANGE IN CAPACITY MATERIAL - 1 in
DIMENSIONS, COUNTERWEIGHTS IN PLACE - 110 in X 53 in X 60 in
SHIPPING WEIGHT --------------------- 2,825 LBS. FEATURES: TENNSMITH ftS BOX AND PAN HAND BRAKES ARE AN ECONOMICAL TOOL
FOR A WIDE RANGE OF SHEET METAL BENDING AND FORMING
APPLICATIONS.
THE MODEL F6-72-12 IS RATED FOR 12-GAUGE MILD STEEL AND 16-
GAUGE STAINLESS. THIS HAND BRAKE IS IDEAL FOR BOTH BOX AND
PAN AND STRAIGHT BENDING IN HOT AND COLD ROLLED PLATE,
STAINLESS STEEL, ALUMINUM AND HEAVY PLASTIC. AMPLE CLAMPING
AND NOSE BAR ADJUSTMENTS ALLOW FOR THE BEND RADIUS
NECESSARY
FOR YOUR APPLICATION. WELDED STEEL PLATE CONSTRUCTION AND
HEAVY TRUSS RODS AND BRACES PROVIDE STRENGTH AND RIGIDITY.
THIS BRAKE FEATURES A REMOVABLE APRON INSERT FOR 1/4-INCH
BENDS IN LIGHTER MATERIAL. THE UPPER LEAF ADJUSTMENT SCREWS
FEATURE THRUST BEARINGS TO PREVENT UPPER BEAM CREEP.
DUCTILE
STEEL CLAMP HANDLES, HEAVY COUNTERWEIGHTS AND AN APRON STOP
ADD TO THE BRAKE??S EASE OF OPERATION. THE REMOVABLE FINGERS
ARE CASE HARDENED FOR LONG SERVICE. TENNSMITH BOX AND PAN
HAND BRAKES ARE A PRODUCTIVE ADDITION TO ANY SHOP DOING
PROTOTYPE OR DESIGN WORK, FABRICATION OR SHORT RUN
PRODUCTION
IN HEAVIER MATERIALS. SPECIFICATIONS SUBJECT TO VERIFICATION OPTIONAL FEATURES: EXTENSION FINGERS (PAIR) FOR F6 MODELS ----- $395.00
RIGHT AND LEFT EXTENSION FINGERS FORM INSIDE CORNERS WITH A
RETURN FLANGE ACROSS THE TOP ON BOXES, CABINETS, ETC.
OPEN END FINGERS (PAIR) FOR F6 MODELS ----- $530.00
PROVIDES TRIANGULAR, SQUARE, TAPERED AND RECTANGULAR TUBE
FORMING ABILITIES.
RADIUS FINGERS ----------------------------- $PRICE/REQUEST DELIVERY: SUBJECT TO STOCK
