1 - NEW U.S. INDUSTRIAL 13' X 1/4" HYDRAULIC SHEAR, MODEL #: US1325

Model
US1325

Stock #
85629

Condition
New

Year
N/A

Sheet Size 157 inches
Shearing Capacity 1/4” Mild Steel @ 65,000 PSI UTS / 1/8” Stainless Steel @ 95,000 PSI UTS / (Must consider option for Cr12MoV blades.)
Shear Angle 1° 30 feet
No Load Strokes 10
Throat Depth 4.7 inches
Adjustment Range of Back Gauge 0.75” - 36”
Hydraulic Oil Capacity 66 Gal.
Main Motor 15 HP, 220 or 440 Volts, 3 phase, 45/22.5 amps (Please specify your voltage requirement.)
Net Weight 22046 pounds
Dimensions (L x W x H) 182” x 66” x 66”

Equipped With

EQUIPPED WITH:
• Squaring Arm with inlaid scale, 39”
• Bolt on table segments…quantity of 3
• High Carbon, High Chrome Shear Blades
• Hold-downs faced w/anti-mar neoprene
• Ball Transfers on Each Table Segment
• Swing Beam Design
• Manual Quick Change Blade Gap Adj.
• Pressure Sensing Hold Downs
• Squaring Arm, 39” from blade to end
• Electric Stroke Adjustment
• Stroke Counter

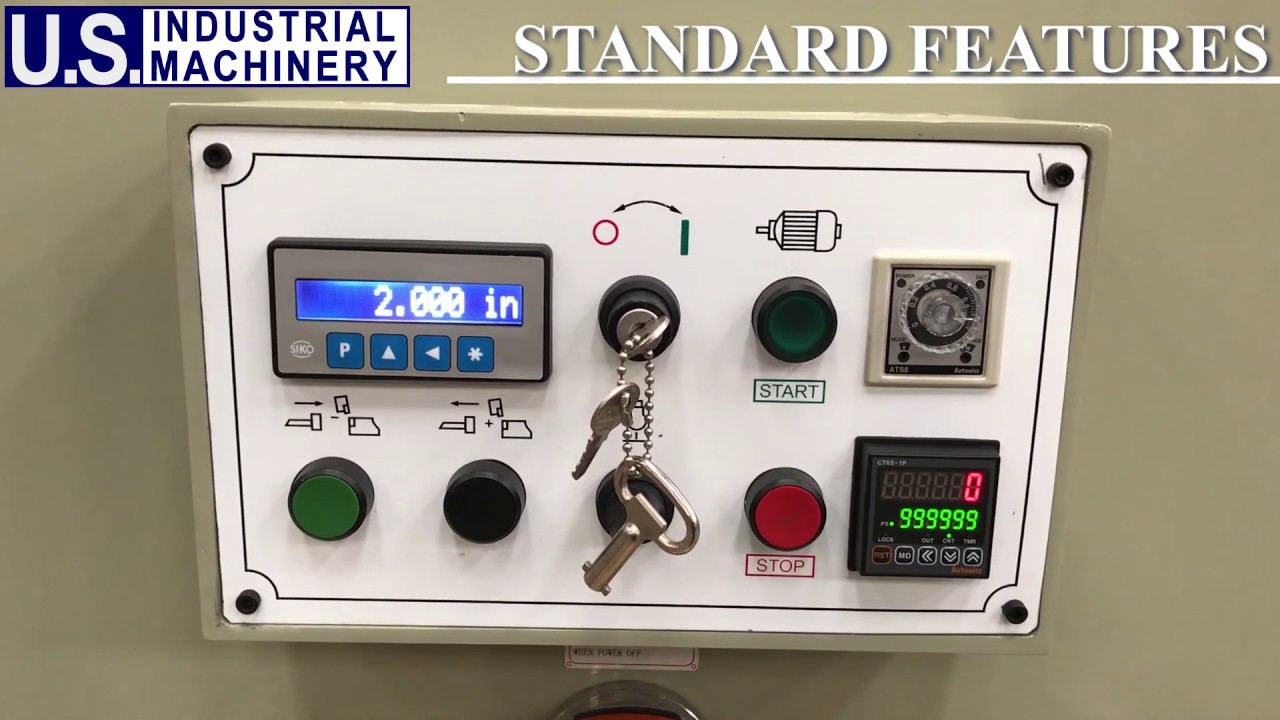

• Operator Control Console
• Front-operated Power Back Gauge with DRO
• Shadow Line with LED lighting
• Blade Guard, Micro Switch Protected
• Low Noise Gear Pump
• Hydraulic, Electrical Overload Protection
• Support Arms Included
• Automatic Swing-up on Back Gauge
• 6CrW2Si blades for cutting mild carbon steel
• Front operated power Backgauge with digital readout, 36” travel
• Squaring Arm – 39”
• Support Arms, Ball Transfer Tables w/hand slots between tables
• Quick blade gap adjustment
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
• 3-Axis CNC Programmable Back Gauge $4,990.00 *Touch-screen operated. Controls back gauge depth, blade gap and stroke length. It has a 200 program storage capacity, each program up to 20 steps, and it can be operated in manual or automatic mode.
• Material drop chute only (*This device makes it easier to retrieve sheared drops and is normally required by customers.) $1,295.00
• Upgrade to Pneumatic Sheet Support AND Material drop chute $5,990.00 (Substitute this price for price of Material drop chute.)
• Upgrade to 6-Foot Squaring Arm with inlaid scale $2,495.00
• Upgrade to 8-Foot Squaring Arm with inlaid scale $2,795.00
• Upgrade to 10-Foot Squaring Arm with inlaid scale $2,995.00
• Upgrade Cr12MoV blades for cutting up to 1/8” thick stainless $5,928.00
• Upgrade to 48” Back Gauge; no swing up $2,995.00
• Training in our Memphis, TN Showroom No Charge
• Training at customer site, less than 300 miles from Memphis: $2,995.00
• Training at customer site, more than 300 miles from Memphis: $3,995.00
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
