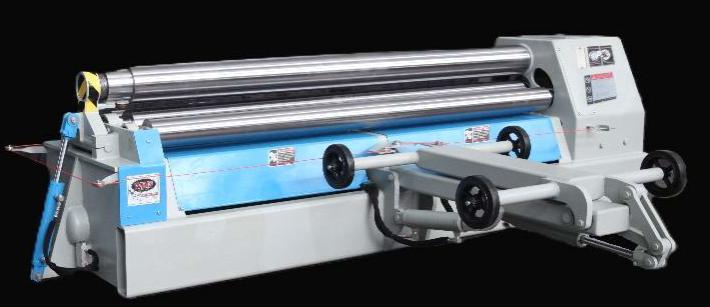

1 – NEW WDM HYDRAULIC DOUBLE PINCH PLATE BENDING MACHINE, MODEL #: 403-7-6

1 - NEW WDM HYDRAULIC DOUBLE PINCH PLATE BENDING MACHINE, MODEL #: 403-7-6

Brand
WDM

Model
403-7-6

Type
Rolls, Plate Bending (incld Pinch)

Stock #
78886

Condition
New

Year
N/A

Request a Quote

Files

7in x 6ft Capacity Chart.pdf

403-7-6 Specs.pdf

SPECIFICATIONS
FILES & ATTACHMENTS

Nominal Top Roll Diameter	7 inches
Rated prebend capacity	0.27” mild steel plate to 28” diameter x 6' wide
This machine is powered by a central hydraulic system, driven by	5 horsepower, 230/460-volt 3 phase TEFC motor
Machine Weighs Approximately	5700 pounds
Approximate Dimensions (L x W x H)	119” x 37” x 38”

Equipped With

FEATURES:

• 1045 carbon steel rolls

• Hydraulic driven roll which provides instant start, stop, and reverse

• NEMA 12 control cabinet with fused power supply

• Electrics meet NFPA 79 specifications

• 230/460-volt 3 phase 50/60 hertz electrics (specify voltage when ordering)

• Variable frequency drive providing infinitely variable speed from 0-22 FPM and

electronic overload protection

• Two roll drive

• SKF spherical roller bearings on all main bearings

• LSHT type hydraulic drive motor with high volumetric and overall efficiency

• Safety cable around perimeter of machine

• Beta 4.2 rolling console control. Push button control of main functions and 3 digital

readouts to show the position of the 3 lower rolls.

• Rolls directly driven or through planetary gear type speed reducers

• Machine sets directly on level floor

• Ability to roll symmetrical steel sections without additional attachments

• Hydraulic operated drop end support
• Cone Attachment
• Hardened and Polished Rolls

NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:

• Heavy Duty Cone Attachment - $2,750
• Hardened Only Rolls - $4,500

• Circular Grooves 3/8, 1/2, 5/8 - $800

• Starting Groove - $350

• Side Support Each - $7,000

• Overhead Support 12' Max - $8,550

• Pre 4.2 (preset) Control - $12,650
• 4R-AP (CNC/Auto) Control - $29,100

DELIVERY:
22-24 WEEKS
