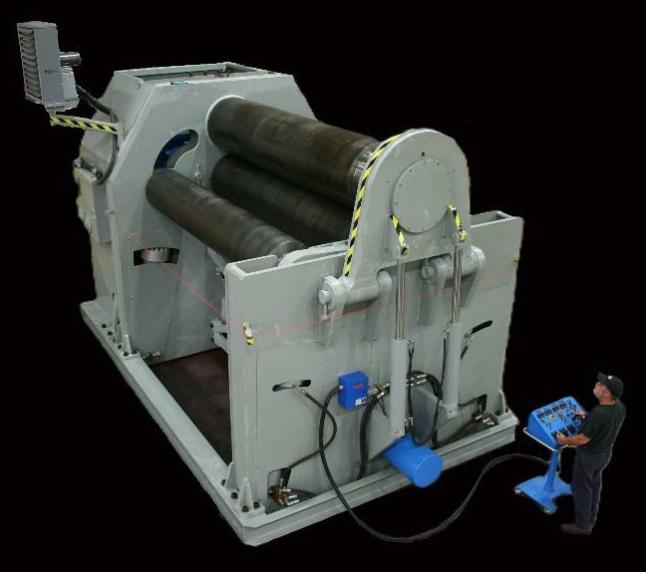

RATED ROLLING CAP. (MILD STEEL) ---------- 1 3/4” mild steel plate to 84” diameter x 10' wide
• 4140 Pre HT steel rolls
• Electric gear motor driven rolls which provides fast start, stop, and reverse
• NEMA 12 control cabinet with fused power supply
• Electrics meet NFPA 79 specifications
• 230/460-volt 3 phase 50/60 hertz electrics (specify voltage when ordering)
• Variable frequency drive providing electronic overload protection and infinitely variable
speed from 0-22 FPM.
• Two roll drive
• SKF spherical roller bearings on all main bearings
• Safety cable around perimeter of machine
• Beta 4.2 rolling console control. Push button control of main functions and 3 digital
readouts to show the position of the 3 lower rolls.
• Rolls driven through helical gear electric motors with brakes
• Machine sets directly on level floor
• Ability to roll symmetrical steel sections without additional attachments
• Hydraulic operated drop end support
• Heavy Duty Cone Attachment - $17,550
• Side Support Each - $39,650
• Overhead Support 12' Max - $43,000
• Pre 4.2 Control - $12,650
• 4R-AP Control - $29,100
