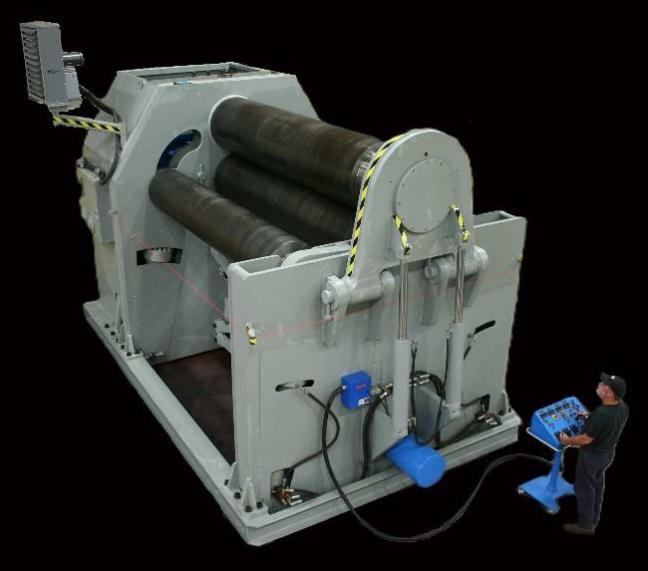

SPECIFICATIONS:NOMINAL ROLL DIAMETER -------------------- 24"
RATED ROLLING CAP. (MILD STEEL) ---------- 2 3/8” mild steel plate to 96” diameter x 10' wide
APPROXIMATE WEIGHT ----------------------- 93,500 LBS
FEATURES:
• 4140 Pre HT steel rolls
• Electric gear motor driven rolls which provides fast start, stop, and reverse
• NEMA 12 control cabinet with fused power supply
• Electrics meet NFPA 79 specifications
• 230/460-volt 3 phase 50/60 hertz electrics (specify voltage when ordering)
• Variable frequency drive providing electronic overload protection and infinitely variable
speed from 0-22 FPM.
• Two roll drive
• SKF spherical roller bearings on all main bearings
• Safety cable around perimeter of machine
• Beta 4.2 rolling console control. Push button control of main functions and 3 digital
readouts to show the position of the 3 lower rolls.
• Rolls driven through helical gear electric motors with brakes
• Machine sets directly on level floor
• Ability to roll symmetrical steel sections without additional attachments
• Hydraulic operated drop end support
NOTES:SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
• Heavy Duty Cone Attachment - $22,950
• Side Support Each - $51,800
• Overhead Support 12' Max - $56,200
• Pre 4.2 Control - $12,650
• 4R-AP Control - $29,100
DELIVERY:34-38 Weeks
