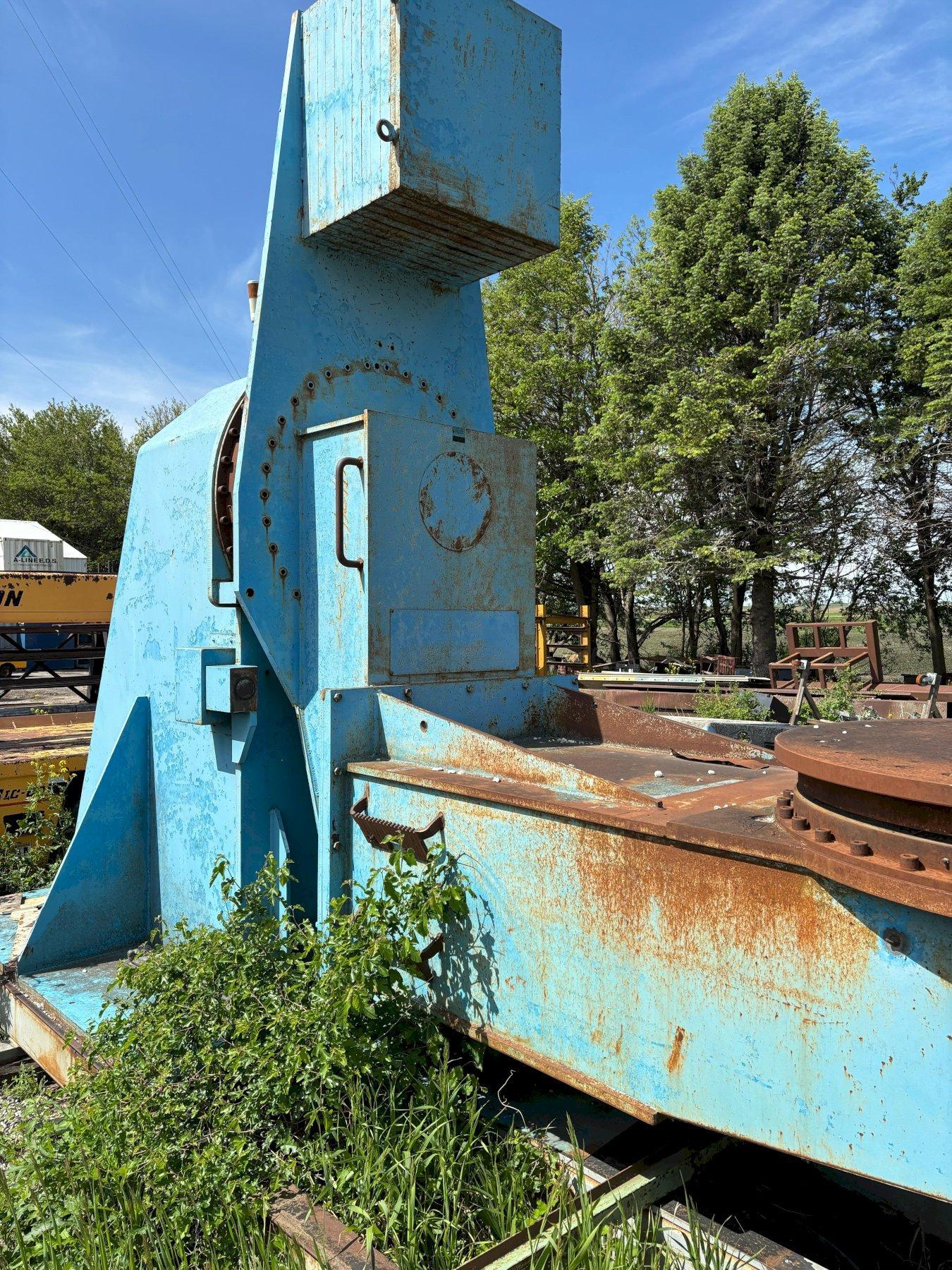

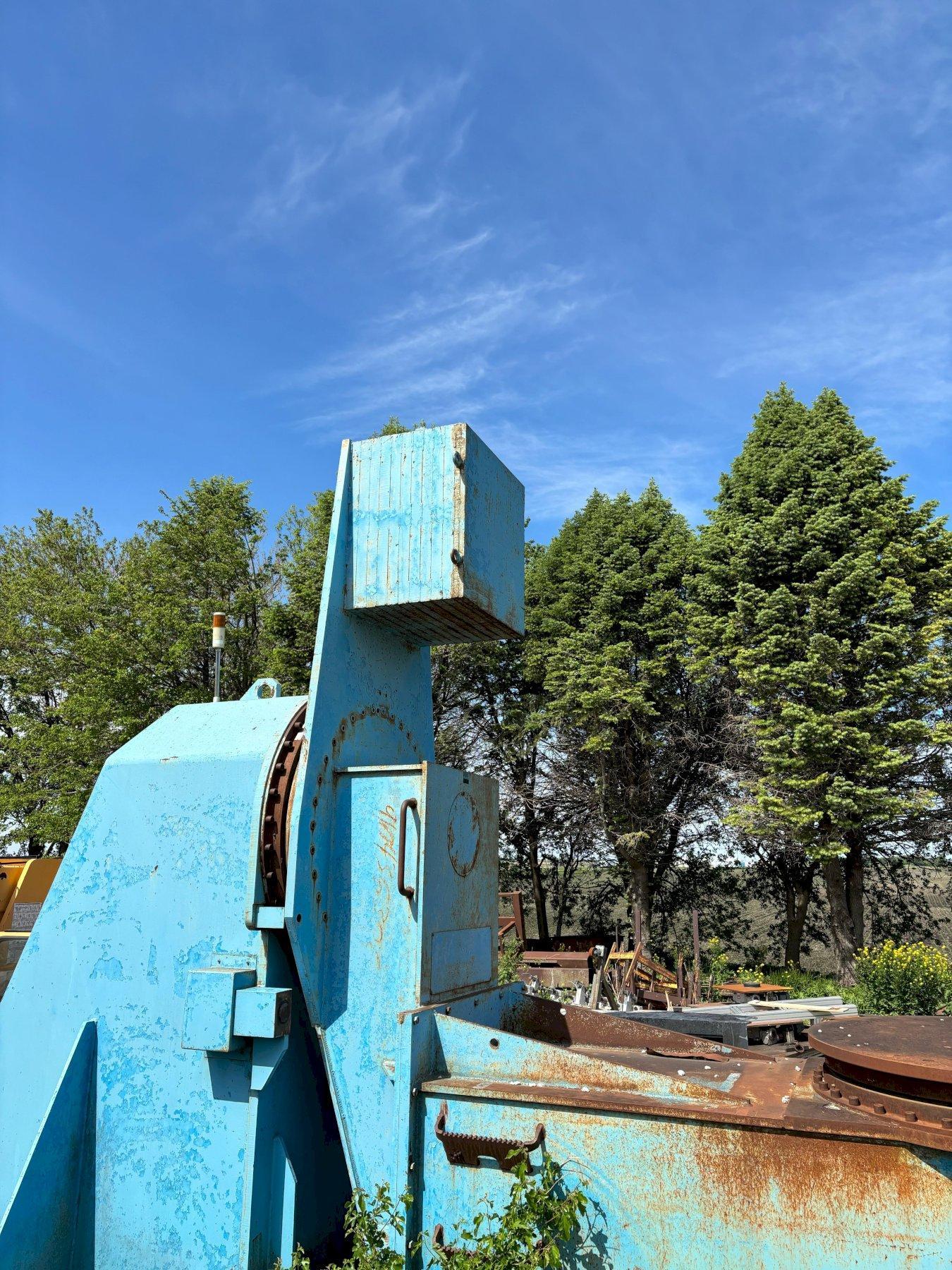

SPECIFICATIONS: DRIVING POWER ---------------------------- 1,87/4,2 kW
LOAD FACE PLATE -------------------------- 50000 N 11240lbs
TORQUE ----------------------------------- 10000 Nm
SWIVELLING MOMENT [Nm] ACCORDING TO LOAD DIAGRAM
MASS MOMENT OF INERTIA ------------------- 8000 KG/M squared
MAX. FREE TURNING RADIUS ----------------- 3000 mm
SWIVELLING RADIUS ------------------------ 1595 mm
FACE PLATE DIAMETER ---------------------- 1300 mm
HEIGHT OF FACE PLATE --------------------- 1295 mm
MAX. TURNING SPEED ----------------------- 8,4 [7 SEC]
MAX. SWIVELLING SPEED -------------------- 8,5 [7 SEC]
TURNING RANGE ---------------------------- 720 DEGREES
SWIVELLING RANGE ------------------------- 370 DEGREES SPECIFICATIONS SUBJECT TO VERIFICATION DELIVERY: IMMEDIATE, SUBJECT TO VERIFICATION
