Specifications:

• 6000 Gallons Per Day (22.7 cubic meters per day) Heavy-Duty Commercial Reverse Osmosis System: produces high quality purified water by reverse osmosis thin film (TFC) membrane using a high pressure pump (included).

• COMES STANDARD WITH CE2 CONTROL PANEL WHICH SHOWS TDS OF THE TREATED WATER.

• Removes total dissolved solids; chlorides; sodium; boron; fluoride; minerals and other salts using high-rejection high quality thin-film reverse osmosis membranes.

• Unlike light-duty systems this reverse osmosis unit includes a 1.0 HP heavy-duty stainless steel multistage centrifugal pump ensuring long life and better performance than standard rotary vane pumps.

• The unit comes with a white powder-coated steel frame; stainless steel braided hoses; inlet solenoid valve; and stainless steel concentrate control valve.

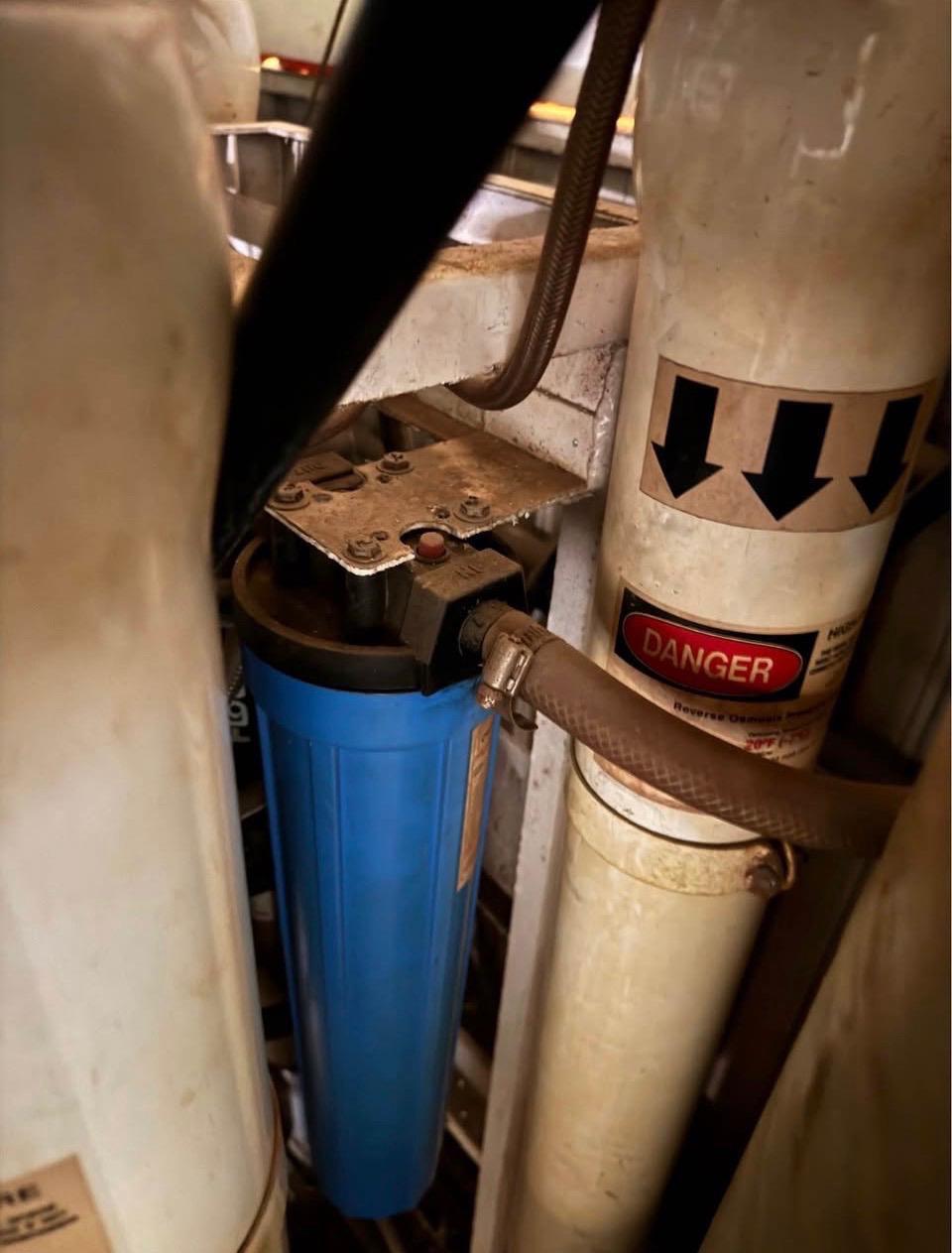

• To make service and operation easier this unit includes many options not normally included in other base-unit reverse osmosis systems such as: 5-micron pre-filter; pure-water (permeate) flow meter; waste-water (concentrate) flow meter; PVC pressure vessels; and automatic feed-water shut-off valve.

• The pressure gauges included display pressure for the high pressure pump; inlet water pressure and pre-filter outlet; making it easy to diagnose and track pressure across the pre-filter.

• An excellent control panel package includes a UL listed control box with On/Off Switch; low-inlet water protection; function LEDs; and contacts to set up float switches in a storage tank.

• The control box also features contacts for locking out pretreatment filters during backwash and makes it easy to connect anti-scalant pumps.

• Minimum 20 PSI line pressure recommended. Inlet pipe size is 3/4 inch.

• Uses four 4 x 40 inch membranes.

• Water production rate based on total dissolved solids of 1000 ppm and temperature of 77F (25C).

• Designed recovery is 20% but can be adjusted if water conditions allow.

• Voltage is 220 60hz single phase but 220v 50 hz and three-phase available.

Dimension:

• Shipping dimensions in inches: 33 length x 24 width x 58 height.

• Dimensions in cm: 84 length x 61 width x 147 height.

• Shipping weight is 255 lbs (115 kg).

• Actual unit dimensions in inches: 26 length x 20 width x 53 height.

• Unit dimensions in cm: 66 length x 50 width x 135 height.
