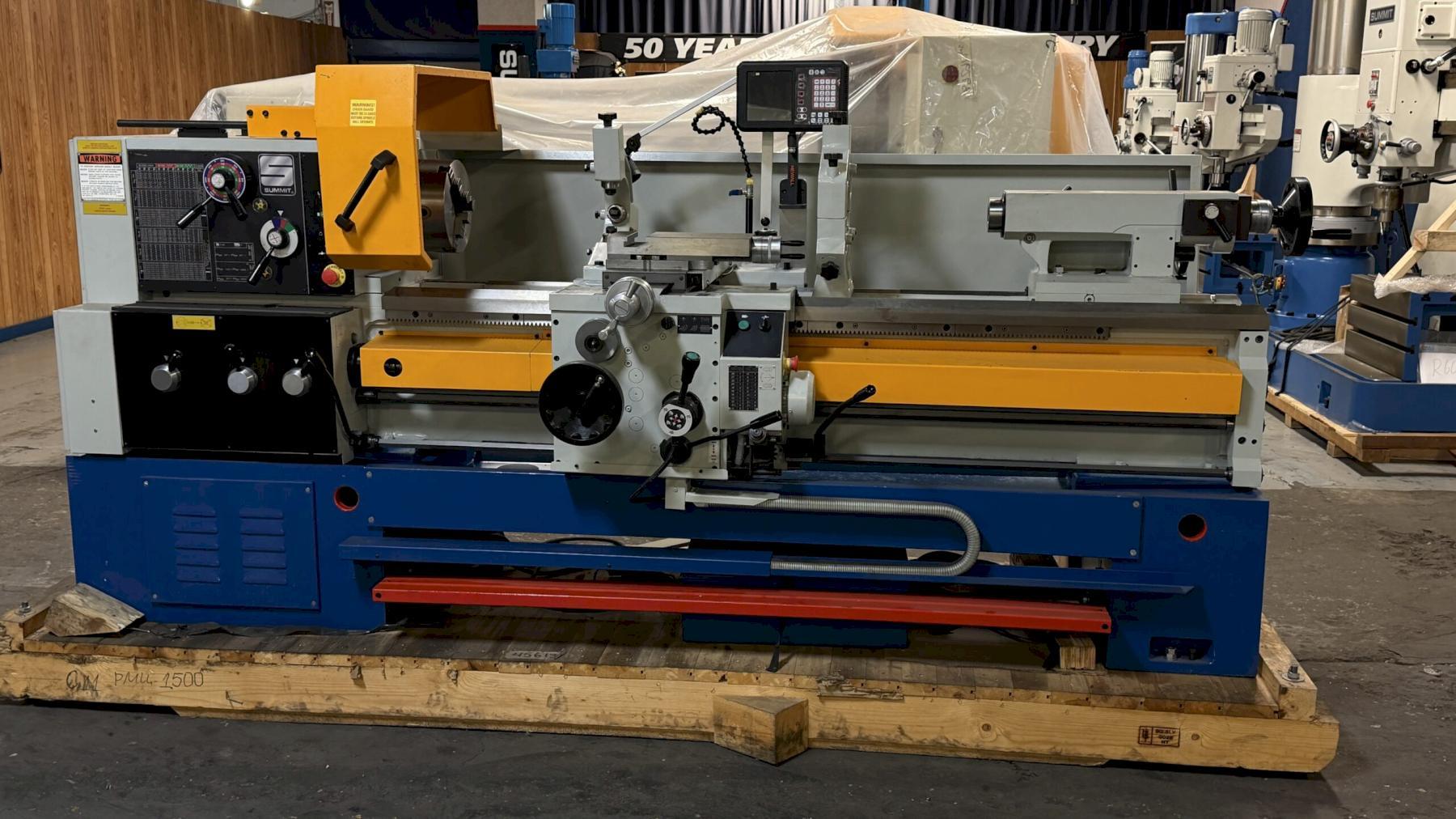

SPECIFICATIONS:
SWING OVER BED --------------------------- 18 in
SWING OVER CROSS SLIDE ------------------- 9-1/2 in
SWING OVER GAP --------------------------- 26 in
LENGTH OF GAP ---------------------------- 15 in
LENGTH OF GAP IN FRONT OF FACEPLATE ------ 8-3/8 in
WEIGHT AT THE HEADSTOCK ------------------ 350 LBS.
WEIGHT BETWEEN CENTERS ------------------- 1,500 LBS.
WEIGHT BETWEEN CENTERS S/STEADY REST ----- 3,000 LBS.
SPINDLE SPEEDS (NUMBER) RANGE (21) ------- 20 - 2,000 RPM
HOLE THRU SPINDLE ------------------------ 3 in
SPINDLE NOSE ----------------------------- D1-8 CAMLOCK
HEADSTOCK CENTER ------------------------- #6MT
THREADS PER INCH (NUMBER) RANGE ---------- (64) 1/4-60
METRIC THREADS (NUMBER) RANGE ------------ (64) .5-120
MODULE THREADS (NUMBER) RANGE ------------ (64) .125-30
DIAMETRAL PITCH (NUMBER) RANGE ----------- (64) 1-240
LONGITUDINAL FEEDS (NUMBER) RANGE -------- (124)
.00145-.44474
CROSS FEEDS (NUMBER) RANGE --------------- (56)
.0007-.22237
LEADSCREW (DIA) RANGE -------------------- (2 in ) 2 TPI
FEED ROD DIAMETER ------------------------ 1 in
CROSS SLIDE TRAVEL ----------------------- 12-1/4 in
COMPOUND REST TRAVEL --------------------- 5-3/8 in
GRADUATEION OF APRON HANDWHEEL ----------- .020
GRADUATION OF CROSS SLIDE HANDWHEEL ------ .002 (DIR READ)
TRAVEL OF SPINDLE BARREL ----------------- 9-1/2 in
DIAMETER OF SPINDLE BARREL --------------- 3-1/2 in
TAPER OF CENTER -------------------------- #5MT
WIDTH OF BED ----------------------------- 15-3/4 in
DEPTH OF BED ----------------------------- 16-7/8 in
HARDNESS OF BED (ROCKWELL C) ------------- 42-48
DEGREES OF TAPER ------------------------- 10 DEGREES
MAXIMUM TURNING LENGTH PER SETTING ------- 15-3/4 in
MAIN MOTOR ------------------------------- 10 HP
COOLANT PUMP ----------------------------- 1/4 HP
STEADY REST ------------------------------ 1/2 in - 6-1/8 in
FOLLOW REST ------------------------------ 1/2 in - 7-7/8 in
OVERALL WIDTH ---------------------------- 48 in
OVERALL HEIGHT --------------------------- 60 in
OVERALL LENGTH --------------------------- 134 in
WEIGHT ----------------------------------- 6,600 LBS.
ELECTRICS -------------------------------- 220/440/3/60
FEATURES:
BIG 3 in THRU HOLE
INCH/METRIC THREADS W/SINGLE SWITCH LEVER
CUTS MOST INCH/METRIC THREADS WITHOUT CHANGE GEARS
HARDENED AND GROUND BEDWAYS
FORCED LUBRICATION TO THE HEADSTOCK, CARRIAGE AND BEDWAYS
REMOVABLE GAP
MECHANICAL DISC CLUTCH
PRECISION (3) BEARING SPINDLE
CROSSFEED AND THREADING SAFETY INTERLOCK
FEED REVERSING AT THE APRON
4-WAY RAPID TRAVERSE
SINGLE LEVER CONTROL FOR FEEDS AND RAPIDS
TWO SPEED TAILSTOCK
EQUIPPED WITH:
STEADY REST
FOLLOW REST
THREAD DIAL
COOLANT SYSTEM
TAPER ATTACHMENT
12" 3-JAW CHUCK
CARRIAGE STOP
WORK LIGHT
FULL LENGTH SPLASH GUARD
SERVICE WRENCHES & SPANNERS
NEWALL 2 AXIS DIGITAL READOUT
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
SUBJECT TO STOCK
