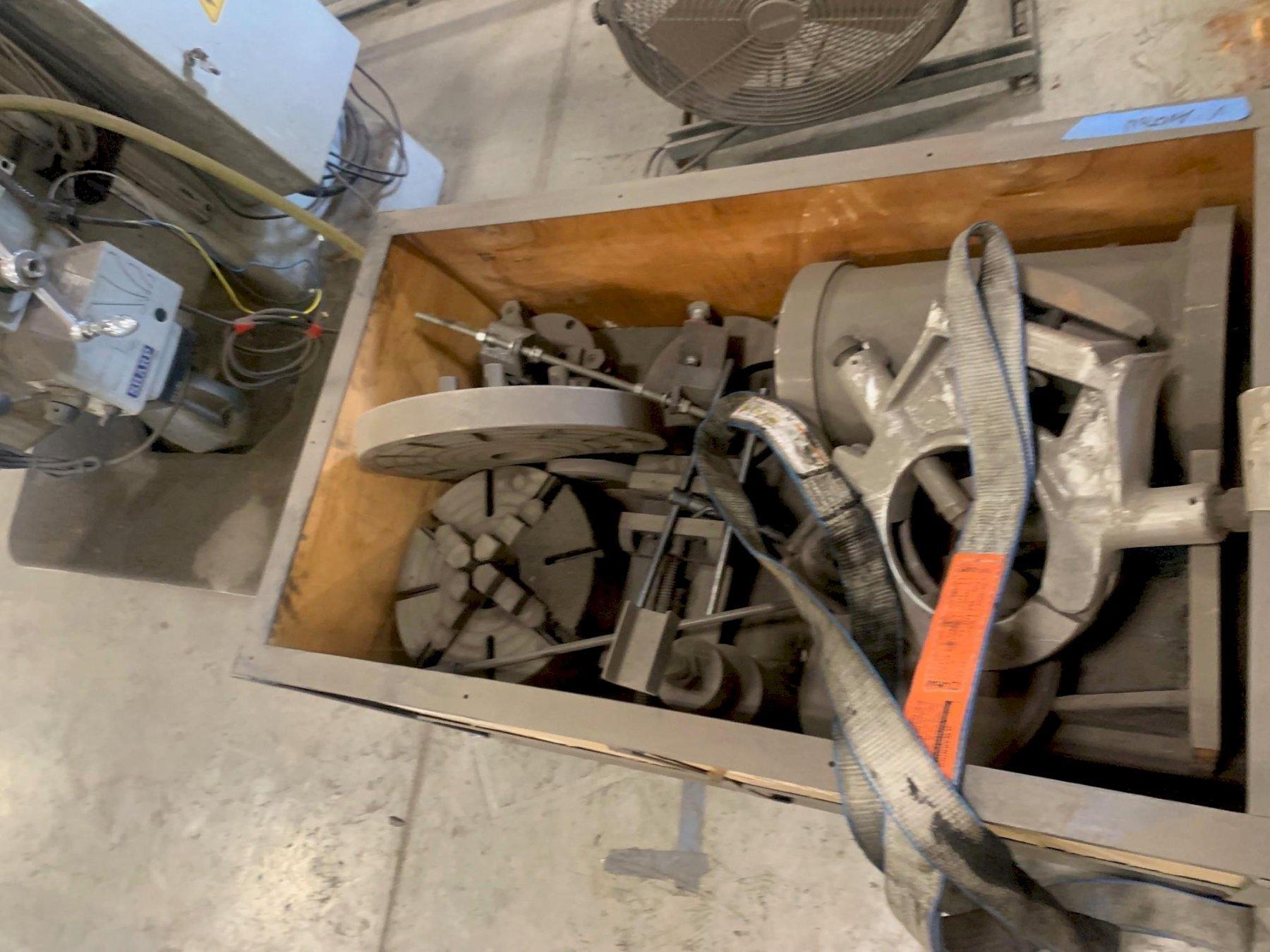

Capacity                                                                                                                  Inch                                                                                                                                   Metric

Swing Over Bed                                                                                                    16 in.                                                                                                                                   406 mm

Swing Over Cross Slide                                                                                       8.75 in.                                                                                                                                   222.25 mm

Swing Over Gap                                                                                                    24.37 in.                                                                                                                                   618.9 mm

Gap Width
(In Front Of Face Plate)                                                                                      9.75 in.                                                                                                                                   247.6 mm

Distance Between Centers                                                                               40 in.                                                                                                                                   1,016 mm

Headstock                                                                                                              Inch                                                                                                                                   Metric

Spindle Speed    Hi: 235-2,000 rpm
Low: 20-170 rpm             Hi: 235-2,000 rpm

Low: 20-170 rpm

No. of Spindle Speeds                                                                                        12                                                                                                                                   12

Spindle Nose                                                                                                         D1-8 camlock                                                                                                                                   D1-8 camlock

Spindle Bore                                                                                                          3.06 in.                                                                                                                                   77.72 mm

Threads and Feeds                                                                                             Inch                                                                                                                                   Metric

Inch Threads, Number                                                                                       4-56 tpi, 36                                                                                                                                   0.5-7 mm, 17

Diametral Pitch Threads, Number                                                                 0.157-2.20 in, 36                                                                                                                                   4-56 mm, 36

Longitudinal Feeds                                                                                              0.002-0.032 in./rev                                                                                                                                   0.05-0.82 mm/rev

Cross Feeds                                                                                                            0.0001-0.0094 in./rev                                                                                                                                   0.02-0.4 mm/rev

Leadscrew Pitch, Diameter                                                                               4 tpi, 1.37 in.                                                                                                                                   4 tpi, 1.37 in.

Carriage                                                                                                                  Inch                                                                                                                                   Metric

Cross Slide Travel                                                                                                 9.8 in.                                                                                                                                   250 mm

Compound Travel                                                                                                4.9 in.                                                                                                                                   124.4 mm

Compound Width                                                                                                4.5 in.                                                                                                                                   114.3 mm

Bed                                                                                                                           Inch                                                                                                                                   Metric

Bed Length                                                                                                             59 in.                                                                                                                                   1,498.6 mm

Bed Width                                                                                                              11.75 in.                                                                                                                                   298.4 mm

Tailstock                                                                                                                  Inch                                                                                                                                   Metric

Quill Diameter                                                                                                       2.25 in.                                                                                                                                   57.15 mm

Quill Travel                                                                                                             5 in.                                                                                                                                   127 mm

Quill Center Taper                                                                                                MT #4                                                                                                                                   MT #4

General                                                                                                                   Inch                                                                                                                                   Metric

Spindle Motor                                                                                                       7.5 HP                                                                                                                                   5.59 Kw

Voltage                                                                                                                    230V/460V                                                                                                                                   230V/460V

Phase                                                                                                                       3 phase                                                                                                                                   3 phase

Power Consumption

(230 V)                                                                                                                    8KVA/25 amps                                                                                                                                   8KVA/25 amps

Power Consumption
(460 V)                                                                                                                    8KVA/12.5 amps                                                                                                                                   8KVA/12.5 amps

Approximate Weight                                                                                          3,600 lbs.                                                                                                                                   1,632.9 Kg

Dimensions                                                                                                            7.05 x 2.66 x 3.91 ft.                                                                                                                                   2.15 x 0.81 x 1.19 M
