SPECIFICATIONS: DRILLS TO CENTER OF CIRCLE ------------ 2 in

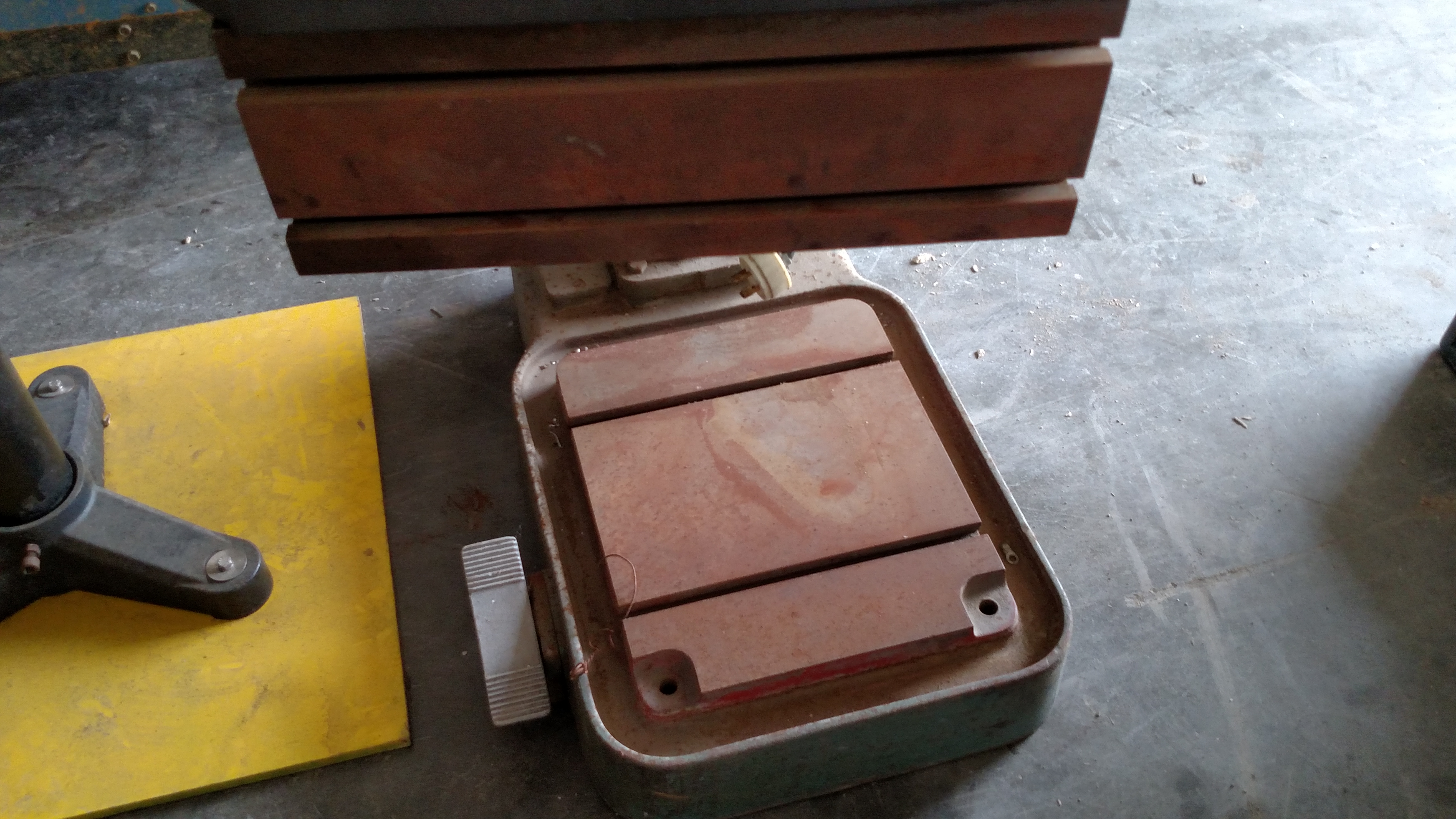

TABLE SIZE ---------------------------- 24 in x 40 in
MAX DISTANCE SPINDLE NOSE TO TABLE ---- 24 in
MIN DISTANCE SPINDLE NOSE TO TABLE ---- 8 in
SPINDLE TAPER ------------------------- MT #3
SPINDLE TRAVEL ------------------------ 5 in

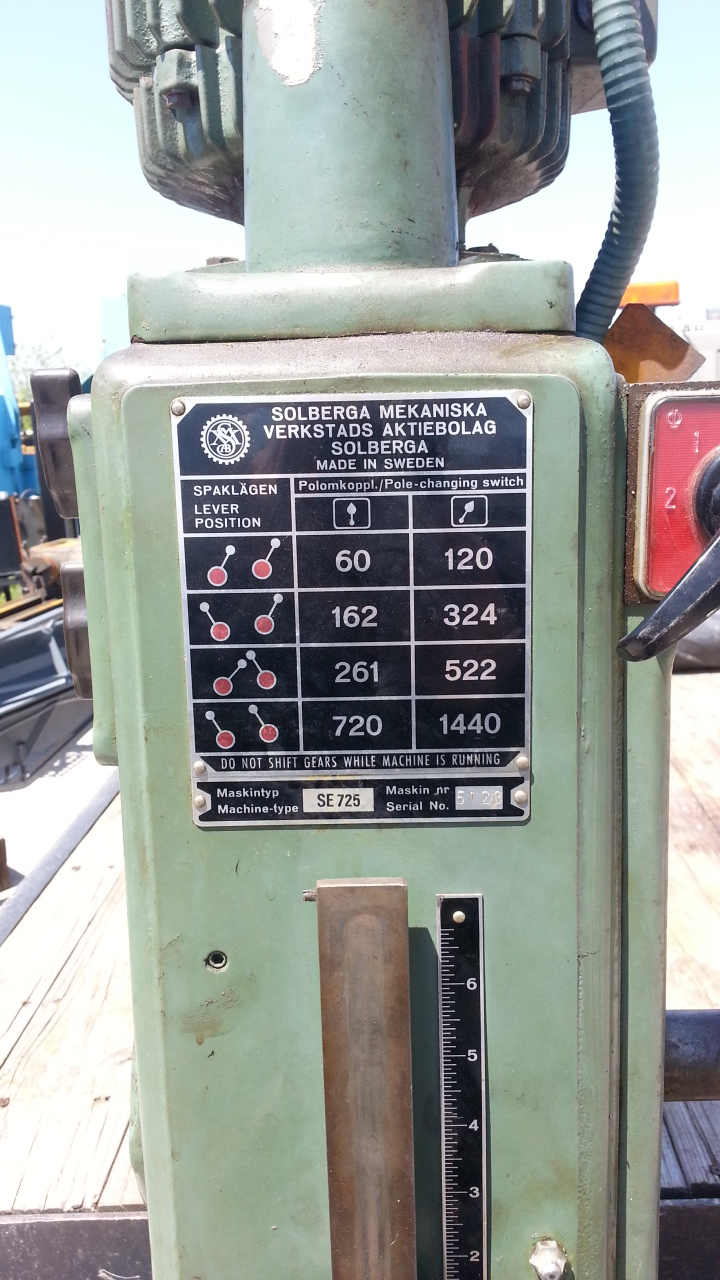

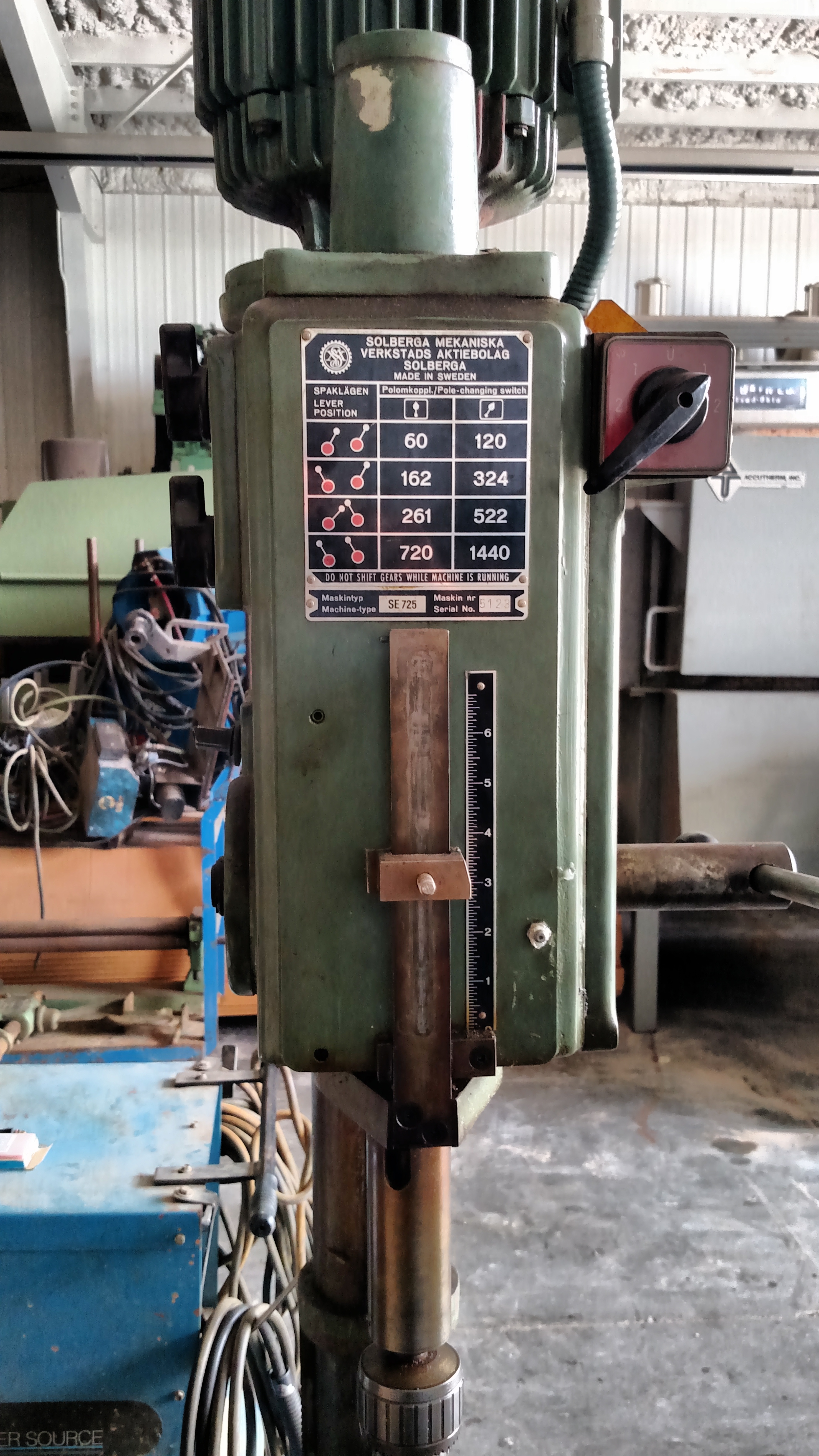

RPM ----------------------------------- 60-1440
POWER FEED ---------------------------- 0.004 TO 0.016 IPR

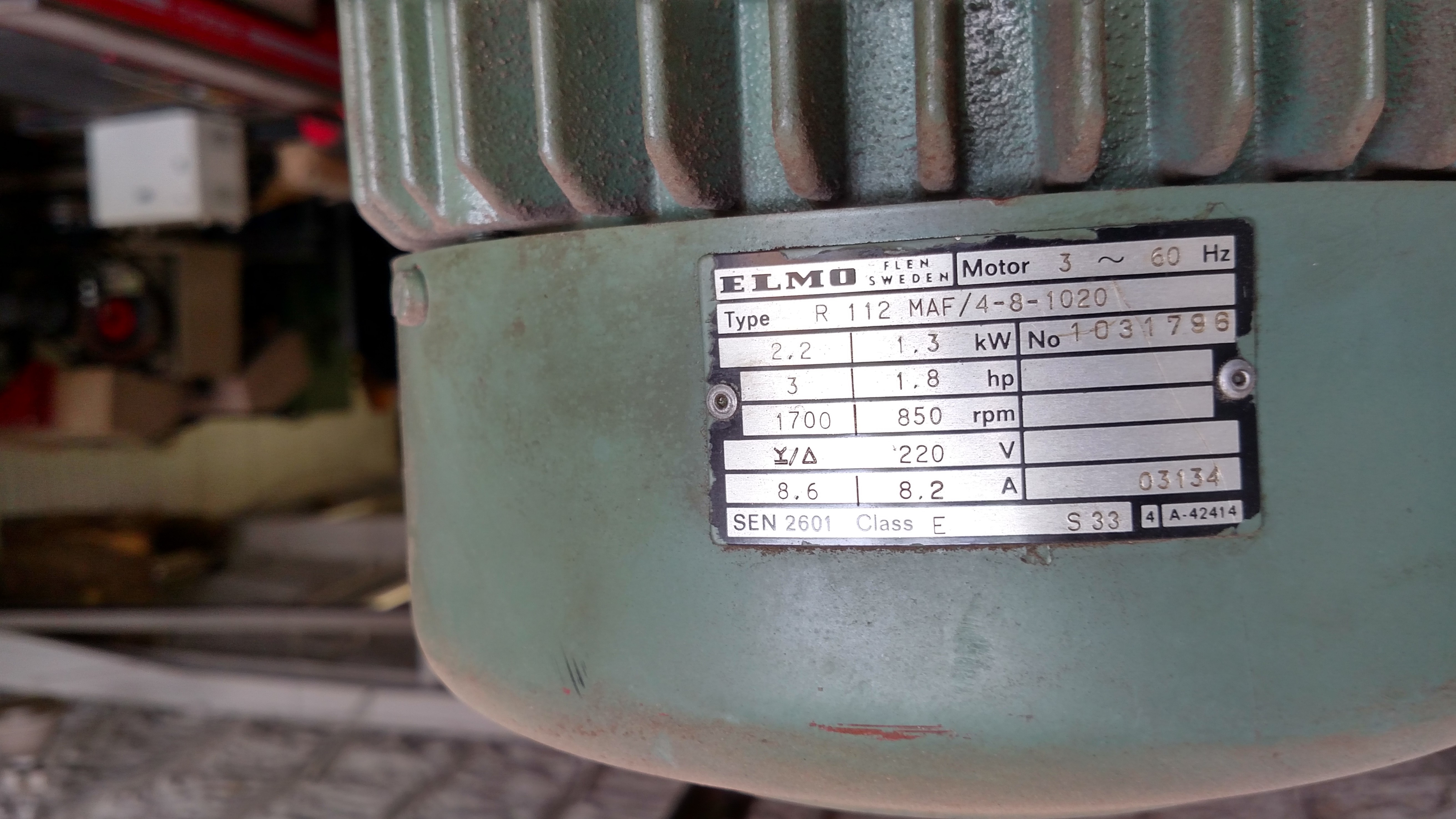

MOTOR --------------------------------- 1.75/3 HP
ELECTRICS ----------------------------- 220V, 3PH, 60HZ EQUIPPED WITH: REVERSE PEDAL FOR TAPPING

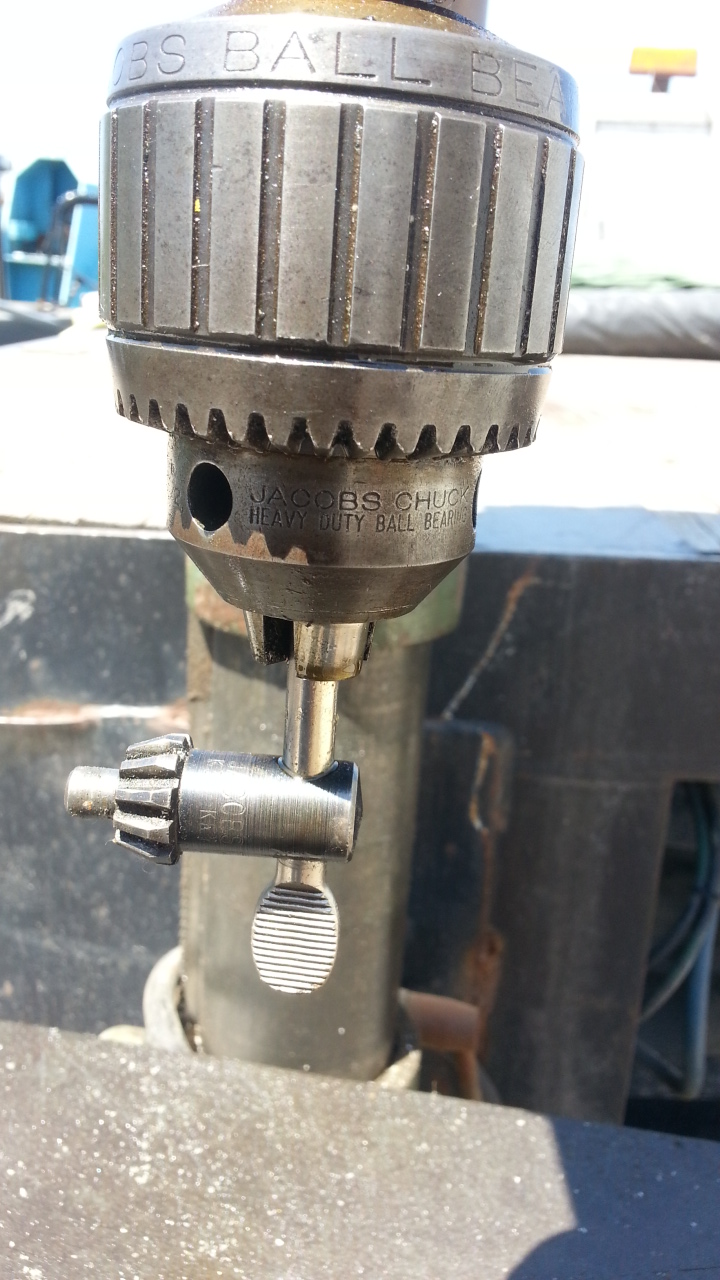

JACOBS CHUCK #14, 1/2 in CAPACITY
GEAR DRIVE 2 SPEED (FORWARD/REVERSE) SPECIFICATIONS SUBJECT TO VERIFICATION DELIVERY: IMMEDIATE, SUBJECT TO PRIOR SALE
