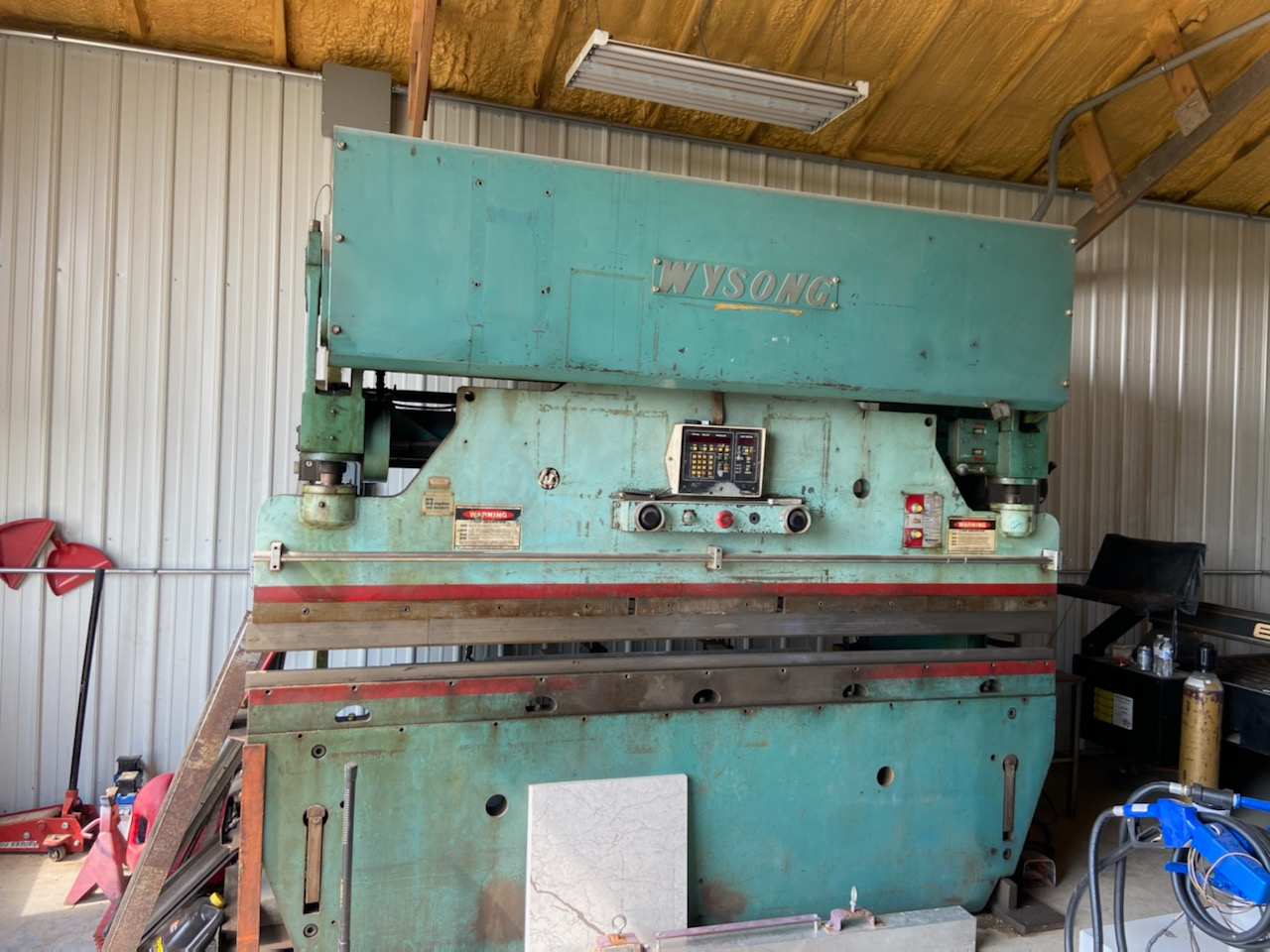

1 - PREOWNED WYSONG 90 TON X 8 ft HYDRAULIC PRESS BRAKE, MODEL #: H90-6, S/N: HPB16-104, YEAR: 1984

Brand
WYSONG

Model
H90-6

Stock #
84537

Condition
Used

Year
1984

Equipped With

SPECIFICATIONS:
TONNAGE (NEAR BOTTOM) ---------------- 90
CAPACITY MILD STEEL (AIR BENDING) ---- 96 in X 3/16 in
DISTANCE BETWEEN HOUSING ------------- 78 in
OVERALL BENDING LENGTH --------------- 96 in
DIE SPACE ---------------------------- 12 in
STROKE ------------------------------- 2 1/2 in
RAM ADJUSTMENT ----------------------- 4 in

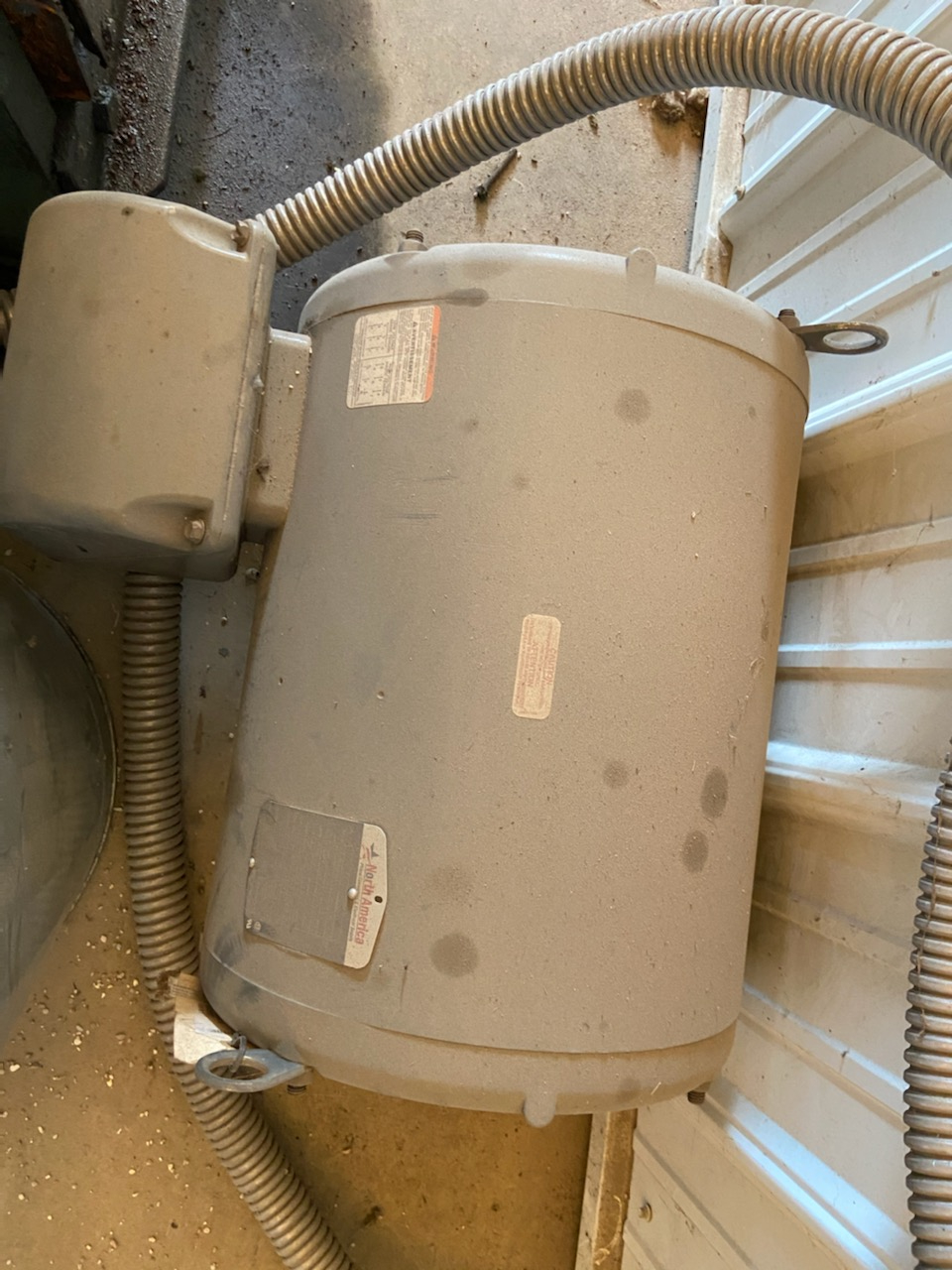

DRIVE MOTOR -------------------------- 15 HP
THROAT CLEARANCE --------------------- 8 1/2 in
SHIPPING WEIGHT (APPROX.) ------------ 13,500 LBS
FEATURES:
* VAN TYPE HYDRAULIC PUMP
* ROTARY HYDRAULIC ACTUATORS
* THREE SEPARATE CARTRIDGE TYPE RELIEF VALVES FOR MAXIMUM PROTECTION
* THREE SPEED RAM CONTROL
* BOLTED BED CONSTRUCTION
* STRADDLE MOUNTED PITMANS
* ALUMINUM BRONZE PITMAN BEARINGS AND MAIN SHAFT BEARINGS
* BUTTRESS THREAD RAM ELEVATION SCREWS
* ADJUSTABLE STROKE CONTROL
* ALUMINUM BRONZE BALL SEAT FOR RAM ELEVATION SCREWS
* NON-METALLIC ADJUSTABLE GIBBING SYSTEM FOR RAM

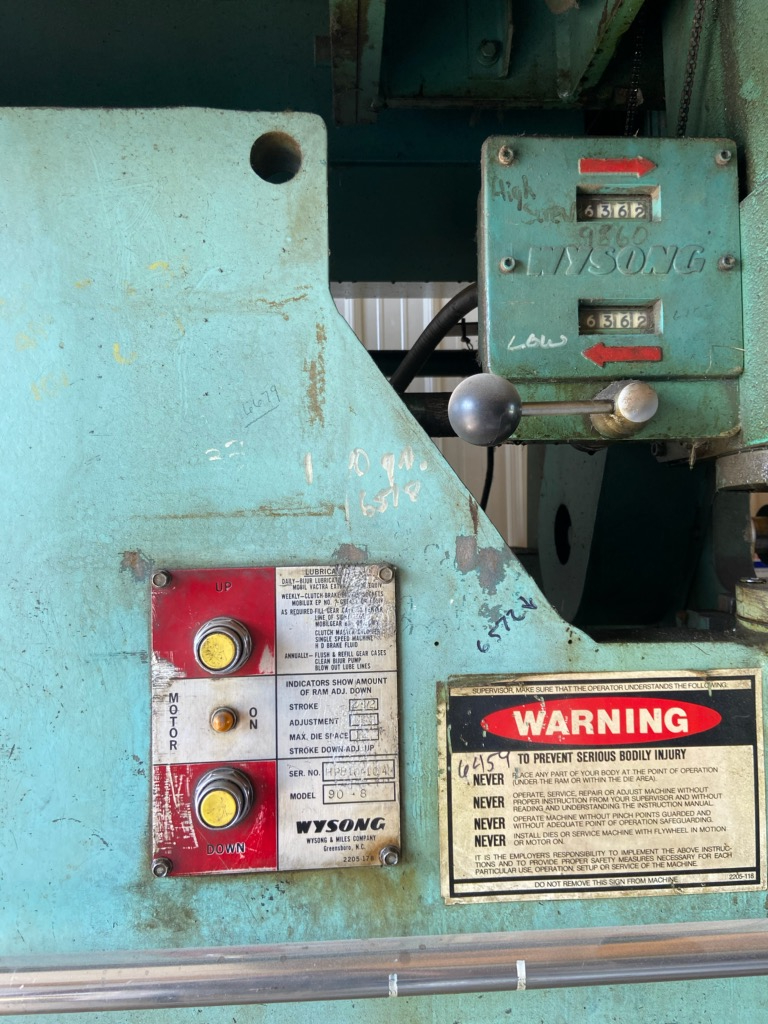

* DUAL RAM ADJUSTMENT INDICATORS IN .001 in
* RAM TILTING ADJUSTMENT
* STANDARD BACK GAUGE
* HAND RAIL ON RAM
* RAM CLAMPING BARS
* DIE HOLDER WITH FULL LENGTH KEY

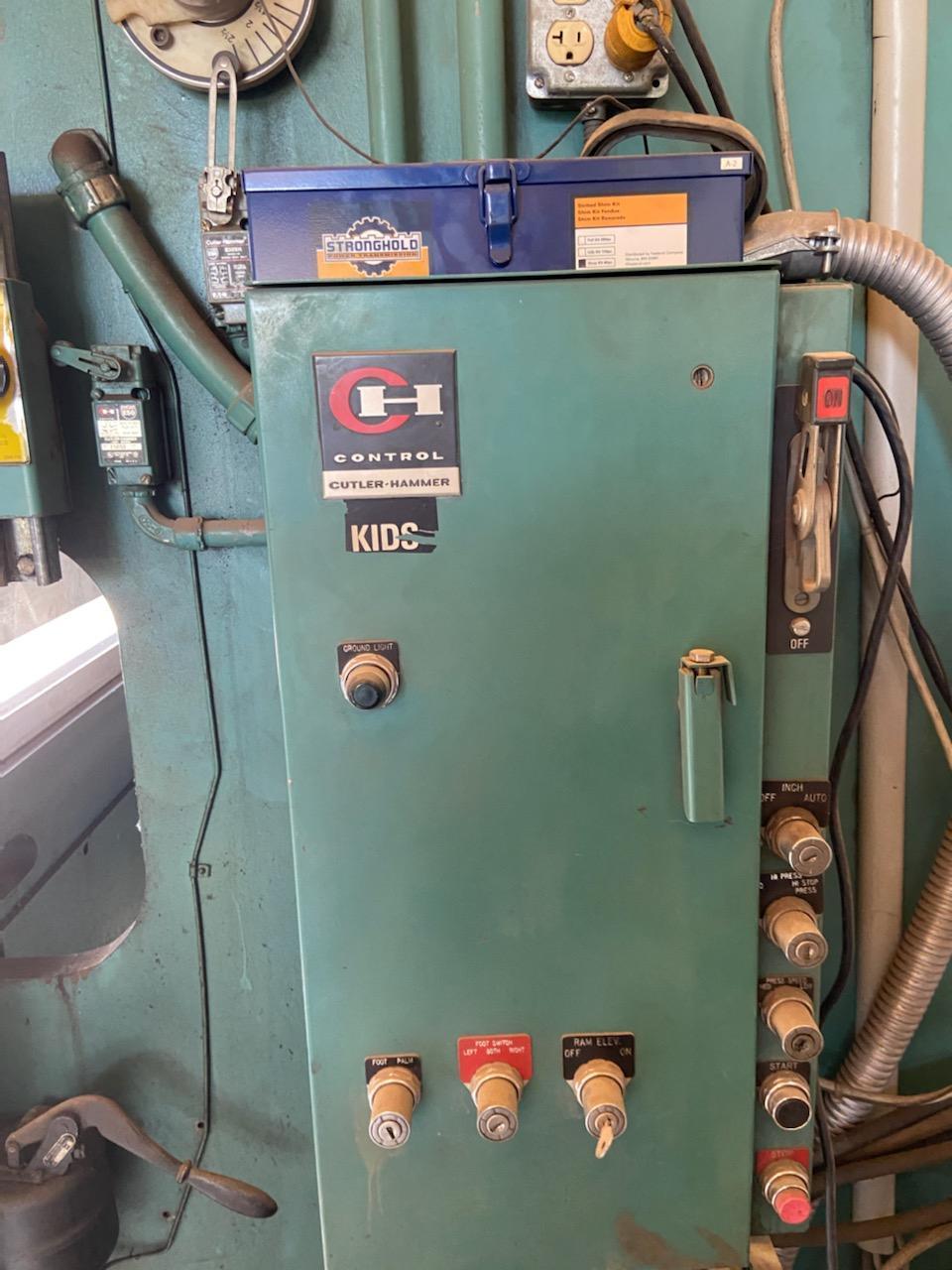

* MOTOR AND ELECTRICAL CONTROLS WITH FUSIBLE DISCONNECT SWITCH AND REDUCED VOLTAGE CONTROL CIRCUIT NEMA 12 ENCLOSE
* ELECTRIC FOOTSWITCH
* PALM BUTTON STATION WITH EMERGENCY STOP AND RAM UP BUTTON
* FLOW CONTROL VALVE FOR VARIABLE LOW PRESS SPEED
* PUMP SUCTION FILTER WITH MAGNET
* 3 MICRON RETURN FILTER WITH SERVICE INDICATOR
* PRECISION MACHINED CENTRAL MANIFOLD
* HYDRAULIC TANK WITH BAFFLES AND SIGHT GAUGE
* HYDRAULIC OIL FURNISHED
* GREASE LUBRICATION SYSTEM
EQUIPPED WITH:

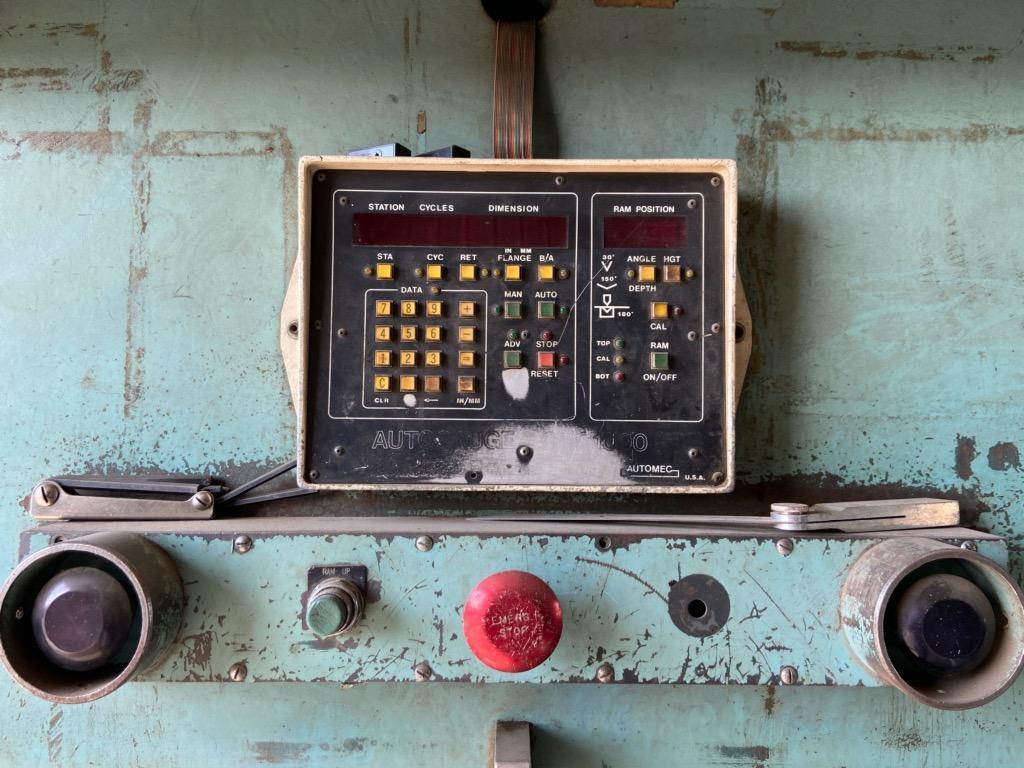

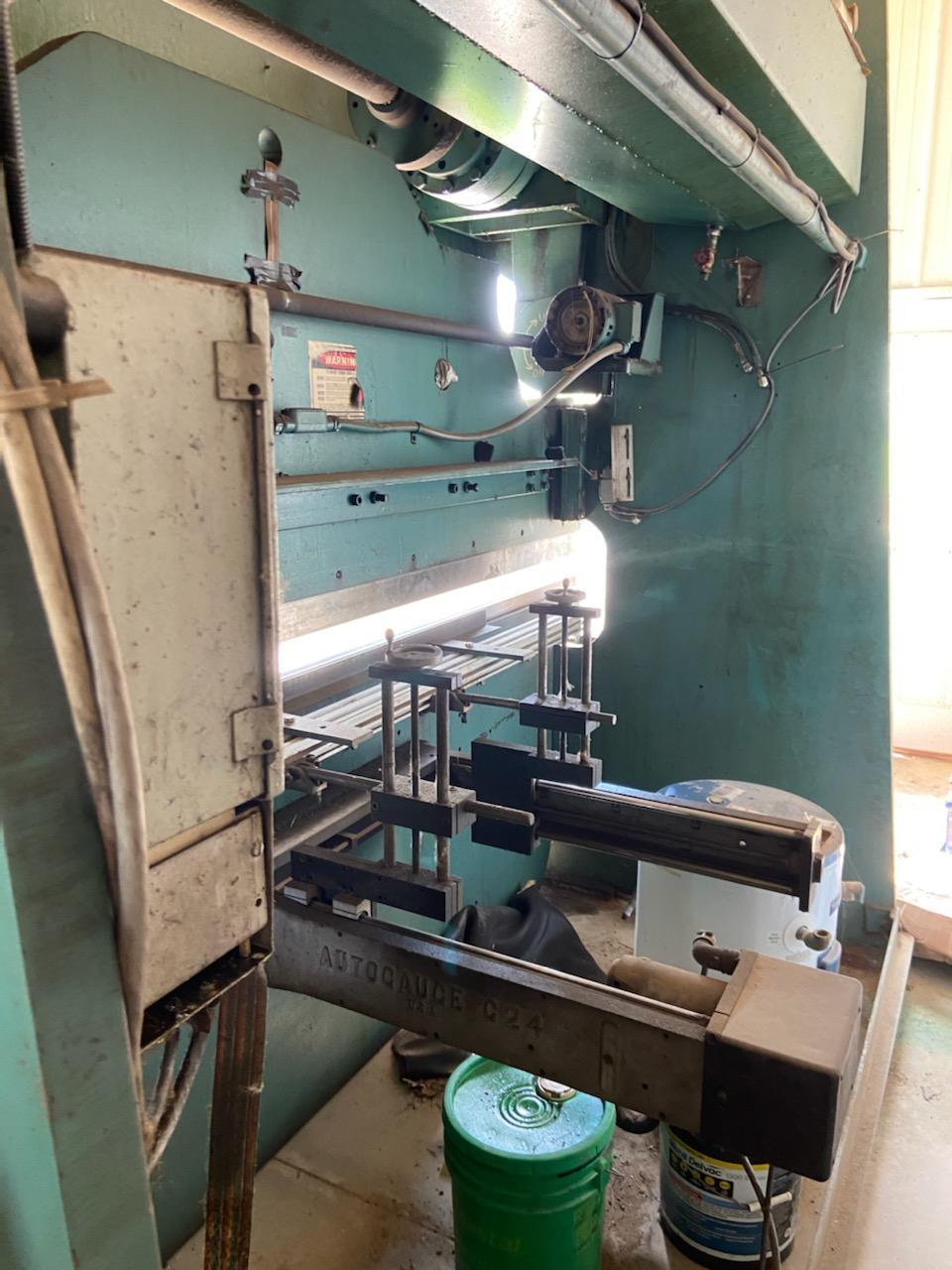

AUTOMEC CNC 9 BACKGAGE
MISC PRESS BRAKE TOOLING

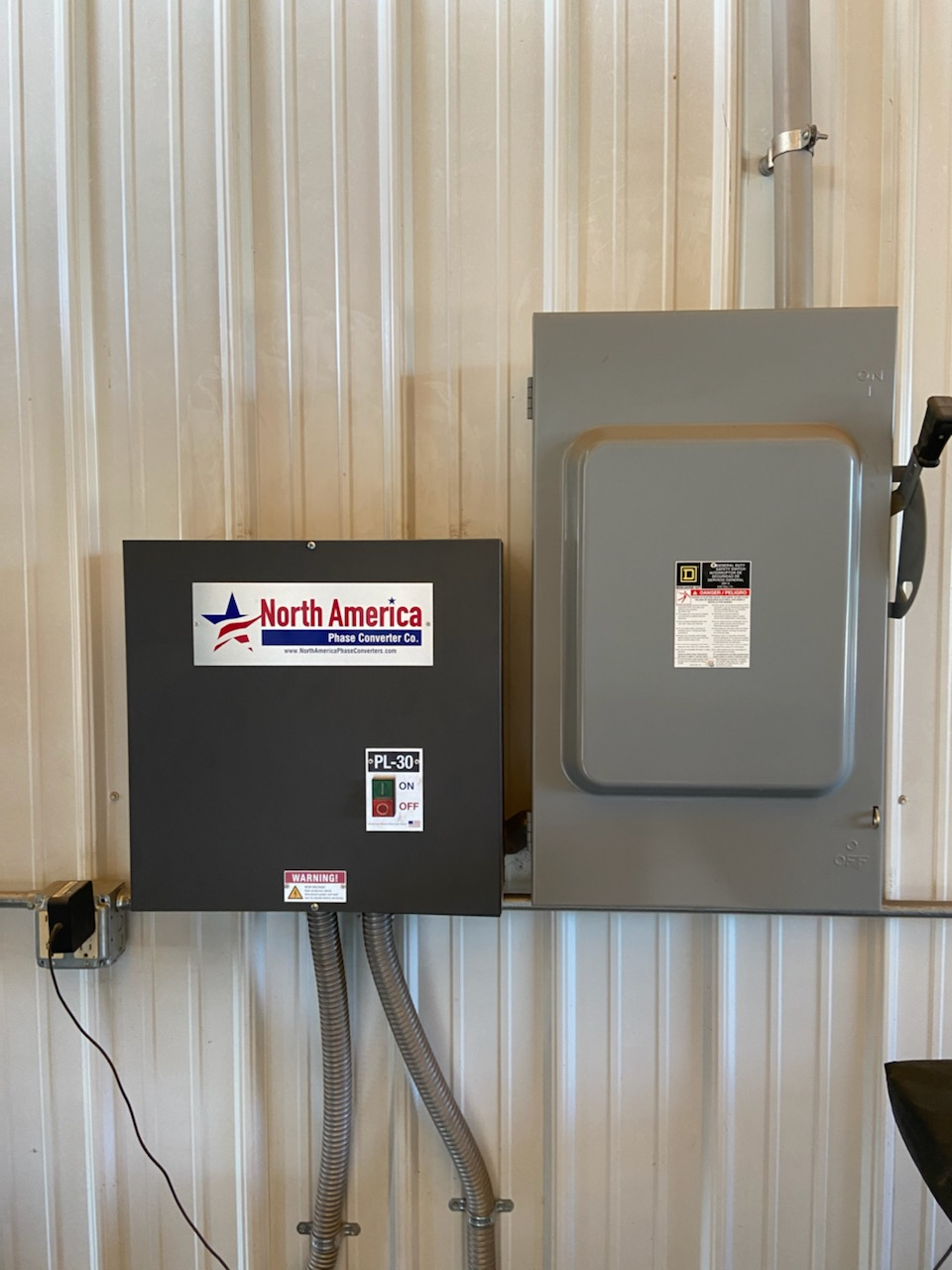

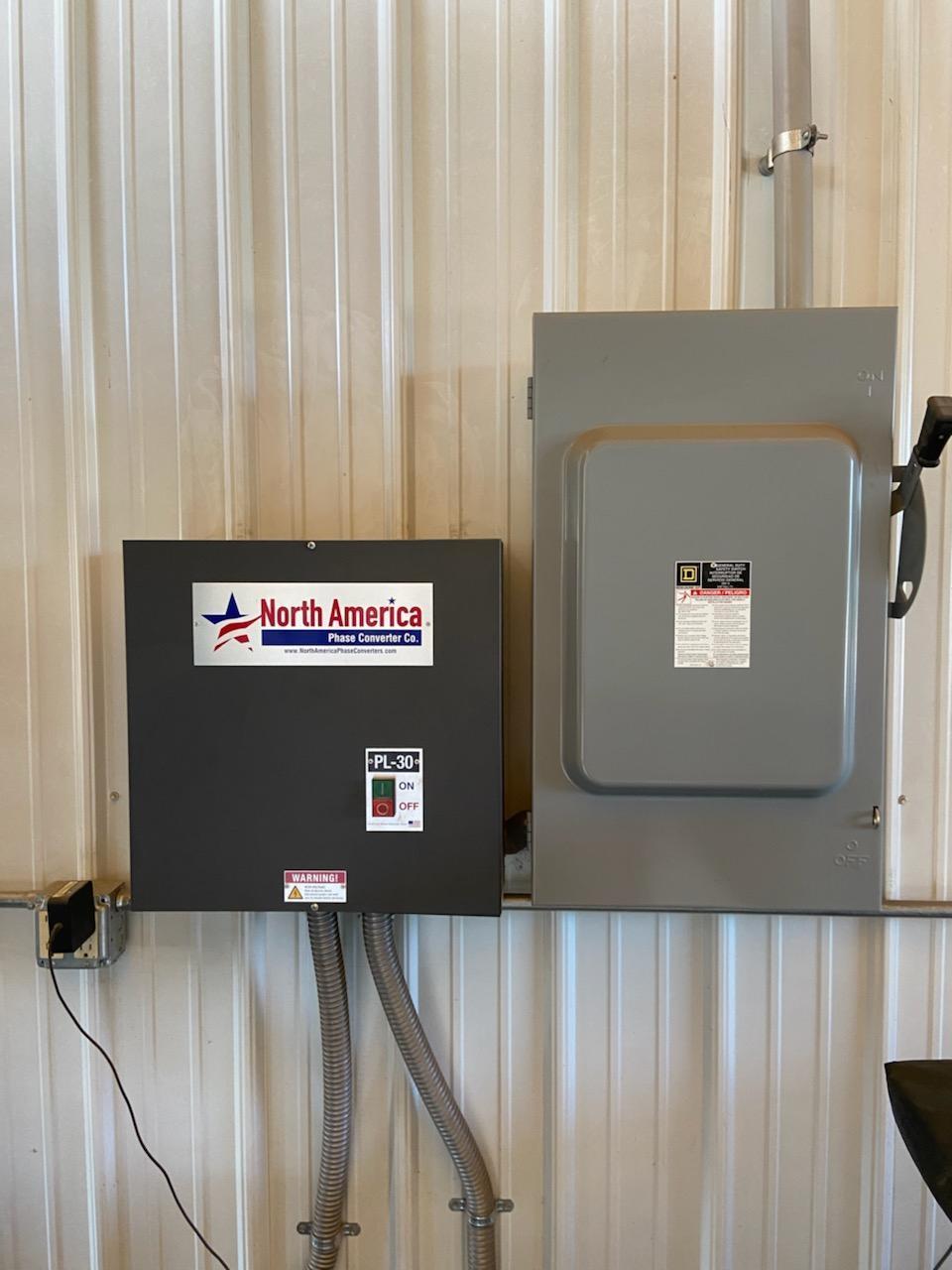

PHASE CONVERTER

SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY
IMMEDIATE, SUBJECT TO PRIOR SALE
CONDITION:
EXCELLENT
