Model H3000-12
Working area: 12500*3200mm (41.01*10.5ft)
Max. linkage speed: 80m/min
Max. acceleration: 0.8G
Table load bearing: 18000kg (full size 60mm/2.36in steel plate)
Machine overall dimensions: 18200*5600*2100mm (59.71*18.37*6.89ft)
Overall weight: 5690kg
Z axis travel: 135mm (5.31in)
Positioning accuracy: ±0.05mm/m
Repositioning accuracy: ±0.03mm/m
φ30mm roundness: ≤0.2mm
□30mm adjacent side dimension difference: ≤0.1mm
□190mm adjacent side dimension difference: ≤0.2mm
□190mm diagonal size difference: ≤0.2mm
Laser head: Bodor Genius

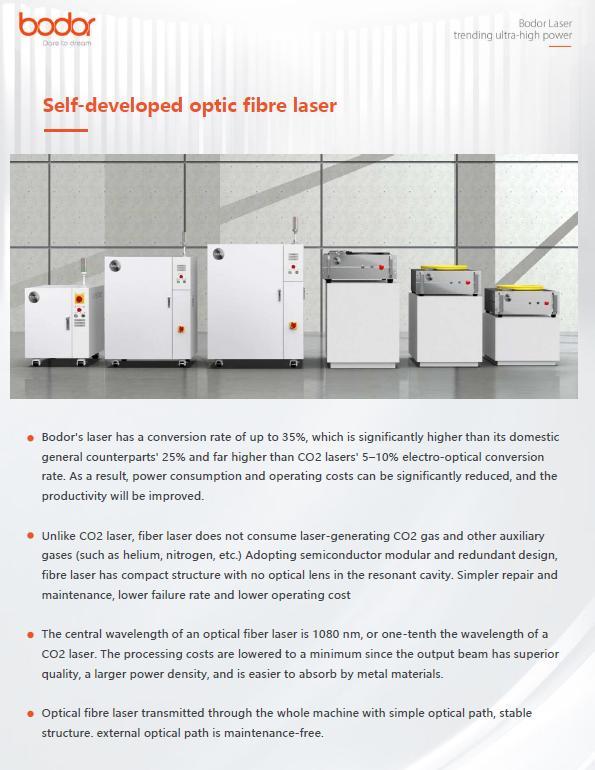

Laser source: Bodor Power
Gantry structure: High strength welding beam
Servo motor and driver: Bodor
Linear Rails & Rack: Bodor
Machine bed: Segmented type welded lathe bed
Control system: Bodor Thinker 3.0
File format: .dxf, .dwg, .plt, .lxd, .cnc, .txt, .gen
Total power capacity/current with 30kW laser source: 118.4kw/224.8A (Rated) 59.0kw·h (avg.)
Total power capacity/current with 60kW laser source: 229.5kw/435.8A (Rated) 108.9kw·h (avg.)
Total power capacity/current with 120kW laser source: 455.6kw/865.3A (Rated) 206.8kw·h (avg.)
Model
H3000-12
Laser power: 30kW 60kW 120kW
DDP price: $713,600 $937,000 $2,356,000
Working area: 12500*3200mm (41.01*10.5ft)
Items included:
- Bodor H3000-12 with 30kW/60kW/120kW Bodor Power laser source and supporting devices;
- 37kW compressor with ATH filters group (30kW only);
- Dedusting system with dual 8L dust collector;
- High-config workbench with dust removal channel;
- Flowbox;
- Cutting head filter;
- Spare cutting head;

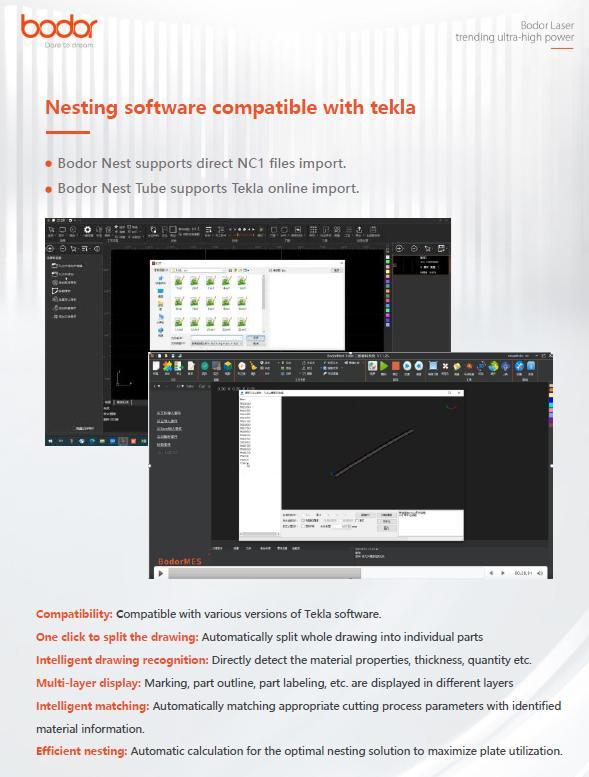

- Bodor Nest license;
- Consumables package;
- Installation, commissioning and training.
Recommended options:

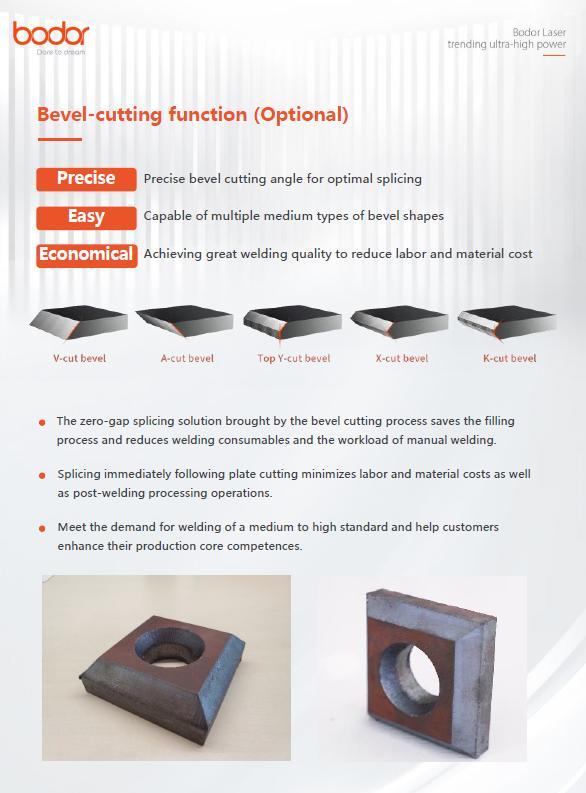

Bevel cutting
$45,000
Mix gas cutting module
$108,300
Extended working area, each 4000*3200mm
$49,200
Warranty terms
- 5 years warranty for core elements (laser source, cutting head, CNC system);
- 3 years warranty for whole machine;
- 1 year on-site labor
Delivery cycle
9 months from date of deposit
Payment term
50% as deposit;
50% upon delivery
