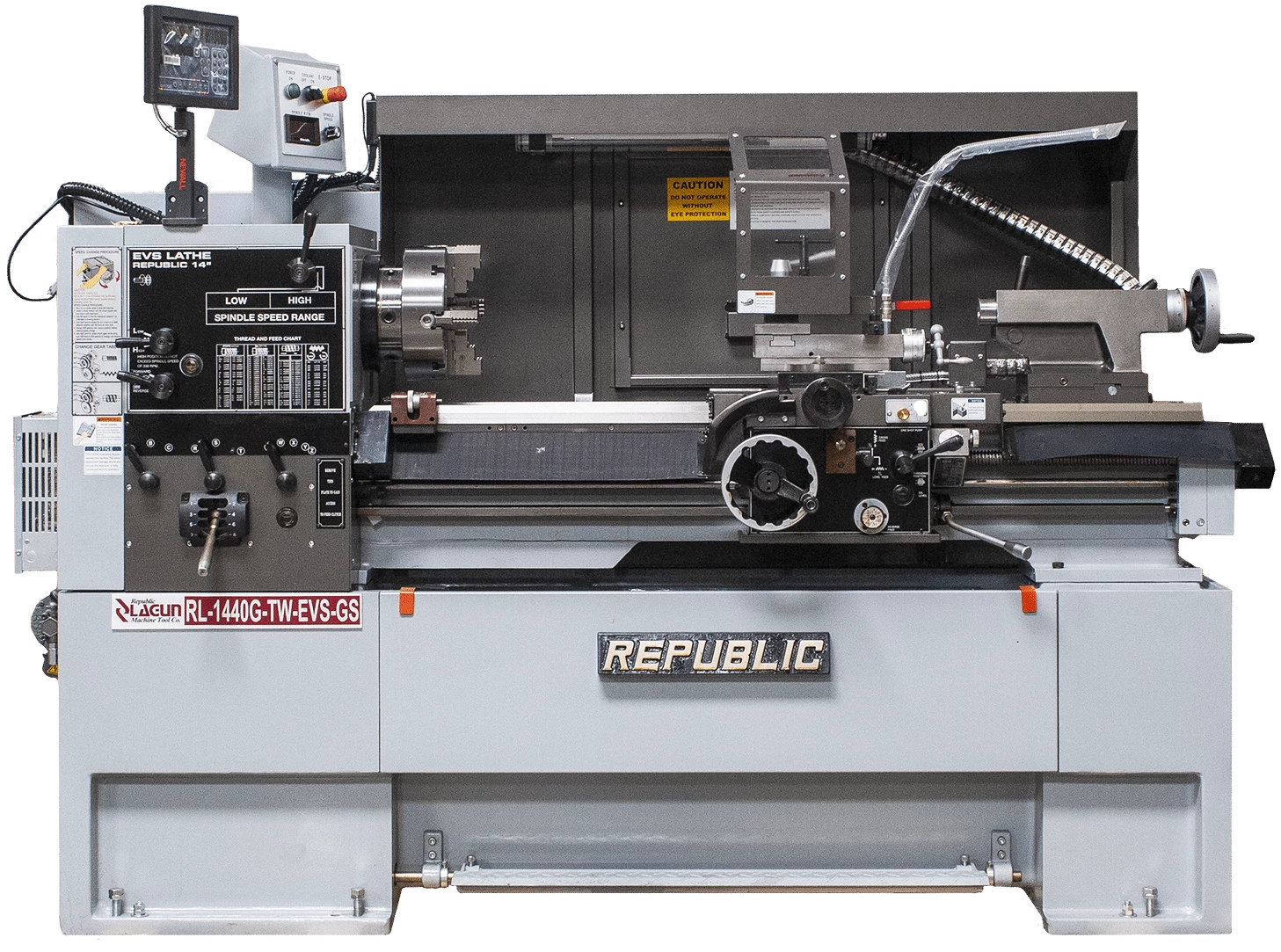

NEW REBUBLIC LAGUN AMERICAN GUNSMITHING LATHE, MODEL #: RL-1440-TW-EVS-GS

SPECIFICATIONS
FILES & ATTACHMENTS

Equipped With

SPECIFICATION:
CAPACITY:

HEIGHT OF CENTERS 7.08" (180 MM)

SWING OVER BED 14.17" (360 MM)

SWING IN GAP 20.98" (360 MM)

SWING OVER CROSS SLIDE 8" (212 MM)

DISTANCE BETWEEN CENTERS 40" (1,000 MM)

WIDTH OF BED 10.24" (260 MM)

GAP WIDTH IN FRONT OF FACEPLATE 5.31" (135 MM)
HEADSTOCK & MAIN SPINDLE:

SPINDLE NOSE, INTERNAL TAPER D1-6 / *A1-6

SPINDLE CENTER SLEEVE MT #6 X MT #4

SPINDLE BORE 2.07" (52.5 MM)

INFINITELY VARIABLE SPINDLE SPEEDS W/ MANUAL SHIFT HIGH/LOW RANGELOW: 20 ~ 400 RPM HIGH: 400 ~ 2,500 RPM
CARRIAGE:

LENGTH ON BED 20” (513 MM)

WIDTH OF BRIDGE 16.22" (412MM)

CROSS SLIDE TRAVEL 8.66” (220 MM)

TOP SLIDE TRAVEL 4.9” (125MM)

FEEDS & THREADS:

RANGE OF WHITWORTH THREADS 45 KINDS / 2 - 72 T.P.I.

RANGE OF METRIC THREADS 39 KINDS / 0.008" - 0.6" (0.2 - 14 MM)

KIND & RANGE OF D.P. 21 KINDS / 8 - 44 D.P.

KIND & RANGE OF M.P. 18 KINDS / 0.3 - 3.5 M.P.

LONGITUDINAL FEEDS 0.002" - 0.067” (0.05 - 1.7 MM)

CROSS FEEDS 0.001" - 0.034” (0.025 - 0.85 MM)

TAILSTOCK:

QUILL DIAMETER 2.5" (65 MM)

QUILL CENTER MT #4

QUILL TRAVEL 6.5" (165 MM)

MOTOR:
MAIN SPINDLE AC 5 HP (3.7 KW), INVERTER

COOLANT PUMP 1/8 HP (0.1 KW)

FORCED LUBRICATION FOR HEADSTOCK 1/4 HP (0.18 KW)

PHYSICAL:

NET WEIGHT 2,976 LBS (1,350 KGS)

GROSS WEIGHT 3,240 LBS (1,470 KGS)

LENGTH PACKED 89.4" (2,270 MM)

WIDTH PACKED 44" (1,120 MM)

HEIGHT PACKED 74.8" (1,900 MM)
FEATURES:

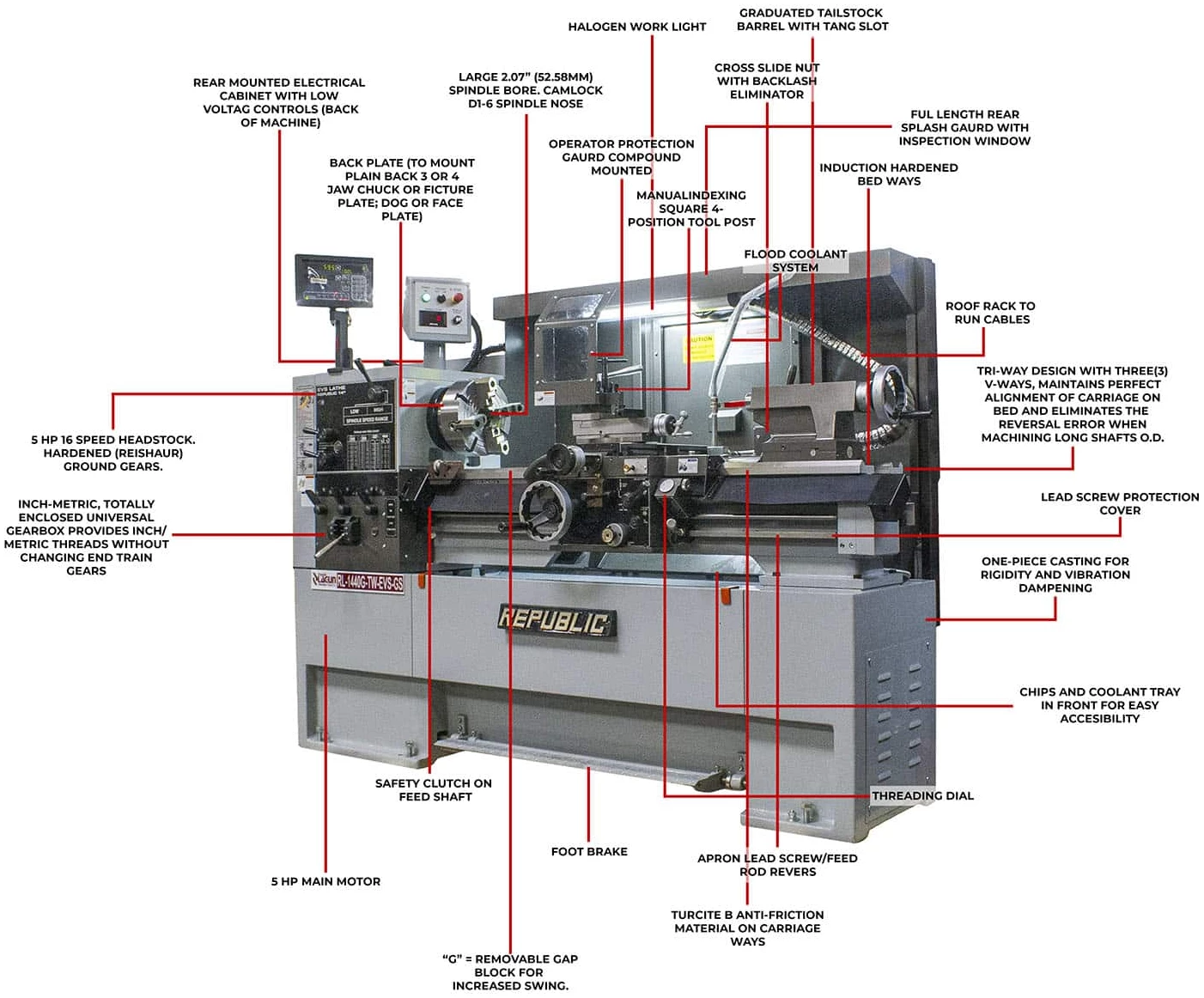

HEADSTOCK:

• HEAVY DUTY GEARED HEAD WITH FORGED ALLOY STEEL SPINDLE (DYNAMICALLY BALANCED) MOUNTED ON THREE TIMKEN® TAPER ROLLER BEARINGS - USING TWO TAPER ADJUSTABLE ROLLER BEARINGS AND ONE STRAIGHT ROLLER BEARING. (1)

• ALL GEARS AND SHAFTS ARE HARDENED AND REISHAUER GROUND AND SUPPORTED BY BEARINGS. (2)

• LUBRICATION: HEAD LUBRICATED BY COLD AND CLEAN OIL FROM A PRESSURE PUMP LOCATED IN THE LATHE BASE (NOT AN OIL BATH HEAD).

• SPEEDS: 16 SPEEDS WITH A SINGLE SPEED MOTOR AND CONSTANT HORSEPOWER IN ALL GEAR RANGES.

• SPINDLE: HEAVY DUTY CAMLOCK SPINDLES, D1-6.

UNIVERSAL GEAR BOX:

• INCH/METRIC TOTALLY ENCLOSED UNIVERSAL GEARBOX PROVIDES OF INCH & METRIC THREADS WITHOUT CHANGING END TRAIN GEARS- TO SAVE TIME.

• GEARS ARE HARDENED-SHAFTS TURN ON ANTI-FRICTION BEARINGS-MECHANISM RUNS IN OIL BATH.

• SEPARATE ROD FOR POWER FEEDS - LEADSCREW IS USED FOR THREAD CUTTING ONLY.

• CLUTCH IN APRON AND SHEAR PIN IN LEAD SCREW PROTECT AGAINST OVERLOAD.

• THREAD AND FEED CHART FOR INCH & METRIC FEED.

• CENTRALIZED PUSH BUTTON CONTROLS WITH E-STOP AND SPINDLE JOG.
CARRIAGE & CROSS SLIDE:

• ON TOP SURFACE OF CROSS SLIDE WE HAVE 2 E/A “T” SLOTS TO EASILY MOUNT ACCESSORIES.

• DUAL MICROMETER DIALS (INCH & METRIC) WITH DIRECT READINGS. FOR CROSS AND COMPOUND FEEDS. IMMEDIATE CHANGE-OVER FROM INCH TO METRIC READINGS THROUGH DIAL WINDOW.

• CARRIAGE WITH TURCITE® MATERIAL ON THE SLIDING SURFACES, TO ELIMINATE “STICK SLIP” AND DAMPEN CUTTING VIBRATIONS.

• ANTI-FLOAT DESIGN, BACKLASH ELIMINATOR FITTED IN CROSS SLIDE NUT.

• SAFETY CLUTCH AT FEED SHAFT.

• ONE SHOT LUBRICATION IN CARRIAGE & TOP SLIDE.

APRON:

• FORWARD/REVERSE, ON/OFF SPINDLE CONTROL PROVIDED BY GATED LEVER AT APRON.

• PRESSURE ONE SHOT LUBE FOR CARRIAGE AND CROSS SLIDE.

• CROSS LEAD SCREW WITH BACKLASH ELIMINATOR.

COMPOUND:

• T-SLOTTED FOR EASY TOOL HOLDER MOUNT. FEATURES TAPERED GIBS AND INCH/METRIC DIALS. SWIVEL WITH GRADUATED DEGREE MARKS FOR QUICK REFERENCE.
BED:

• TRI-V WAY (TW) BED DESIGN.

• ULTRA-RIGID, MEEHANITE CASTING MOUNTED ON CAST IRON BASE.

• INDUCTION HARDENED AND PRECISION GROUND BED WAYS. MINIMUM HR-70. • PROVIDES PERFECT ALIGNMENT AND PREVENTS VIBRATIONS.

• GAP BED DESIGN
FLOOD COOLANT SYSTEM:
• CHIP & COOLANT TRAY (FRONTAL REMOVAL)
ELECTRICS:

• ALLEN BRADLEY ELECTRICS (OPTIONAL)
• 3/60/220 VOLTS (STD)

• OTHER THAN 220V (OPT)
SAFETY FEATURES:

• LOW VOLTAGE CONTROLS

• NYLON SAFETY GEARS IN END TRAIN

• SHEAR PIN IN LEADSCREW

• FEED ROD WITH SLIP CLUTCH

• FULL LENGTH FOOT BRAKE

SAFETY GUARDING:

• REPUBLIC-LAGUN HAS AVAILABLE CERTAIN SAFETY SHIELDS AND GUARDS APPLICABLE TO OUR MACHINES THAT WE BELIEVE WILL MEET THE INTENT OF OSHA AND MAY BE APPROPRIATE FOR YOUR APPLICATION.

◦ CHUCK GUARD WITH SAFETY LIMIT SWITCH.
◦ COMPOUND PROTECTION GUARD.

◦ SAFETY GUARD TO COVER “LEADSCREW” AND “FEED ROD BAR”.

◦ REAR SPLASH GUARD: WITH BUILT IN WORK LIGHT ELIMINATING GLARE TO THE OPERATORS.

◦ INCORPORATED TO THE REAR-GUARD ROOF IS THE “CABLE RACK” THAT WILL KEEP ALL CABLES RUNNING ABOVE THE CHIP AND COOLANT AREA PREVENTING ANY CONTAMINATION.

◦ ALSO, THE REAR GUARD HAS IN THE MIDDLE AN EASY TO REMOVE INSPECTION WINDOW.

ELECTRONIC VARIABLE SPEED (EVS):

• INFINITELY VARIABLE SPINDLE SPEEDS 20~2,500 (OR 3,000) RPM IN TWO SPEED RANGES.

RPM READOUT:

• HEADSTOCK MOUNTED RPM READOUT WITH SPINDLE SPEED CONTROL DIAL. STANDARD ON ALL EVS LATHES.
STANDARD ACCESSORIES:

• CHIP-PAN IN FRONT PULL-OUT WHICH IS MOST CONVENIENT FOR THE OPERATOR

• FOOT BRAKE FOR IMMEDIATE STOP

• DELUXE REAR-TYPE, EXTRA TALL, SPLASH GUARD WITH BUILT-IN WORK LIGHT REAR ACCESS & SUPPORTS THE CABLE CARRIER

• LEFT HAND WHEEL GUARD

• CABLE CARRIER PROTECTS CABLES

• 4 WAY TOOL POST WITH PROTECTION GUARD (WITHOUT LIMIT SWITCH) COMPOUND PROTECTOR • ROLLER TYPE LEAD SCREW COVER

• BUILT-IN HALOGEN WORK LIGHT ALONG TOP REAR SPLASH GUARD

• TOOL SET & BOX, MANUALS, & PARTS LIST

• 6 PIECE LEVELING PADS

• THREADING DIAL

• DUAL INCH/METRIC DIALS

• 3 "V" BED WAY PREVENTS TWISTING FOR PERFECT ALIGNMENT, ELIMINATING REVERSAL ERROR

• ELECTRICS 220V/3PH/60HZ ELECTRONIC VARIABLE SPEED (EVS) OR 220V SINGLE PHASE

• CARRIAGE MICRO STOP SET

• COMPLETE COOLANT SYSTEM

• CHUCK GUARD WITH LIMIT SWITCH (ADDED SAFETY FEATURE)

• SWIVEL COVER FOR SPINDLE SCREWS- SAFETY COVER FOR SPIDER

• SPIDER TO SUPPORT AND CENTER BARREL IN SPINDLE

• OPERATOR'S MANUAL & PARTS LIST
OPTIONAL FREATURES:
SPECIAL ELECTRICS (NET):
* OPTIONAL 440/480V

• PRICE ON REQUEST
* UL-508A INDUSTRIAL CONTROL PANEL: $4,990.00
* NFPA-79 ELECTRICS CERTIFICATION

• PRICE ON REQUEST
OPTIONAL ACCESSORIES:
STEADY RESTS:
* STEADY REST (6” CAPACITY) W/ ROLLERS FOR 14" LATHE: $1,044.00
* FOLLOW REST (4” CAPACITY) WITH BRONZE TIPS FOR 14" LATHE: $834.00
DIGITAL READ-OUTS (DRO):
* 2-AXIS FAGOR 40I DRO FOR 14" X 40" LATHE (10 X 40 TRAVELS): $3,307.00
* 2-AXIS ACU-RITE DRO203 FOR 14"/16" X 40" LATHE: $3,902.00
* 2-AXIS NEWALL NMS800 DRO FOR 14 X 40 LATHE: $4,429.00
QUICK CHANGE TOOL POSTS:
* QUICK CHANGE TOOL HOLDER SET CXA #3

• 5 PC.: 1 TOOL POST & 4 HOLDER

• CAPACITY ¾”: $1,837.00
* QUICK CHANGE TOOL HOLDER SET CXA #3

• 7PC. (1 TOOL POST & 6 HOLDERS)
• CAPACITY ¾”: $2,464.00
3 JAW CHUCKS:
* 8" 3 JAW CHUCK D 1-6, DIRECT MOUNT (SEMI-STEEL): $1,885.00
* 10" 3 JAW CHUCK D 1-6, DIRECT MOUNT (SEMI-STEEL): $2,286.00
* 12" 3 JAW CHUCK D 1-6, DIRECT MOUNT (SEMI-STEEL): $2,942.00
* 8" 3 JAW CHUCK D 1-6, DIRECT MOUNT (STEEL BODY): $2,212.00
* 10" 3 JAW CHUCK D 1-6, DIRECT MOUNT (STEEL BODY): $2,434.00
* 12" 3 JAW CHUCK D 1-6, DIRECT MOUNT (STEEL BODY): $3,146.00
4 JAW CHUCKS:
* 10" 4 JAW CHUCK D 1-6, DIRECT MOUNT (SEMI-STEEL): $2,137.00
* 12" 4 JAW CHUCK D 1-6, DIRECT MOUNT (SEMI-STEEL): $2,465.00
* 10" 4 JAW CHUCK D 1-6, DIRECT MOUNT (STEEL BODY): $2,664.00
* 12" 4 JAW CHUCK D 1-6, DIRECT MOUNT (STEEL BODY): $3,616.00
OTHER ACCESSORIES:
* COLLET SET, 1/16" TO 7/8" CAP IN 32" INCREMENTS

• PRICE ON REQUEST
* COLLETS 5C ; 16 PIECES, 1/8" TO 1 1/16" CAPACITY

• PRICE ON REQUEST
* HANDWHEEL FRONT TYPE COLLET CHUCK, 5C, D1-6 (SPINDLE NOSE MOUNTED)

• PRICE ON REQUEST
* HANDWHEEL FRONT TYPE COLLET CHUCK, 16C, D1-6 (SPINDLE NOSE MOUNTED)

• PRICE ON REQUEST
* COLLET CLOSER, 5C LEVER TYPE PRODUCTION (UP TO 1 1/16” CAP), D1-6 FOR 14" OR 16"

• PRICE ON REQUEST
* CARRIAGE STOP - 5 POSITION BED W/ MICROMETER STOP FOR 14" OR 16" LATHE

• PRICE ON REQUEST
* TAPER ATTACHMENT, TELESCOPIC TYPE

• TRAVEL: 7" (185 MM) - 10°: $2,247.00
HYDRAULIC COPY ATTACHMENT:
* HYDRAULIC TAPER & COPYING SYSTEM (FULL CENTER DISTANCE RANGE)

• “HYDRAULIC TAPER” & “FULL LENGTH PROFILE CUTTER” WILL NEED TO FOLLOW A TEMPLATE

• NOTE: EASY TO USE & WILL NOT WEAR OUT WITH USE AS A MECHANICAL TAPER ATTACHMENT

• IDEAL FOR API THREADING ETC. (ASK FOR VIDEO SHOWING APPLICATION)

• PRICE ON REQUEST
TRANSPORTATION (NET):
* WOOD SKID W/ MACHINE WRAPPED IN PLASTIC. (NET): $450.00
